P&P Parts & Parts GmbH

Gearbox bearing compatible with Access AMS 4.3 SM AMS 4.3 SX AMS 4.3 Supermoto EFI


Item number PPS03642

Referenz: OEM Herstellernummer

EUR 37.99 *
Content 1 piece
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "eee0eaea29453643a9b465d8ace6df0d"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "eee0eaea29453643a9b465d8ace6df0d"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('676deab4e6923', 'paypal', 'buynow', 'rect', 'blue'); }); } else { renderPayPalButtons('676deab4e6923', 'paypal', 'buynow', 'rect', 'blue'); }
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.

Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

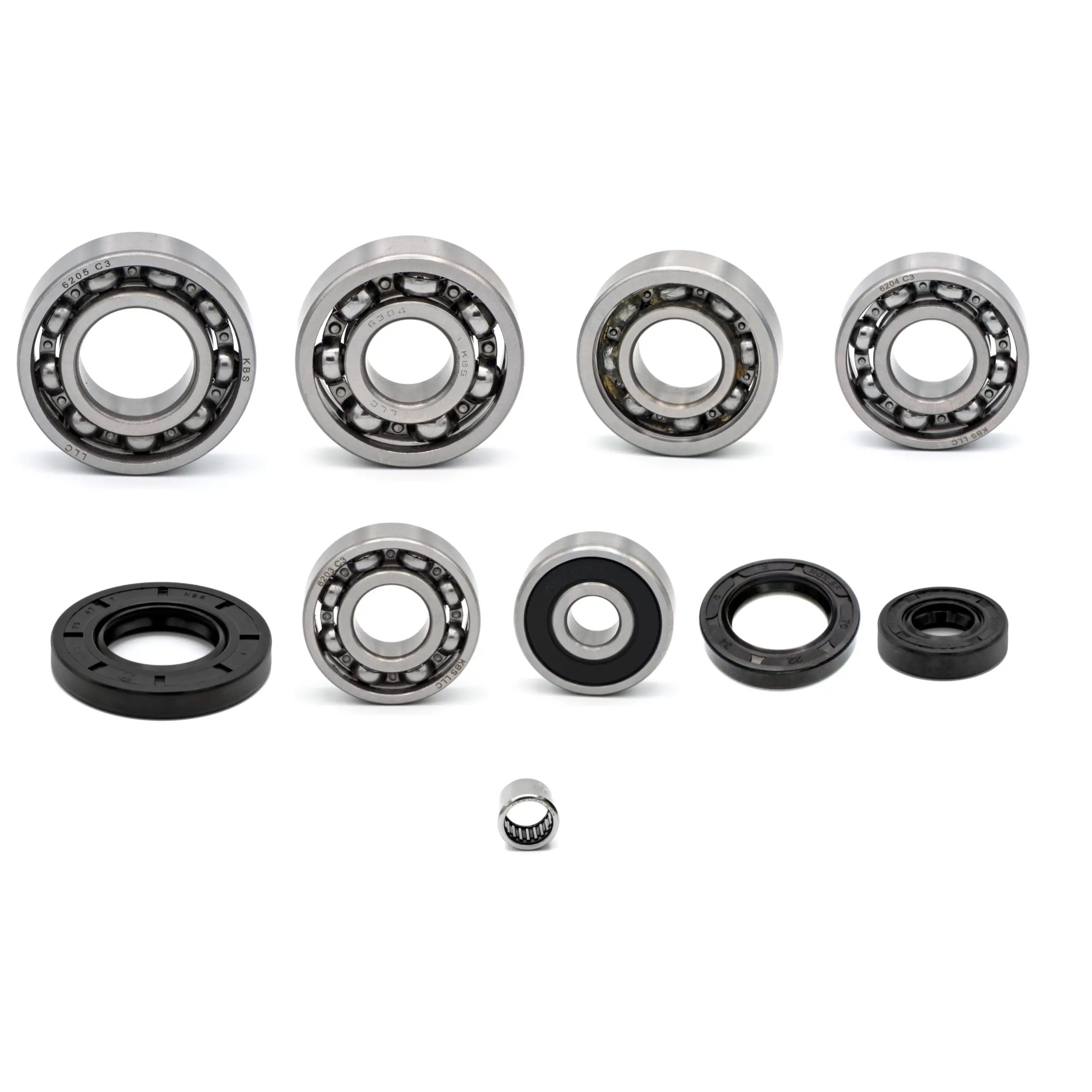

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: ACC-95100-T6203)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: AWA-1PE40QMB-003)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: ACC-95100-T6205)
1x deep groove ball bearing 20x52x15mm transmission (part numbers: ACC-95100-T6304)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: ACC-95100-T6301LLU)
1x deep groove ball bearing 22x50x14mm transmission (part numbers: ACC-95100-TCSB2/22, ACC-95100-T62/22)
1x oil seal 14x28x7mm transmission (part numbers: DAE-91206-BA6-0131)
1x oil seal 25x47x7mm transmission (part numbers: ACC-96100-254707)
1x oil seal 22x34x6mm transmission (part numbers: ACC-96100-223407)
1x drawn cup needle roller bearing 20x26x20mm transmission (part numbers: ACC-95200-HK2020)


Compatible with
AMS 4.3 SM 430
AMS 4.3 SX 430
AMS 4.3 Supermoto EFI 430
XTREME 300


Item ID 15301
Content 1 piece
Weight 668 g
Dimensions 100×75×25mm
Manufacturing country Germany
Condition New
Manufacturer P&P Parts & Parts GmbH
