P&P Parts & Parts GmbH
Gearbox bearing compatible with Access AMS 4.38 SM XTREME
Item number PPS03638
Referenz: OEM Herstellernummer
EUR 21.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "0228eb9bae87fbfd473a0f7d6bb60a81");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "0228eb9bae87fbfd473a0f7d6bb60a81");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676de6a297bfc', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676de6a297bfc', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

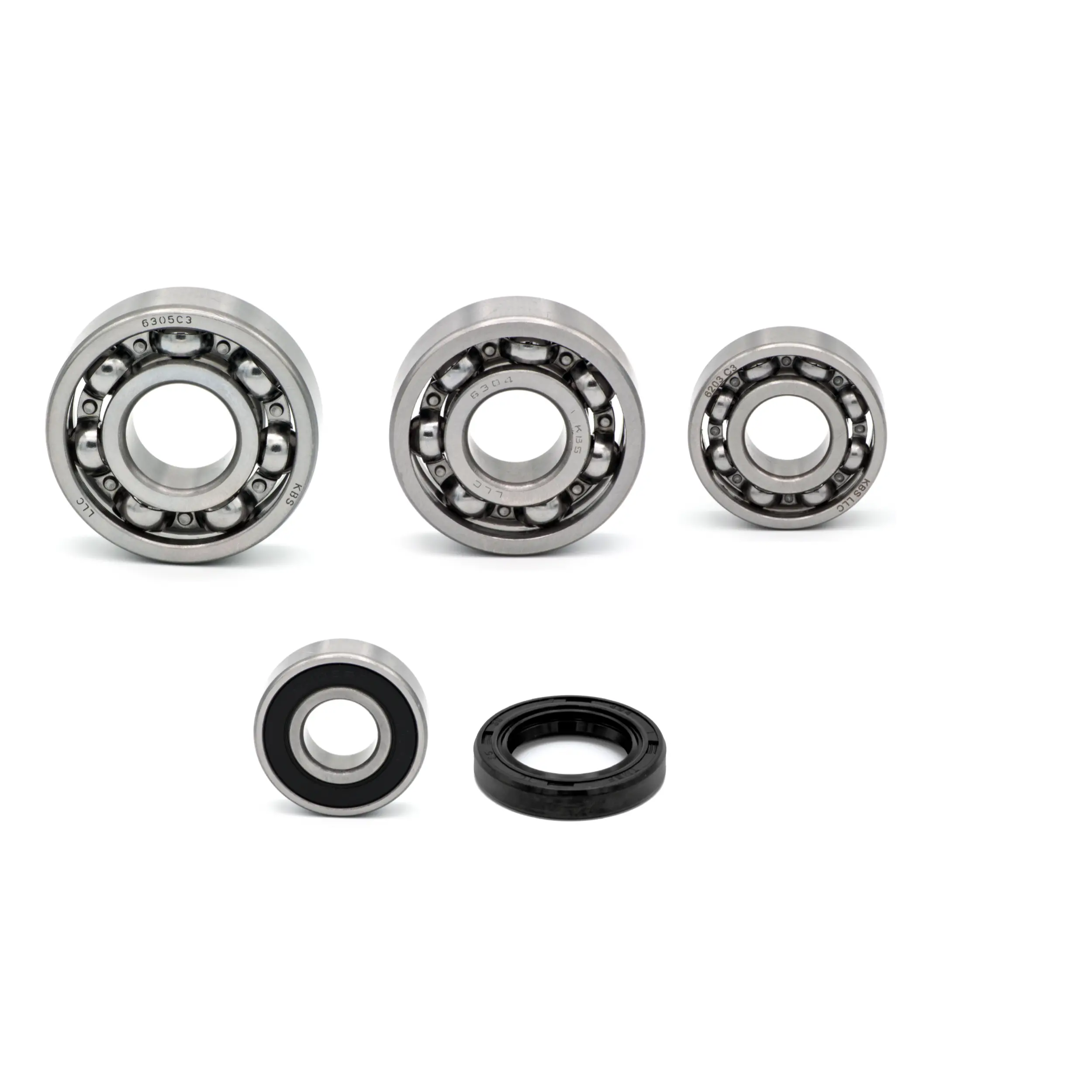

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: ACC-95100-T6203)
1x deep groove ball bearing 20x52x15mm transmission (part numbers: ACC-95100-T6304)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: ACC-95100-6305LUC3)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: ACC-95100-6203LUCM)
1x oil seal 25x38x7mm transmission (part numbers: ACC-96100-253806-1)
Compatible with
AMS 4.38 SM 480
XTREME 480
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: ACC-95100-T6203)
1x deep groove ball bearing 20x52x15mm transmission (part numbers: ACC-95100-T6304)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: ACC-95100-6305LUC3)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: ACC-95100-6203LUCM)
1x oil seal 25x38x7mm transmission (part numbers: ACC-96100-253806-1)
Compatible with
AMS 4.38 SM 480
XTREME 480
| Item ID | 15297 |
| Content | 1 piece |
| Weight | 515 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
Damit die Montage problemlos abläuft, haben wir für Dich auf dieser Unterseite einige Montagehinweise zusammengefasst.
Wir versprechen dir den bestmöglichen Service, damit du den für dich passenden Artikel findest!
Dazu stehen wir dir vor dem Kauf für etwaige Fragen zur Verfügung. Schreib uns einfach, wenn du dir unser bist, ob etwas bei deinem Fahrzeug- oder Motortyp passt.
Auch nach dem Erhalt der Ware helfen wir dir gerne weiter. Wenn etwas mal nicht passen sollte, nehme gerne Kontakt auf und wir finden gemeinsam eine unkomplizierte Lösung
