P&P Parts & Parts GmbH
Gearbox bearing compatible with Aeon ELITE URBAN-125
Item number PPS03803
Referenz: OEM Herstellernummer
EUR 32.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "3e3edf13e06f838a3af9ba7e25ef1555");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "3e3edf13e06f838a3af9ba7e25ef1555");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676faf7363651', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676faf7363651', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

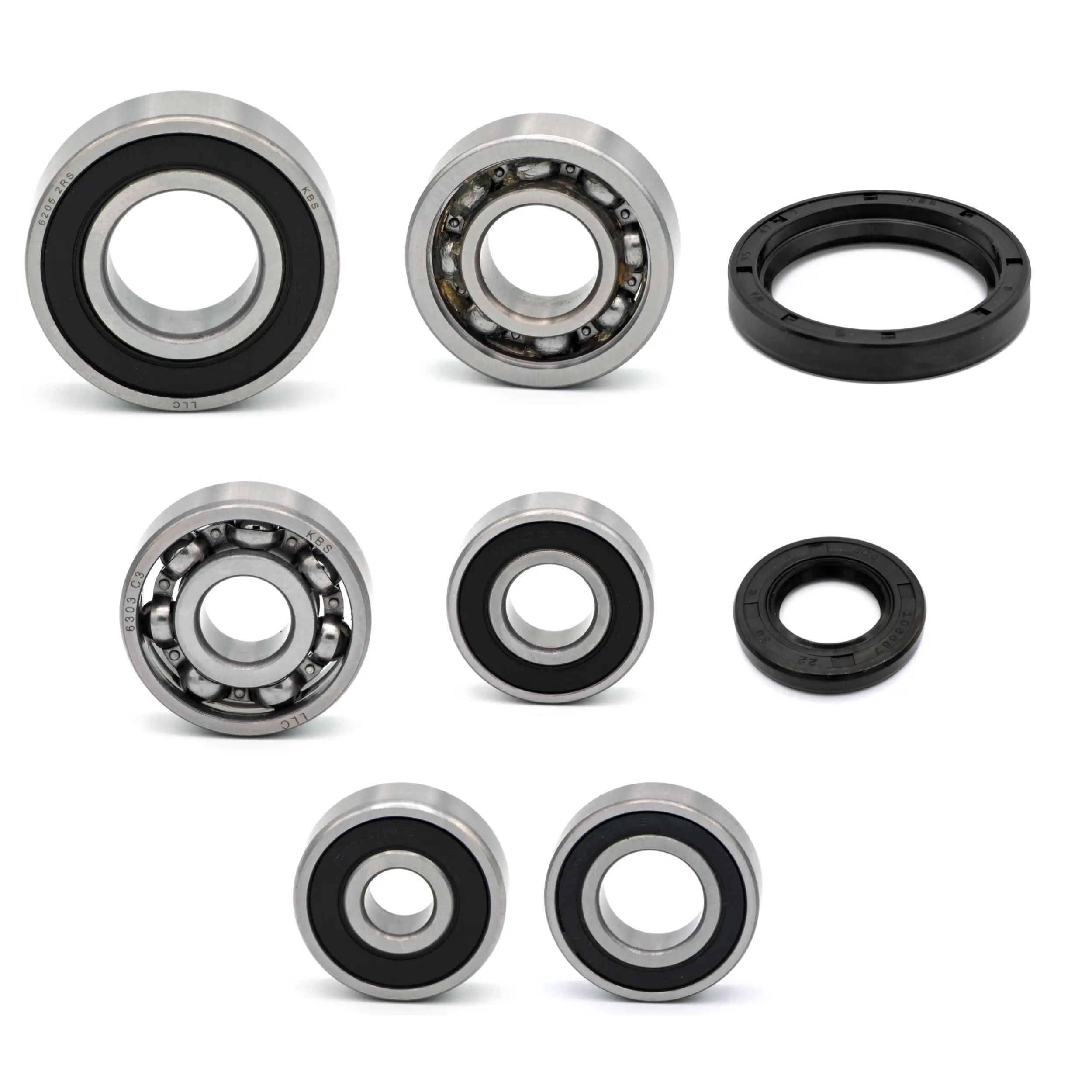

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x47x14mm transmission (part numbers: AEO-96100-63030-00000)
1x deep groove ball bearing 17x35x10mm transmission (part numbers: AEO-96100-6003LU)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: AEO-96100-CSB203A-JR2C3)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: AEO-96100-6205-LLUC3/ZG)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: AEO-96100-CSB301-JR200)
1x deep groove ball bearing 22x50x14mm transmission (part numbers: AEO-96100-CSB2-22CC3)
1x oil seal 22x39x6mm transmission (part numbers: AEO-96500-223906FKM)
1x oil seal 35x47x7mm transmission (part numbers: AEO-96500-354707A7271)
Compatible with
ELITE 125
URBAN-125
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x47x14mm transmission (part numbers: AEO-96100-63030-00000)
1x deep groove ball bearing 17x35x10mm transmission (part numbers: AEO-96100-6003LU)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: AEO-96100-CSB203A-JR2C3)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: AEO-96100-6205-LLUC3/ZG)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: AEO-96100-CSB301-JR200)
1x deep groove ball bearing 22x50x14mm transmission (part numbers: AEO-96100-CSB2-22CC3)
1x oil seal 22x39x6mm transmission (part numbers: AEO-96500-223906FKM)
1x oil seal 35x47x7mm transmission (part numbers: AEO-96500-354707A7271)
Compatible with
ELITE 125
URBAN-125
| Item ID | 15890 |
| Content | 1 piece |
| Weight | 554 g |
| Dimensions | 5×5×5mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
