P&P Parts & Parts GmbH
Gearbox bearing compatible with Daelim S300 S300 E4 XQ 250
Item number PPS03724
Referenz: OEM Herstellernummer
EUR 30.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6a99910ca5d09b1db081a9653b78b0d9");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6a99910ca5d09b1db081a9653b78b0d9");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676faa7430fe5', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676faa7430fe5', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

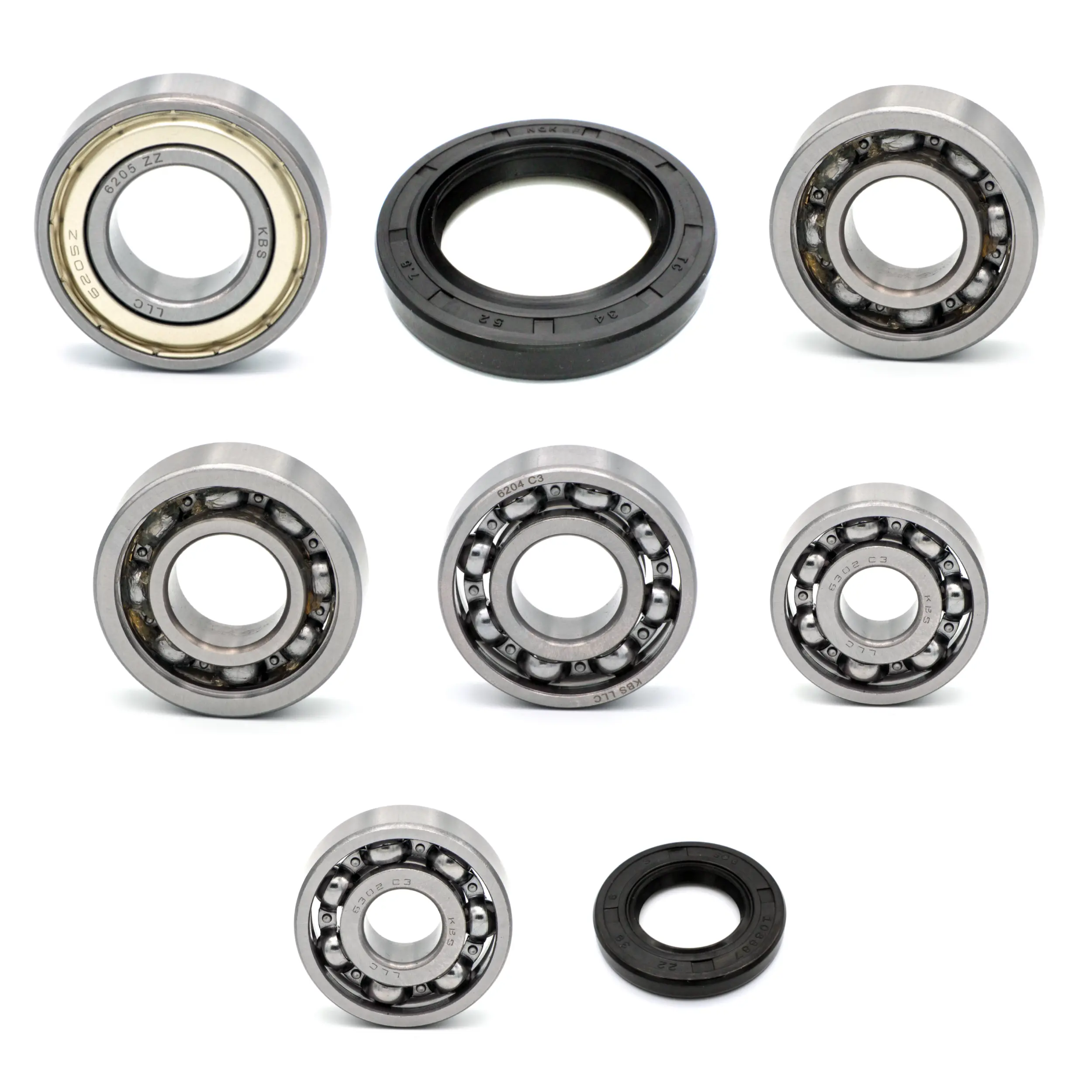

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: DAE-S6100-62040-00)
2x deep groove ball bearing 15x42x13mm transmission (part numbers: DAE-91001-SZ2-0000-M1)
2x deep groove ball bearing 22x50x14mm transmission (part numbers: DAE-91002-SZ2-0000-M1)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: DAE-91009-SAB-0000)
1x oil seal 22x39x6mm transmission (part numbers: DAE-91203-SZ2-0000)
1x oil seal 34x52x7,5mm transmission (part numbers: DAE-91255-SAB-0000)
Compatible with
S300 300 2017
S300 E4 300 2018
XQ 250 250 2019
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: DAE-S6100-62040-00)
2x deep groove ball bearing 15x42x13mm transmission (part numbers: DAE-91001-SZ2-0000-M1)
2x deep groove ball bearing 22x50x14mm transmission (part numbers: DAE-91002-SZ2-0000-M1)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: DAE-91009-SAB-0000)
1x oil seal 22x39x6mm transmission (part numbers: DAE-91203-SZ2-0000)
1x oil seal 34x52x7,5mm transmission (part numbers: DAE-91255-SAB-0000)
Compatible with
S300 300 2017
S300 E4 300 2018
XQ 250 250 2019
| Item ID | 15604 |
| Content | 1 piece |
| Weight | 657 g |
| Dimensions | 5×5×5mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
