P&P Parts & Parts GmbH
Gearbox bearing compatible with derbi ATLANTIS 100 CC ATLANTIS 50 CC ATLANTIS LC 50 CC HUNTER 50 CC
Item number PPS00116
Referenz: OEM Herstellernummer
EUR 19.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "717e160ae9352cbc097ead7d36f8b76e");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "717e160ae9352cbc097ead7d36f8b76e");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa4f3e0b6f', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa4f3e0b6f', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

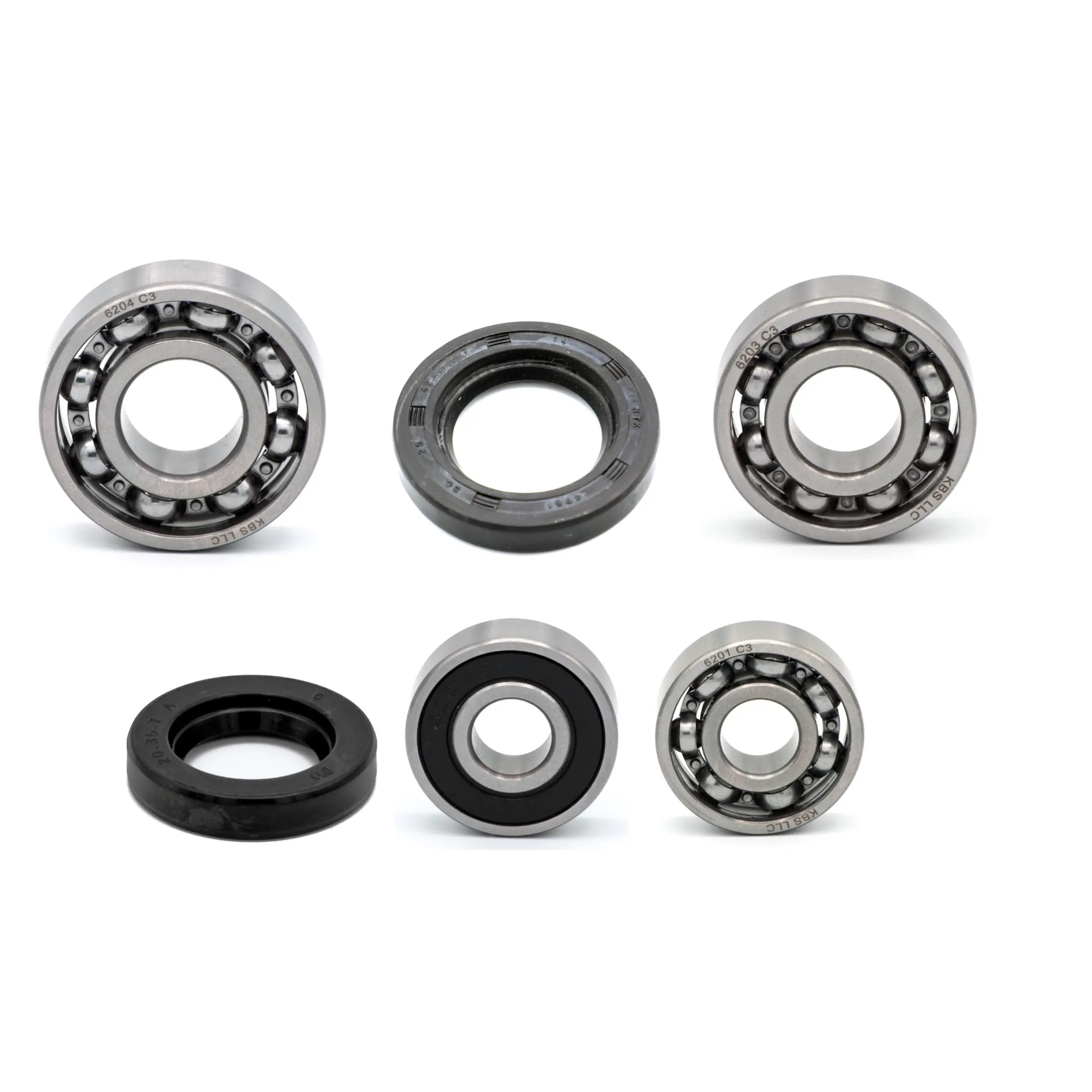

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm secondary shaft (part numbers: 00057120300 )
1x oil seal 25x42x7mm seconadry shaft (part numbers: 00G02401381 )
1x deep groove ball bearing 12x32x10mm rear gear (part numbers: 00058020401 )
1x deep groove ball bearing 12x32x10mm primary shaft (part numbers: 00057020100 )
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 00057020400 )
1x oil seal 20x35x7mm primary shaft (part numbers: 00G02802471 )
Compatible with
DERBI
ATLANTIS 100 CC 100 2000-2001
ATLANTIS 50 CC 50 1999-2001
ATLANTIS LC 50 CC 50 1999-2001
HUNTER 50 CC 50 1996-1997
PADDOCK 50 CC 50 1998-1999
PREDATOR LC 50 CC 50 1998-2001
PREDATOR O2 50 CC 50 1998-2001
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm secondary shaft (part numbers: 00057120300 )
1x oil seal 25x42x7mm seconadry shaft (part numbers: 00G02401381 )
1x deep groove ball bearing 12x32x10mm rear gear (part numbers: 00058020401 )
1x deep groove ball bearing 12x32x10mm primary shaft (part numbers: 00057020100 )
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 00057020400 )
1x oil seal 20x35x7mm primary shaft (part numbers: 00G02802471 )
Compatible with
DERBI
ATLANTIS 100 CC 100 2000-2001
ATLANTIS 50 CC 50 1999-2001
ATLANTIS LC 50 CC 50 1999-2001
HUNTER 50 CC 50 1996-1997
PADDOCK 50 CC 50 1998-1999
PREDATOR LC 50 CC 50 1998-2001
PREDATOR O2 50 CC 50 1998-2001
| Item ID | 4884 |
| Content | 1 piece |
| Weight | 258 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
