P&P Parts & Parts GmbH
Gearbox bearing compatible with derbi ATLANTIS 50 CC 50CC EURO2 BOULEVARD 100 100 CC GP 1 50 CC
Item number PPS00117
Referenz: OEM Herstellernummer
EUR 13.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "0c81d3934d3af263378a7dd4496902f2");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "0c81d3934d3af263378a7dd4496902f2");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('678d65dfaf7a4', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('678d65dfaf7a4', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

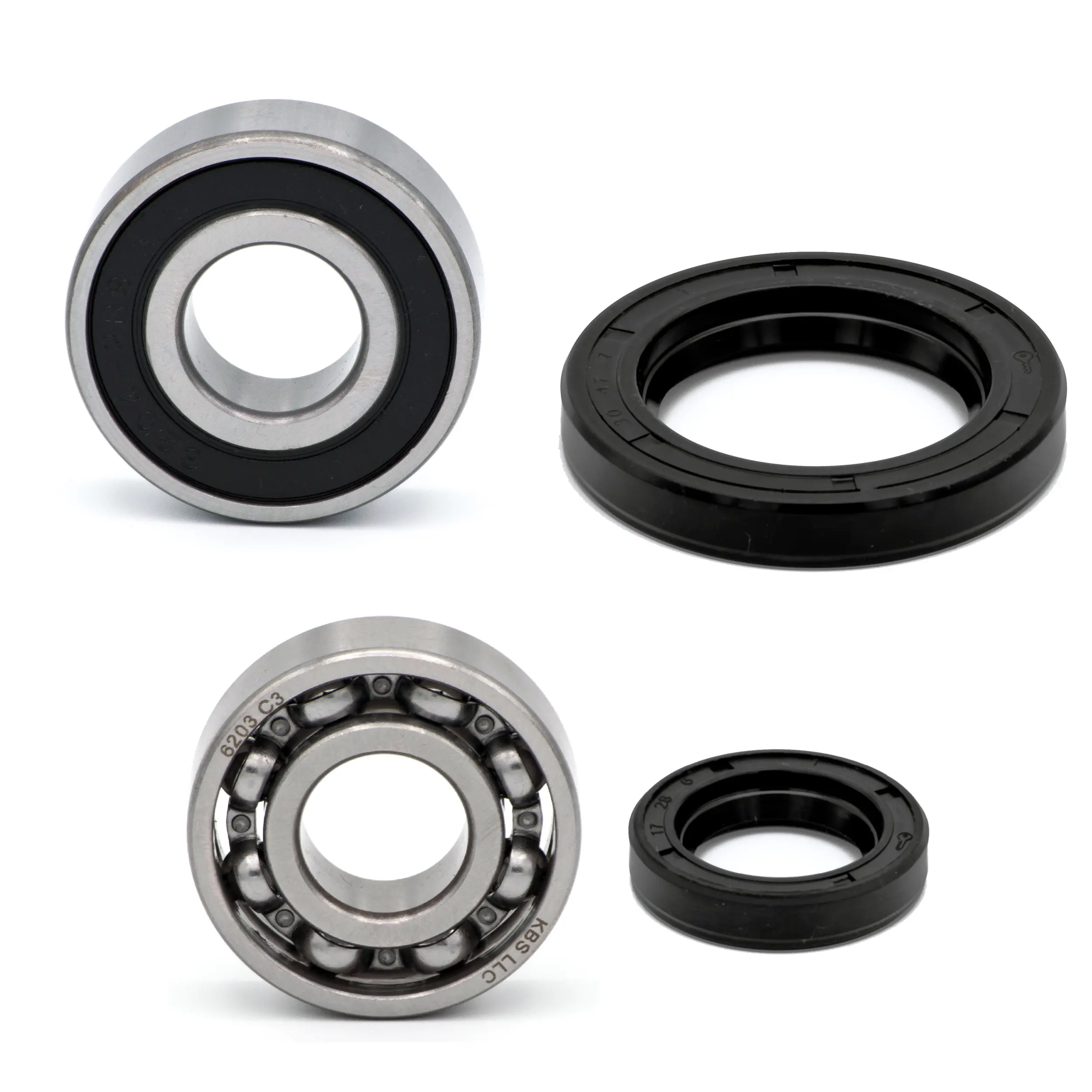

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 435363 )
1x oil seal 17x28x6mm transmission (part numbers: 480066 )
1x oil seal 30x47x7mm transmission (part numbers: 478498 )
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 434735 )
Compatible with
DERBI
ATLANTIS 50 CC 50CC EURO2 50 2007
BOULEVARD 100 100 CC 100 2010
BOULEVARD 50 50 CC EURO2 50 2009
BOULEVARD 50 CC 2T 50 2009-2012
BOULEVARD 50 CC 4T EU2 25 KM H 50 2009
BOULEVARD 50 CC VTHBR1A1A EURO 2 2T AC 50 2014
BOULEVARD 50 CC ZDPBP1A1A 2T AC 50 2014
GP 1 50 CC 50 2001-2003
GP1 50 50 CC EURO1 50 2003
GP1 50 50 CC EURO2 50 2003
GP1 50 OPEN 50 CC EURO2 50 2006
GP1 50 RACE RACE 50 CC EURO2 50 2005
SONAR 50 CC VTHLR1A1A 2T 50 2009
VARIANT SPORT 50 CC VTHSBA00 2T 50 2012
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 435363 )
1x oil seal 17x28x6mm transmission (part numbers: 480066 )
1x oil seal 30x47x7mm transmission (part numbers: 478498 )
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 434735 )
Compatible with
DERBI
ATLANTIS 50 CC 50CC EURO2 50 2007
BOULEVARD 100 100 CC 100 2010
BOULEVARD 50 50 CC EURO2 50 2009
BOULEVARD 50 CC 2T 50 2009-2012
BOULEVARD 50 CC 4T EU2 25 KM H 50 2009
BOULEVARD 50 CC VTHBR1A1A EURO 2 2T AC 50 2014
BOULEVARD 50 CC ZDPBP1A1A 2T AC 50 2014
GP 1 50 CC 50 2001-2003
GP1 50 50 CC EURO1 50 2003
GP1 50 50 CC EURO2 50 2003
GP1 50 OPEN 50 CC EURO2 50 2006
GP1 50 RACE RACE 50 CC EURO2 50 2005
SONAR 50 CC VTHLR1A1A 2T 50 2009
VARIANT SPORT 50 CC VTHSBA00 2T 50 2012
| Item ID | 4883 |
| Content | 1 piece |
| Weight | 182 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
