P&P Parts & Parts GmbH
Gearbox bearing compatible with derbi SENDA R X RACE 50 CC 2T EU2 SENDA SM DRD PRO 50 CC EU2
Item number PPS00118
Referenz: OEM Herstellernummer
EUR 12.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6fdbef9878aa94b5aa0d770d0312b747");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6fdbef9878aa94b5aa0d770d0312b747");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa548a8b2f', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa548a8b2f', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

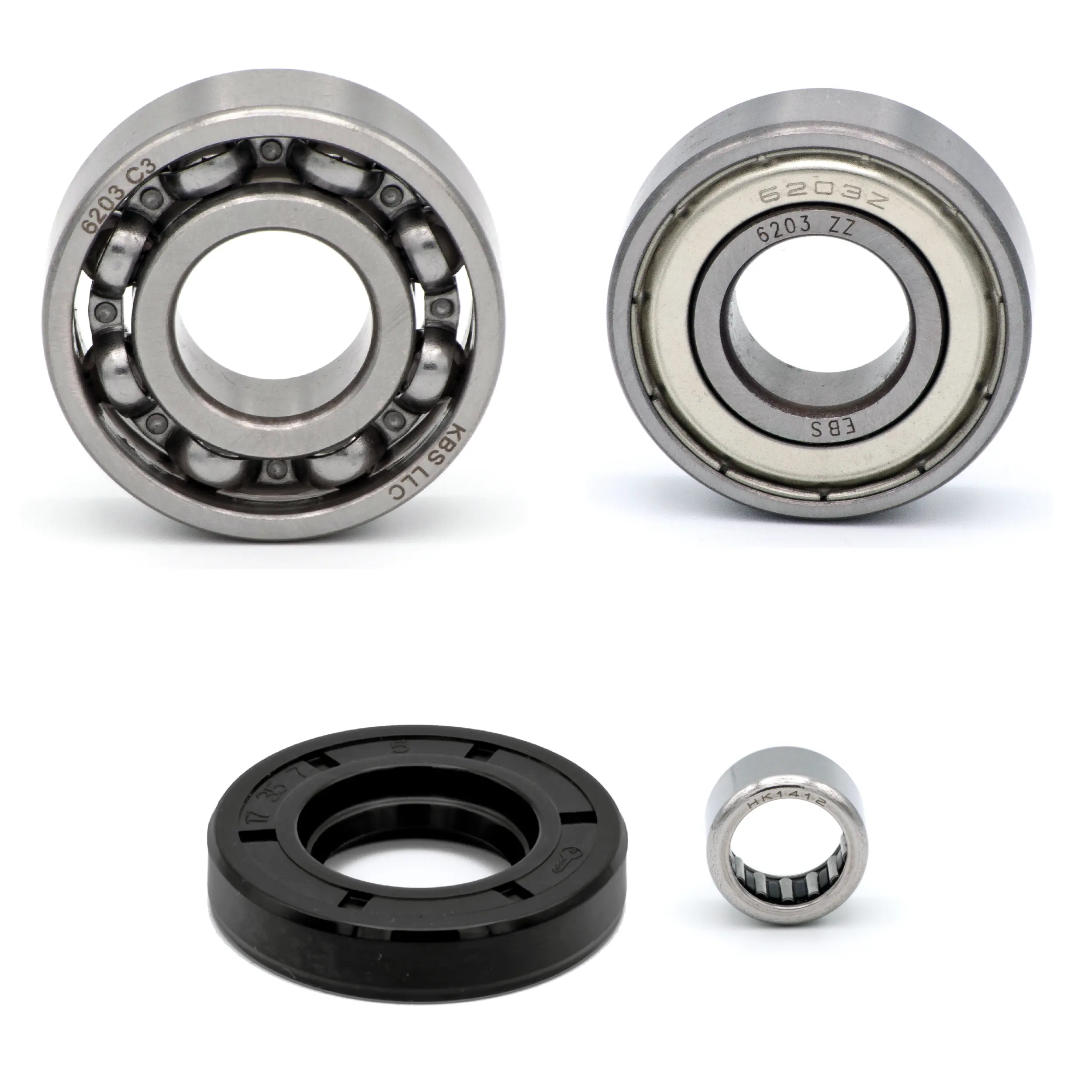

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm gear (part numbers: 847086 , ODN00057120300 )
1x deep groove ball bearing 17x40x12mm gear (part numbers: 847209 , ODN00058020301 )
1x oil seal 17x35x7mm gearbox (part numbers: 847019 , 00H02800401 )
1x drawn cup needle roller bearing 14x20x12mm gear (part numbers: 847211 , ODN00002028450 )
Compatible with
DERBI
SENDA R X RACE 50 CC 2T EU2 50 2010
SENDA R X RACE 50 CC VTHSR1D1A 2T LC 50 2008-2011
SENDA R X RACE 50 CC VTHSR1D1A EU2 50 2006-2009
SENDA R X RACE 50 CC VTHSR1E1A 2T LC 50 2008-2009
SENDA R X TREM 50 CC VTHSR1D1A 2T EU2 50 2010
SENDA R X TREM 50 CC VTHSR1D1A EU2 50 2005-2008
SENDA R X TREME 50 CC VTHSR1D1A 2T LC 50 2008-2011
SENDA R X TREME 50 CC VTHSR1E1A 2T LC 50 2008
SENDA R X TREME 50 CC VTHSR1F1A 2T LC 50 2008
SENDA SM DRD LIMITED EDITON 50 CC ZDPABB02 EURO 2 2T LC CHE 50 2012
SENDA SM DRD LIMITED EDITON 50 CC ZDPABB02 EURO 2 2T LC FRA 50 2012
SENDA SM DRD PRO 50 CC EU2 50 2005-2011
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC 50 2011
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC BEL 50 2008
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC ESP 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC FRA 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC GBR 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC LUX 50 2008
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC NLD 50 2008
SENDA SM DRD RACING 50 CC 2T EURO2 50 2010-2013
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC AUT 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC ESP 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC FRA 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC GBR 50 2008
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC BEL 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC DEU 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC ESP 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC FRA 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC GBR 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC LUX 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC NLD 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC NOR 50 2011-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC SWE 50 2010
SENDA SM DRD RACING LTD 50 CC EU2 50 2007
SENDA SM DRD RACING LTD 50 CC VTHSR2D2B EU2 50 2006
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC AUT 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC BEL 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC CHE 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC DEU 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC DNK 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC ESP 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC FRA 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC GBR 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC LUX 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC NLD 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC CHE 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC DNK 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC FIN 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC NOR 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC CHE 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC DNK 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC FIN 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC NOR 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC CHE 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC DNK 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC NOR 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG010 EURO 2 2T LC CHE 50 2010-2012
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm gear (part numbers: 847086 , ODN00057120300 )
1x deep groove ball bearing 17x40x12mm gear (part numbers: 847209 , ODN00058020301 )
1x oil seal 17x35x7mm gearbox (part numbers: 847019 , 00H02800401 )
1x drawn cup needle roller bearing 14x20x12mm gear (part numbers: 847211 , ODN00002028450 )
Compatible with
DERBI
SENDA R X RACE 50 CC 2T EU2 50 2010
SENDA R X RACE 50 CC VTHSR1D1A 2T LC 50 2008-2011
SENDA R X RACE 50 CC VTHSR1D1A EU2 50 2006-2009
SENDA R X RACE 50 CC VTHSR1E1A 2T LC 50 2008-2009
SENDA R X TREM 50 CC VTHSR1D1A 2T EU2 50 2010
SENDA R X TREM 50 CC VTHSR1D1A EU2 50 2005-2008
SENDA R X TREME 50 CC VTHSR1D1A 2T LC 50 2008-2011
SENDA R X TREME 50 CC VTHSR1E1A 2T LC 50 2008
SENDA R X TREME 50 CC VTHSR1F1A 2T LC 50 2008
SENDA SM DRD LIMITED EDITON 50 CC ZDPABB02 EURO 2 2T LC CHE 50 2012
SENDA SM DRD LIMITED EDITON 50 CC ZDPABB02 EURO 2 2T LC FRA 50 2012
SENDA SM DRD PRO 50 CC EU2 50 2005-2011
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC 50 2011
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC BEL 50 2008
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC ESP 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC FRA 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC GBR 50 2008-2009
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC LUX 50 2008
SENDA SM DRD PRO 50 CC VTHSA2A1A EURO 2 2T LC NLD 50 2008
SENDA SM DRD RACING 50 CC 2T EURO2 50 2010-2013
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC AUT 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC ESP 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC FRA 50 2008
SENDA SM DRD RACING 50 CC VTHSR2D2B EURO 2 2T LC GBR 50 2008
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC BEL 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC DEU 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC ESP 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC FRA 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC GBR 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC LUX 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC NLD 50 2010-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC NOR 50 2011-2013
SENDA SM DRD RACING 50 CC ZDPABB00 EURO 2 2T LC SWE 50 2010
SENDA SM DRD RACING LTD 50 CC EU2 50 2007
SENDA SM DRD RACING LTD 50 CC VTHSR2D2B EU2 50 2006
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC AUT 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC BEL 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC CHE 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC DEU 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC DNK 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC ESP 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC FRA 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC GBR 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC LUX 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABA01 EURO 2 2T LC NLD 50 2014-2015
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC CHE 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC DNK 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC FIN 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB01 EURO 2 2T LC NOR 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC CHE 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC DNK 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC FIN 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABB02 EURO 2 2T LC NOR 50 2010-2012
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC CHE 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC DNK 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG01 EURO 2 2T LC NOR 50 2013-2015
SENDA SM DRD X TREME 50 CC ZDPABG010 EURO 2 2T LC CHE 50 2010-2012
| Item ID | 4879 |
| Content | 1 piece |
| Weight | 145 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
