P&P Parts & Parts GmbH
Gearbox bearing for Honda ACE BIZ C100 C50 C70 CB CBF CD CG CRF CUB EX5 FOURTRAX GL POP
Item number PPS02006
Referenz: OEM Herstellernummer
EUR 16.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "c27faf390dbb8ba722071639567cd3c8");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "c27faf390dbb8ba722071639567cd3c8");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa8f94b894', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa8f94b894', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

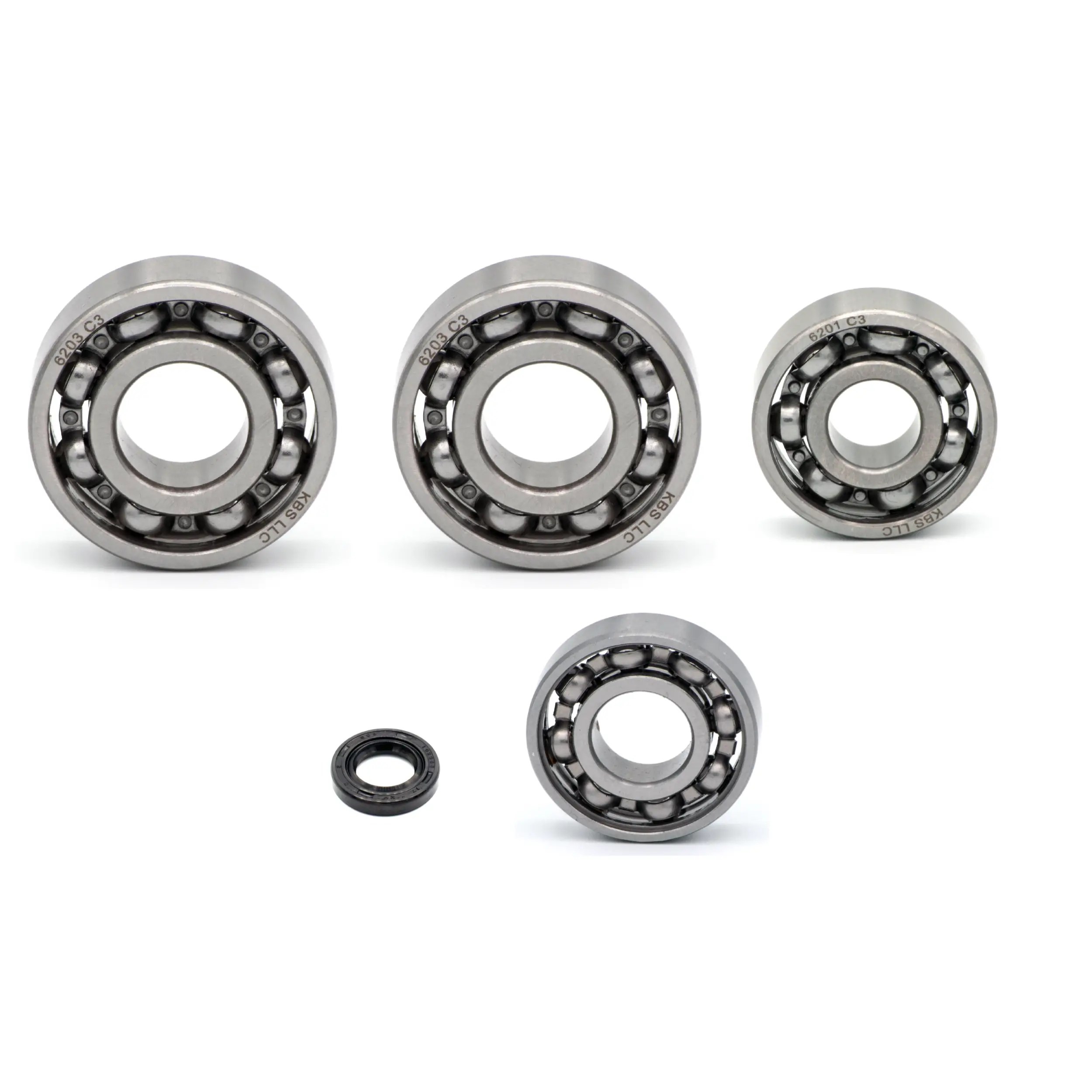

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x28x8mm gear (part numbers: 91005-KYY-901, 91005-KYY-931)
1x deep groove ball bearing 12x32x10mm gear (part numbers: 91004-KYY-901, 91004-KYY-931)
2x deep groove ball bearing 17x40x12mm gear (part numbers: 91006-KYY-901, 91006-KYY-931)
1x oil seal 17x29x5mm gearbox (part numbers: 91204-KWB-601, 91204-KYY-901)
Suitable for the following vehicles:
HONDA
ACE 125 2012-2018
BIZ 110 2016-2022
C100 100 2003-2013
C50 50 2008-2017
C70 70 1994-1995
CB 110 2011-2017
CB 125 2012-2015
CBF 125 2018-2021
CD 110 2016
CD 90 1987-1999
CG 110 2014-2017
CG 125 2013-2019
CRF 110 2013-2022
CRF 125 2014-2022
CUB 100 1988-1996
CUB 110 2009-2017
CUB 50 2012-2017
CUB 70 1986-1999
CUB 90 1992-2008
EX5 110 2013-2021
FOURTRAX 90 1993-2022
GL 125 2014-2016
POP 100 2007-2015
POP 110 2016-2019
WAVE 100 2004-2020
WAVE 110 2009-2021
XRM 110 2002-2006
Z50 50 2009-2017
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x28x8mm gear (part numbers: 91005-KYY-901, 91005-KYY-931)
1x deep groove ball bearing 12x32x10mm gear (part numbers: 91004-KYY-901, 91004-KYY-931)
2x deep groove ball bearing 17x40x12mm gear (part numbers: 91006-KYY-901, 91006-KYY-931)
1x oil seal 17x29x5mm gearbox (part numbers: 91204-KWB-601, 91204-KYY-901)
Suitable for the following vehicles:
HONDA
ACE 125 2012-2018
BIZ 110 2016-2022
C100 100 2003-2013
C50 50 2008-2017
C70 70 1994-1995
CB 110 2011-2017
CB 125 2012-2015
CBF 125 2018-2021
CD 110 2016
CD 90 1987-1999
CG 110 2014-2017
CG 125 2013-2019
CRF 110 2013-2022
CRF 125 2014-2022
CUB 100 1988-1996
CUB 110 2009-2017
CUB 50 2012-2017
CUB 70 1986-1999
CUB 90 1992-2008
EX5 110 2013-2021
FOURTRAX 90 1993-2022
GL 125 2014-2016
POP 100 2007-2015
POP 110 2016-2019
WAVE 100 2004-2020
WAVE 110 2009-2021
XRM 110 2002-2006
Z50 50 2009-2017
| Item ID | 11098 |
| Content | 1 piece |
| Weight | 195 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
