P&P Parts & Parts GmbH
Gearbox bearing for Honda APE CB CRF DREAM XR
Item number PPS02018
Referenz: OEM Herstellernummer
EUR 17.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "208076f33914c1e2b60a9a46e6d4371b");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "208076f33914c1e2b60a9a46e6d4371b");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa628a5a7e', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa628a5a7e', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

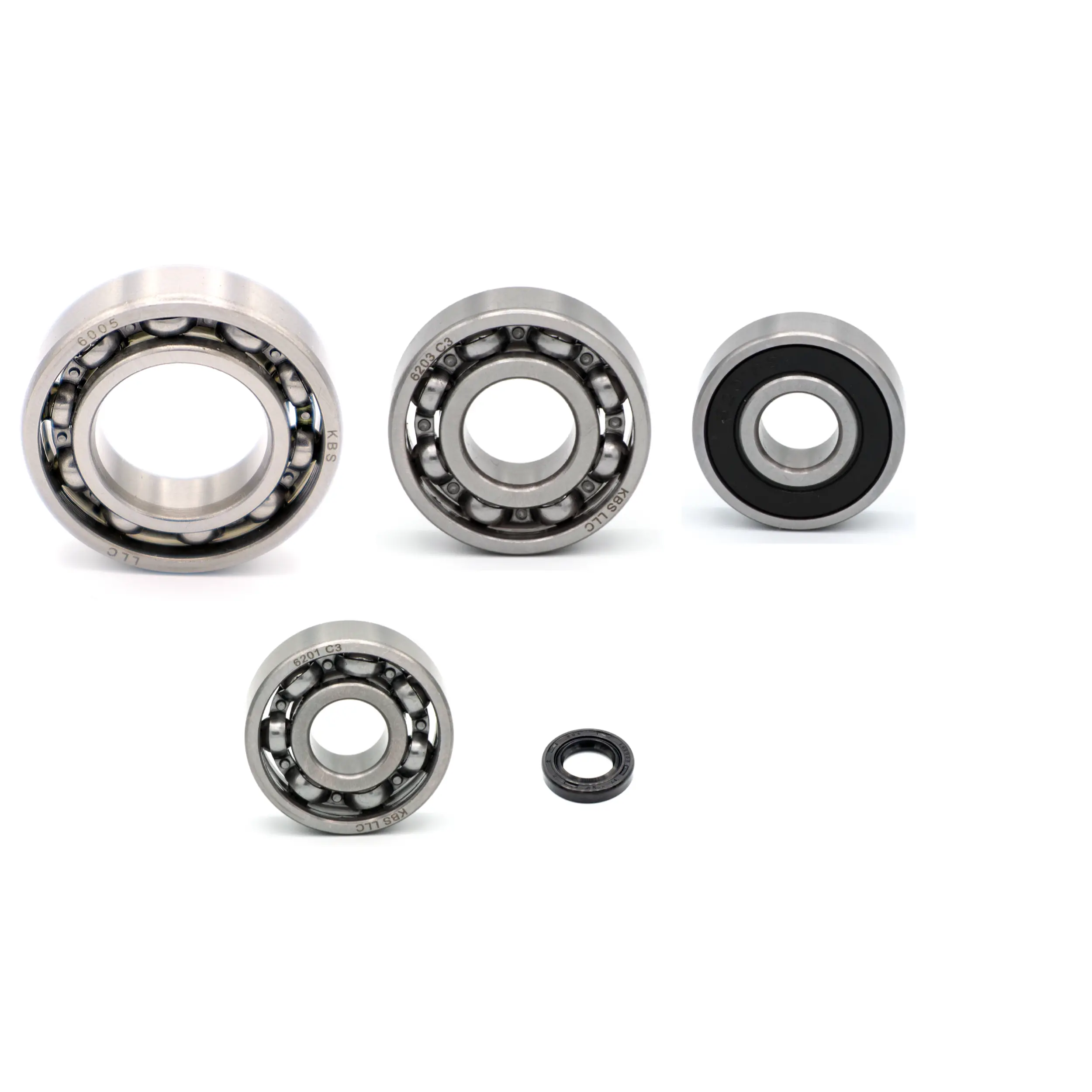

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x47x12mm gearbox (part numbers: 96100-6005000)
1x deep groove ball bearing 12x32x10mm gearbox (part numbers: 96140-6201000)
1x deep groove ball bearing 17x40x12mm gearbox (part numbers: 96100-6203000)
1x deep groove ball bearing 12x32x10mm gearbox (part numbers: 91002-436-004)
1x oil seal 17x29x5mm gearbox (part numbers: 91203-GB5-761)
Suitable for the following vehicles:
HONDA
APE 100 2002-2017
APE 50 2001-2017
CB 50 1997-1998
CRF 100 2004-2013
CRF 80 2004-2013
DREAM 50 1999
XR 100 1985-2008
XR 50 2005-2007
XR 80 1996-2003
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x47x12mm gearbox (part numbers: 96100-6005000)
1x deep groove ball bearing 12x32x10mm gearbox (part numbers: 96140-6201000)
1x deep groove ball bearing 17x40x12mm gearbox (part numbers: 96100-6203000)
1x deep groove ball bearing 12x32x10mm gearbox (part numbers: 91002-436-004)
1x oil seal 17x29x5mm gearbox (part numbers: 91203-GB5-761)
Suitable for the following vehicles:
HONDA
APE 100 2002-2017
APE 50 2001-2017
CB 50 1997-1998
CRF 100 2004-2013
CRF 80 2004-2013
DREAM 50 1999
XR 100 1985-2008
XR 50 2005-2007
XR 80 1996-2003
| Item ID | 11110 |
| Content | 1 piece |
| Weight | 232 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
