P&P Parts & Parts GmbH
Gearbox bearing for Honda BLADE CT CUB FUTURE GROM INNOVA MONKEY MSX RS WAVE XRM
Item number PPS02199
Referenz: OEM Herstellernummer
EUR 15.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "4e3777582cbb42e7efe9ba052ff71310");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "4e3777582cbb42e7efe9ba052ff71310");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa4e413bd2', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa4e413bd2', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

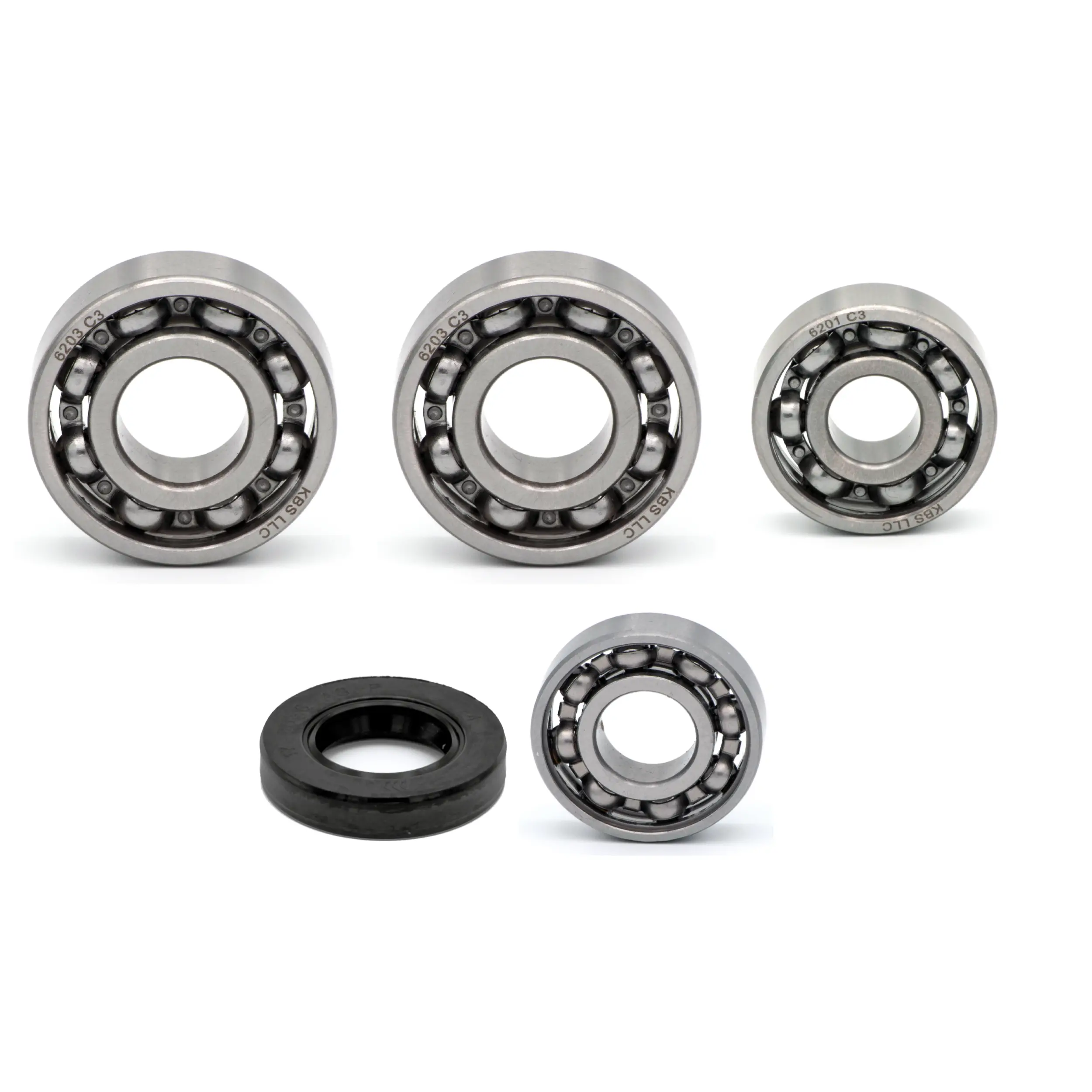

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x28x8mm transmission (part numbers: 96100-6001000)
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 96100-6201000)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 96100-6203000)
1x oil seal 17x30x6mm transmission (part numbers: 91204-KPH-901, 91204-KPH-902)
Suitable for the following vehicles:
HONDA
BLADE 125 2018-2021
CT 125 2020-2021
CUB 125 2018-2021
FUTURE 125 2016-2017
GROM 125 2014-2021
INNOVA 125 2003-2012
MONKEY 125 2018-2021
MSX 125 2013-2020
RS 125 2009-2020
WAVE 110 2007-2008
WAVE 125 2003-2021
XRM 125 2007-2021
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x28x8mm transmission (part numbers: 96100-6001000)
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 96100-6201000)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 96100-6203000)
1x oil seal 17x30x6mm transmission (part numbers: 91204-KPH-901, 91204-KPH-902)
Suitable for the following vehicles:
HONDA
BLADE 125 2018-2021
CT 125 2020-2021
CUB 125 2018-2021
FUTURE 125 2016-2017
GROM 125 2014-2021
INNOVA 125 2003-2012
MONKEY 125 2018-2021
MSX 125 2013-2020
RS 125 2009-2020
WAVE 110 2007-2008
WAVE 125 2003-2021
XRM 125 2007-2021
| Item ID | 11494 |
| Content | 1 piece |
| Weight | 191 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
