Gearbox bearing for Honda BROAD CABINA DIO ELITE GIORNO INTEGRA JOKER LEAD SCOOPY SH
Item number PPS02029
Referenz: OEM Herstellernummer
EUR 10.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "c1d711ee311eb8bf7e19b536a1695494");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "c1d711ee311eb8bf7e19b536a1695494");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fab98b495c', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fab98b495c', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

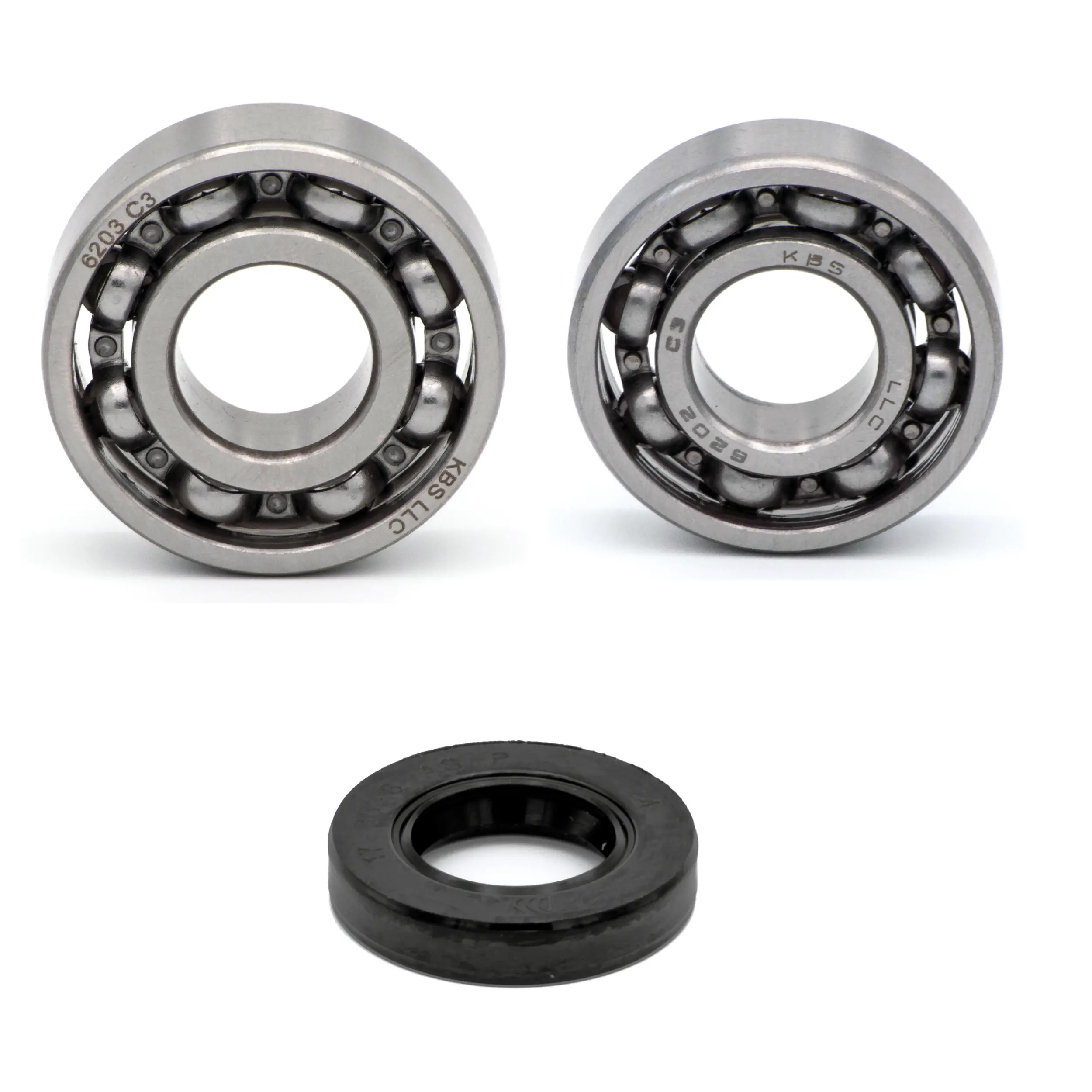

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 15x35x11mm gearbox (part numbers: 96100-6202300)
1x deep groove ball bearing 17x40x12mm gearbox (part numbers: 96100-6203300)
1x oil seal 17x30x6mm gearbox (part numbers: 91204-GN2-005)
Suitable for the following vehicles:
HONDA
BROAD 50 1995
BROAD 90 1995
CABINA 50 1994
CABINA 90 1994-1995
DIO 50 1988-1999
ELITE 50 1988-1997
GIORNO 50 1992-1997
INTEGRA 750 2016
JOKER 50 1996-1998
JOKER 90 1996-1998
LEAD 50 1988-1993
LEAD 80 1989-1994
LEAD 90 1988-1993
SCOOPY 50 1993-1995
SH 50 1995
SH 75 1987-1996
SHADOW 50 1998-1999
SHADOW 90 1998-1999
TACT 50 1989-1996
VISION 50 1988-1997
VISION 75 1989
YUPY 90 1991-1994
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 15x35x11mm gearbox (part numbers: 96100-6202300)
1x deep groove ball bearing 17x40x12mm gearbox (part numbers: 96100-6203300)
1x oil seal 17x30x6mm gearbox (part numbers: 91204-GN2-005)
Suitable for the following vehicles:
HONDA
BROAD 50 1995
BROAD 90 1995
CABINA 50 1994
CABINA 90 1994-1995
DIO 50 1988-1999
ELITE 50 1988-1997
GIORNO 50 1992-1997
INTEGRA 750 2016
JOKER 50 1996-1998
JOKER 90 1996-1998
LEAD 50 1988-1993
LEAD 80 1989-1994
LEAD 90 1988-1993
SCOOPY 50 1993-1995
SH 50 1995
SH 75 1987-1996
SHADOW 50 1998-1999
SHADOW 90 1998-1999
TACT 50 1989-1996
VISION 50 1988-1997
VISION 75 1989
YUPY 90 1991-1994
| Item ID | 11121 |
| Content | 1 piece |
| Weight | 118 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
