Gearbox bearing for Honda DIO GIORNO JAZZ METRO RUCKUS SCOOPY ZOOMER autres-modeles
Item number PPS02013
Referenz: OEM Herstellernummer
EUR 13.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1577c31bf33c3da81b1fdaf5b5d6737d");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1577c31bf33c3da81b1fdaf5b5d6737d");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('678938350aa2e', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('678938350aa2e', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

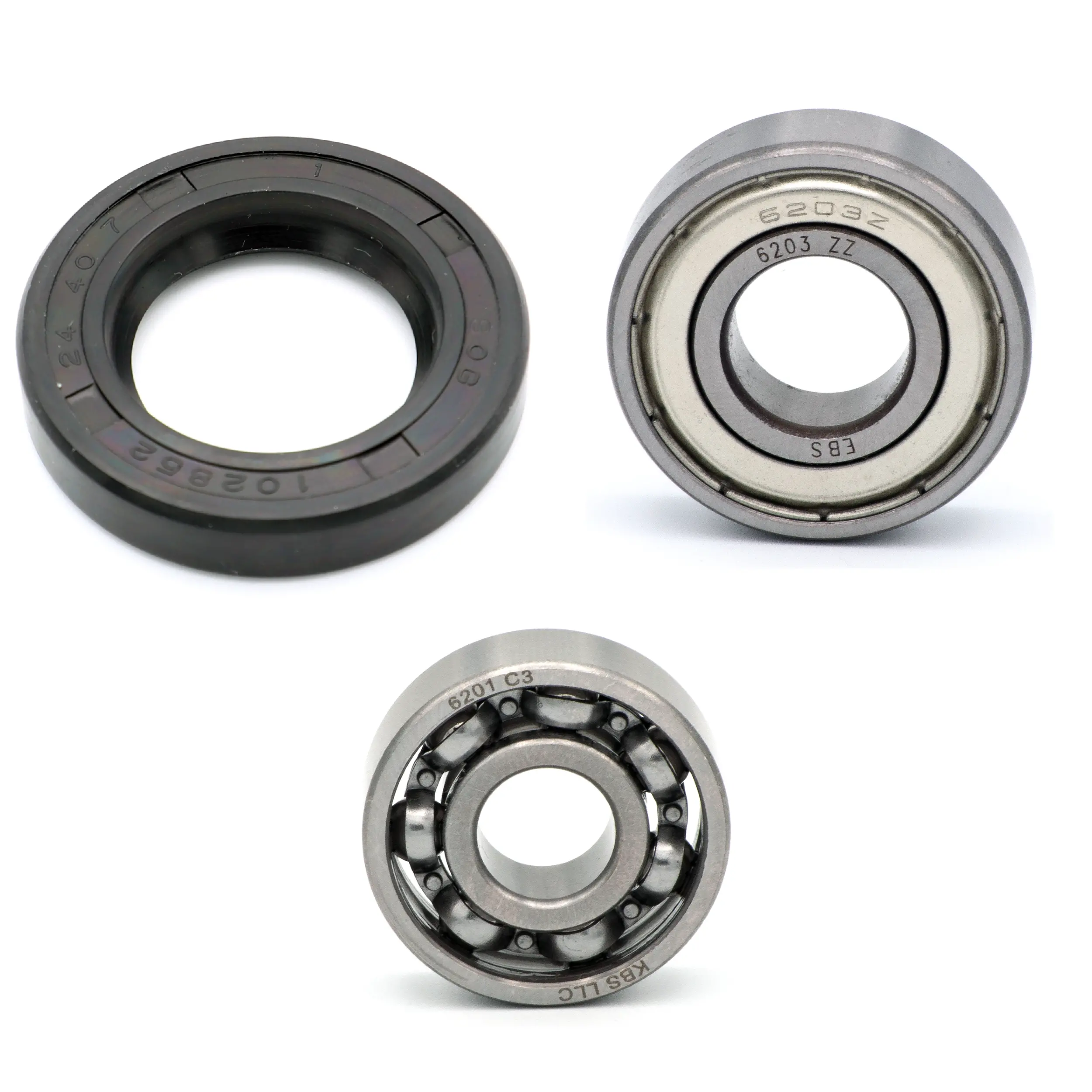

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x32x10mm gear (part numbers: 96100-6201300)
1x deep groove ball bearing 17x40x12mm gear (part numbers: 91028-GS7-900)
1x oil seal 24x40x7mm gearbox (part numbers: 91254-GE8-005)
Suitable for the following vehicles:
HONDA
DIO 50 2001-2007
GIORNO 50 1999
JAZZ 50 2002-2009
METRO 50 2002-2010
RUCKUS 50 2003-2014
SCOOPY 50 2001-2010
ZOOMER 50 2001-2017
autres-modeles 50 2002-2003
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x32x10mm gear (part numbers: 96100-6201300)
1x deep groove ball bearing 17x40x12mm gear (part numbers: 91028-GS7-900)
1x oil seal 24x40x7mm gearbox (part numbers: 91254-GE8-005)
Suitable for the following vehicles:
HONDA
DIO 50 2001-2007
GIORNO 50 1999
JAZZ 50 2002-2009
METRO 50 2002-2010
RUCKUS 50 2003-2014
SCOOPY 50 2001-2010
ZOOMER 50 2001-2017
autres-modeles 50 2002-2003
| Item ID | 11105 |
| Content | 1 piece |
| Weight | 111 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
