P&P Parts & Parts GmbH
Gearbox bearing for Piaggio BEVERLY BV CARNABY FLY MEDLEY MP3 X-EVO X10 X7
Item number PPS03305
Referenz: OEM Herstellernummer
EUR 14.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "b01585cf5f0221c8af0946937b19475d");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "b01585cf5f0221c8af0946937b19475d");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa7a17a09f', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa7a17a09f', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

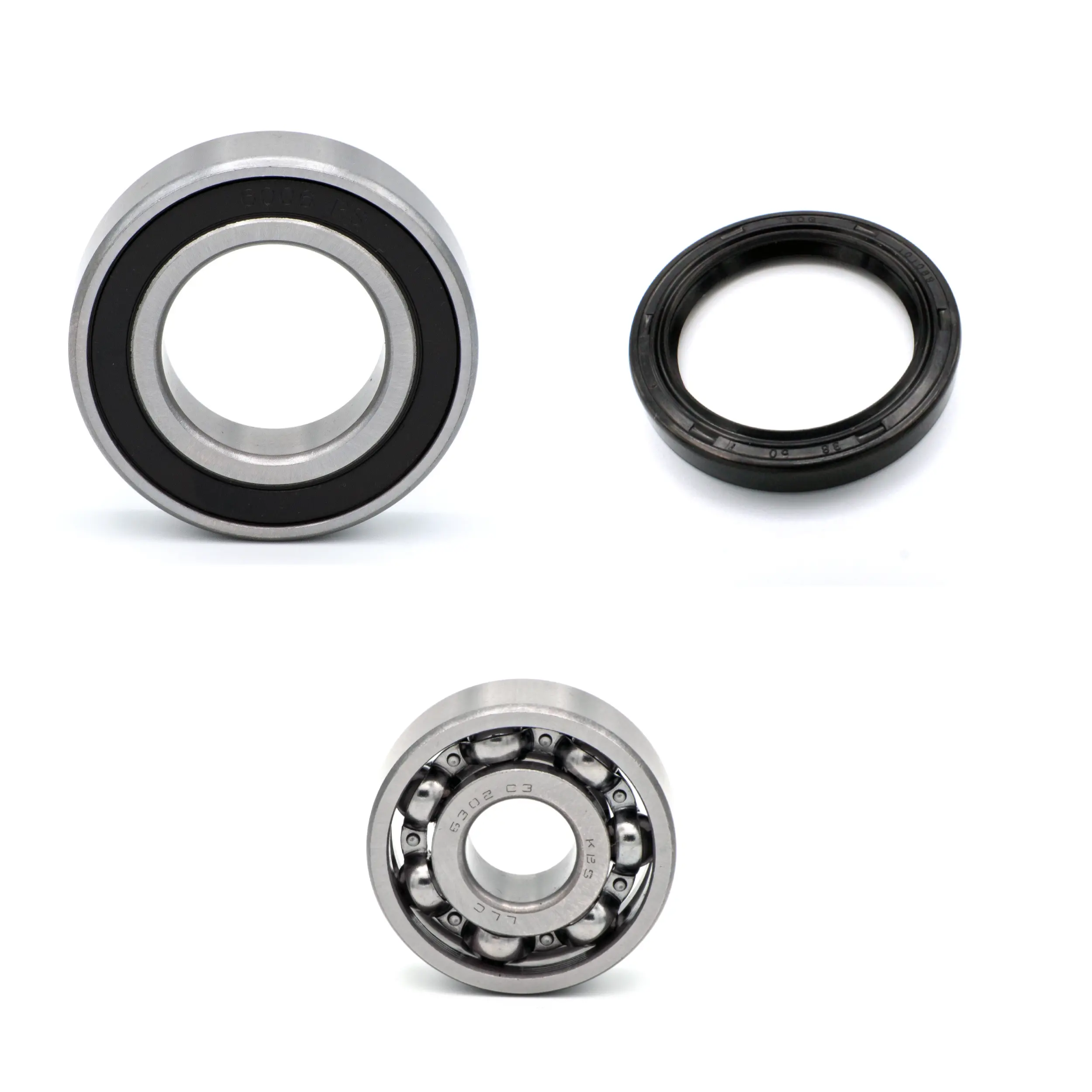

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 485912, 83026R, 83018R)
1x deep groove ball bearing 30x55x13mm transmission (part numbers: 82659R, 1A005376R, 83034R)
1x oil seal 38x50x7mm transmission (part numbers: 873351, 83082R, B015440)
Suitable for the following vehicles:
PIAGGIO
BEVERLY 125 2010-2015
BEVERLY 250 2007-2009
BEVERLY 300 2010-2021
BV 250 2007-2008
BV 300 2009-2011
CARNABY 125 2009-2010
CARNABY 250 2008
FLY 125 2012-2013
MEDLEY 125 2020-2021
MEDLEY 150 2020-2021
MP3 125 2008-2013
MP3 250 2008-2010
MP3 300 2009-2020
X-EVO 250 2007-2016
X10 125 2012-2015
X7 125 2008-2009
X7 250 2008
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 15x42x13mm transmission (part numbers: 485912, 83026R, 83018R)
1x deep groove ball bearing 30x55x13mm transmission (part numbers: 82659R, 1A005376R, 83034R)
1x oil seal 38x50x7mm transmission (part numbers: 873351, 83082R, B015440)
Suitable for the following vehicles:
PIAGGIO
BEVERLY 125 2010-2015
BEVERLY 250 2007-2009
BEVERLY 300 2010-2021
BV 250 2007-2008
BV 300 2009-2011
CARNABY 125 2009-2010
CARNABY 250 2008
FLY 125 2012-2013
MEDLEY 125 2020-2021
MEDLEY 150 2020-2021
MP3 125 2008-2013
MP3 250 2008-2010
MP3 300 2009-2020
X-EVO 250 2007-2016
X10 125 2012-2015
X7 125 2008-2009
X7 250 2008
| Item ID | 13847 |
| Content | 1 piece |
| Weight | 212 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
Damit die Montage problemlos abläuft, haben wir für Dich auf dieser Unterseite einige Montagehinweise zusammengefasst.
Wir versprechen dir den bestmöglichen Service, damit du den für dich passenden Artikel findest!
Dazu stehen wir dir vor dem Kauf für etwaige Fragen zur Verfügung. Schreib uns einfach, wenn du dir unser bist, ob etwas bei deinem Fahrzeug- oder Motortyp passt.
Auch nach dem Erhalt der Ware helfen wir dir gerne weiter. Wenn etwas mal nicht passen sollte, nehme gerne Kontakt auf und wir finden gemeinsam eine unkomplizierte Lösung
