P&P Parts & Parts GmbH
Gearbox bearing for Piaggio FLY LIBERTY TYPHOON ZIP
Item number PPS01158
Referenz: OEM Herstellernummer
EUR 35.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "8ccc9d481862e54c5e4a044528939d63");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "8ccc9d481862e54c5e4a044528939d63");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa91960dea', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa91960dea', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

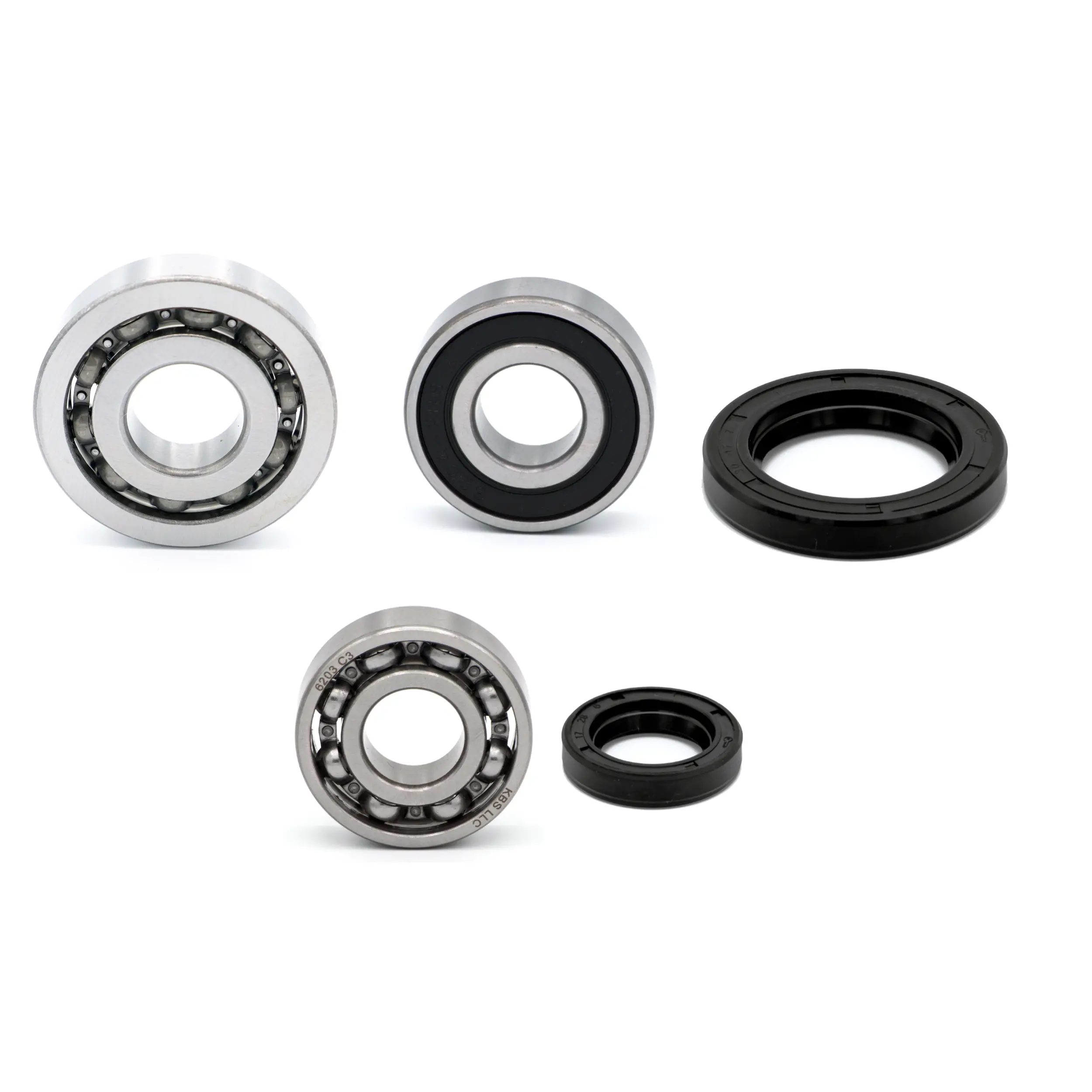

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 434735)
1x oil seal 30x47x7mm transmission (part numbers: 478498)
1x oil seal 17x28x6mm transmission (part numbers: 480066)
1x deep groove ball bearing 20x52x12mm transmission (part numbers: 82671R)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 435363)
Suitable for the following vehicles:
PIAGGIO
FLY 100 2007-2014
FLY 50 2005-2017
LIBERTY 100 2011-2014
LIBERTY 50
TYPHOON 50 2011-2015
ZIP 50 1995-1996
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 434735)
1x oil seal 30x47x7mm transmission (part numbers: 478498)
1x oil seal 17x28x6mm transmission (part numbers: 480066)
1x deep groove ball bearing 20x52x12mm transmission (part numbers: 82671R)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 435363)
Suitable for the following vehicles:
PIAGGIO
FLY 100 2007-2014
FLY 50 2005-2017
LIBERTY 100 2011-2014
LIBERTY 50
TYPHOON 50 2011-2015
ZIP 50 1995-1996
| Item ID | 8423 |
| Content | 1 piece |
| Weight | 321 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
