P&P Parts & Parts GmbH
Gearbox bearing for Piaggio FREE NRG NTT TYPHOON ZIP
Item number PPS01156
Referenz: OEM Herstellernummer
EUR 19.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a2014f6a31785c973a6d13dcd4c6aadb");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a2014f6a31785c973a6d13dcd4c6aadb");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fa95ec7a26', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fa95ec7a26', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

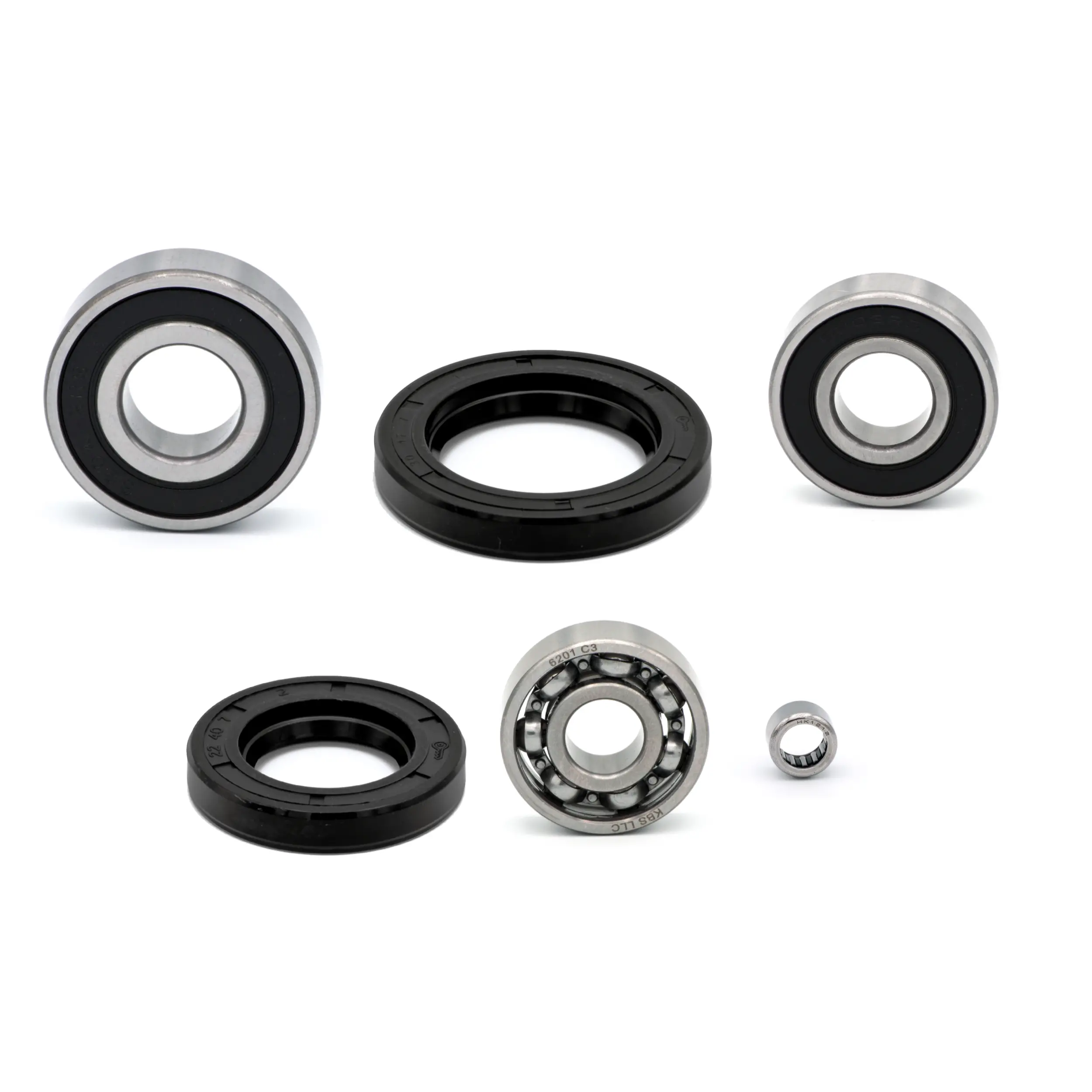

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm rear wheel axle (part numbers: 434735)
1x oil seal 30x47x7mm rear wheel axle (part numbers: 478498)
1x drawn cup needle roller bearing 12x18x12mm rear wheel axle (part numbers: 1304912)
1x deep groove ball bearing 12x32x10mm primary shaft (part numbers: 478261)
1x deep groove ball bearing 17x40x12mm primary shaft (part numbers: 430751)
1x oil seal 22x40x7mm primary shaft (part numbers: 239848)
Suitable for the following vehicles:
PIAGGIO
FREE 50
NRG 50
NTT 50
TYPHOON 50
ZIP 50
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x47x14mm rear wheel axle (part numbers: 434735)
1x oil seal 30x47x7mm rear wheel axle (part numbers: 478498)
1x drawn cup needle roller bearing 12x18x12mm rear wheel axle (part numbers: 1304912)
1x deep groove ball bearing 12x32x10mm primary shaft (part numbers: 478261)
1x deep groove ball bearing 17x40x12mm primary shaft (part numbers: 430751)
1x oil seal 22x40x7mm primary shaft (part numbers: 239848)
Suitable for the following vehicles:
PIAGGIO
FREE 50
NRG 50
NTT 50
TYPHOON 50
ZIP 50
| Item ID | 8421 |
| Content | 1 piece |
| Weight | 234 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
