P&P Parts & Parts GmbH
Gearbox bearing for Piaggio HEXAGON X9 ZIP
Item number PPS01154
Referenz: OEM Herstellernummer
EUR 24.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a0ef15dfd3ab5c5c014838846a11ed58");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a0ef15dfd3ab5c5c014838846a11ed58");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('677088ea1698a', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('677088ea1698a', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

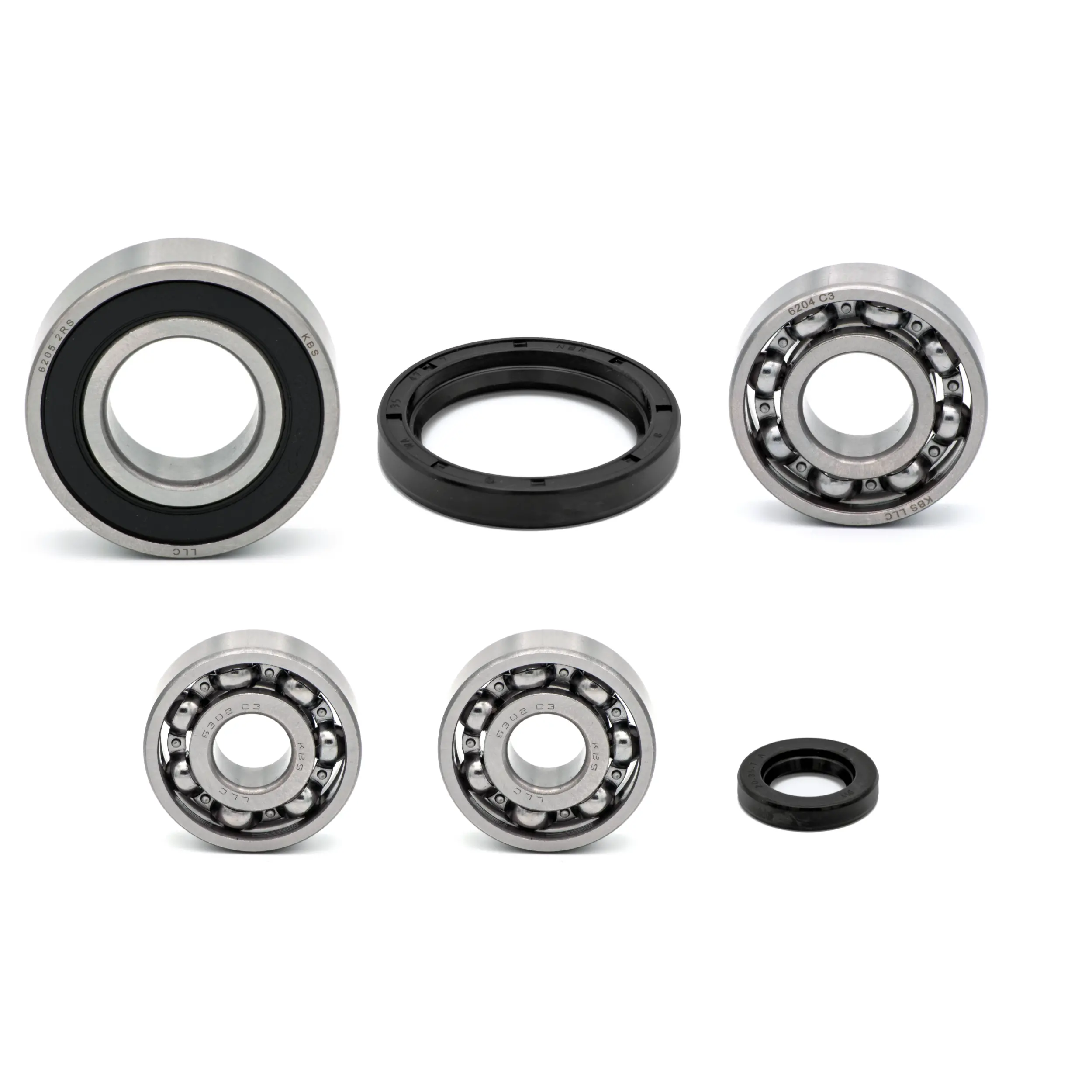

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x oil seal 35x47x7mm rear wheel axle (part numbers: 82541R)
2x deep groove ball bearing 15x42x13mm rear wheel axle (part numbers: 485912)
1x deep groove ball bearing 25x52x15mm rear wheel axle (partnumbers: 478984)
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 833701)
1x oil seal 20x32x7mm primary shaft (part numbers: 82539R)
Suitable for the following vehicles:
PIAGGIO
HEXAGON 180
X9 125
ZIP 125
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x oil seal 35x47x7mm rear wheel axle (part numbers: 82541R)
2x deep groove ball bearing 15x42x13mm rear wheel axle (part numbers: 485912)
1x deep groove ball bearing 25x52x15mm rear wheel axle (partnumbers: 478984)
1x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 833701)
1x oil seal 20x32x7mm primary shaft (part numbers: 82539R)
Suitable for the following vehicles:
PIAGGIO
HEXAGON 180
X9 125
ZIP 125
| Item ID | 8419 |
| Content | 1 piece |
| Weight | 416 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
