Transmission bearing compatible with Suzuki AN BURGMAN
Item number PPS00933
Referenz: OEM Herstellernummer
EUR 29.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aeb287a9e7060f53581d55a4806fed07");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aeb287a9e7060f53581d55a4806fed07");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fb510c5a53', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fb510c5a53', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

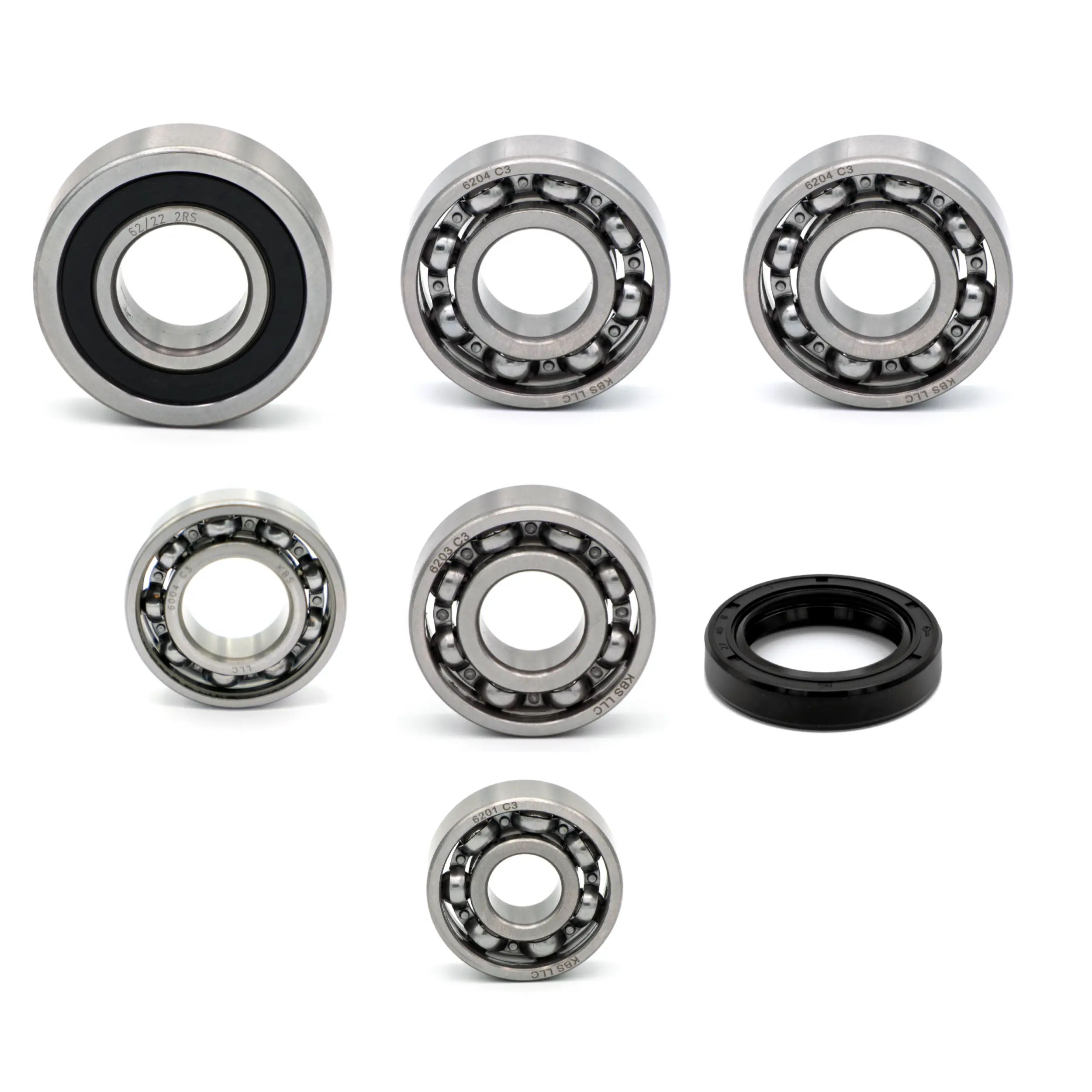

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm gearbox countershaft (part numbers: 09262-20106-000)
1x deep groove ball bearing 12x32x10mm gearbox countershaft (part numbers: 08113-62017-000)
1x deep groove ball bearing 17x40x12mm rear wheel axle (part numbers: 08110-62030-000)
2x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 09262-20069-000)
1x deep groove ball bearing 22x50x14mm rear wheel axle (part numbers: 09262-22027-000)
1x oil seal 20x47x7mm (part numbers: 09283-20054-000)
1x shaft seal 27x40x8mm rear wheel axle (part numbers: 09283-27010-000)
Compatible with
AN BURGMAN 125 1995-2007
AN BURGMAN 150 1996-2000
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance.
Included is the ball bearing for the transmission input, which sits in the transmission cover and the ball bearings that support the individual transmission shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm gearbox countershaft (part numbers: 09262-20106-000)
1x deep groove ball bearing 12x32x10mm gearbox countershaft (part numbers: 08113-62017-000)
1x deep groove ball bearing 17x40x12mm rear wheel axle (part numbers: 08110-62030-000)
2x deep groove ball bearing 20x47x14mm primary shaft (part numbers: 09262-20069-000)
1x deep groove ball bearing 22x50x14mm rear wheel axle (part numbers: 09262-22027-000)
1x oil seal 20x47x7mm (part numbers: 09283-20054-000)
1x shaft seal 27x40x8mm rear wheel axle (part numbers: 09283-27010-000)
Compatible with
AN BURGMAN 125 1995-2007
AN BURGMAN 150 1996-2000
| Item ID | 7765 |
| Content | 1 piece |
| Weight | 524 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
