P&P Parts & Parts GmbH

Gearbox bearing for SYM ALLO CROX FIDDLE JET MASK ORBIT
Item number PPS03202

Referenz: OEM Herstellernummer

if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "19a0dcbed37e278c31e384c5bfbf611b"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", "true"); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 0); script.setAttribute("applePayComponent", 0); script.setAttribute("logToken", "19a0dcbed37e278c31e384c5bfbf611b"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('676fadf6c044f', 'paypal', 'buynow', 'rect', 'blue'); }); } else { renderPayPalButtons('676fadf6c044f', 'paypal', 'buynow', 'rect', 'blue'); }
* Incl. VAT excl. Shipping
Versandkosteninformationen
High quality gearbox bearing set with oil seals for your gearbox

This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.

Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

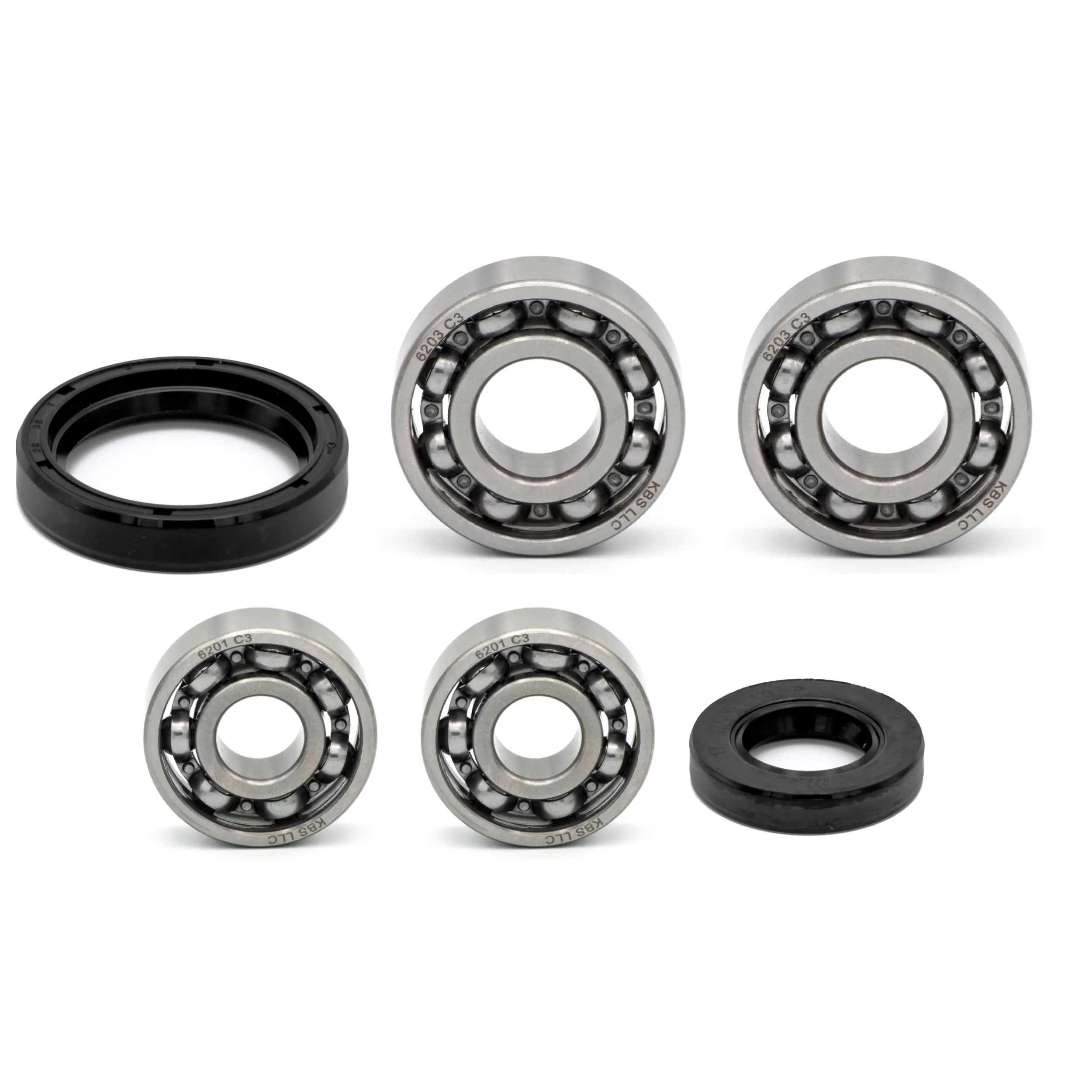

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 91004-KBN-921-M1, 91004-KBN-9210-M1, 91004-KBN-921-M2)
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 91006-A1A-300)
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 96100-62013-00)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 96100-62033-10)
1x oil seal 17x30x6mm transmission (part numbers: 91206-A1A-000)
1x oil seal 27x42x7mm transmission (part numbers: 91255-M8Q-000)


Suitable for the following vehicles:
SYM
ALLO 50 2016-2020
CROX 50 2015-2020
FIDDLE 50 2010-2020
JET 50 2018
MASK 50 2017-2019
ORBIT 50 2018-2020

Damit die Montage problemlos abläuft, haben wir für Dich auf dieser Unterseite einige Montagehinweise zusammengefasst.
>> Montagehinweise

Wir versprechen dir den bestmöglichen Service, damit du den für dich passenden Artikel findest!

Dazu stehen wir dir vor dem Kauf für etwaige Fragen zur Verfügung. Schreib uns einfach, wenn du dir unser bist, ob etwas bei deinem Fahrzeug- oder Motortyp passt.

Auch nach dem Erhalt der Ware helfen wir dir gerne weiter. Wenn etwas mal nicht passen sollte, nehme gerne Kontakt auf und wir finden gemeinsam eine unkomplizierte Lösung
>> mehr Informationen zu unserem Garantieversprechen
