Gearbox bearing for SYM FIDDLE FNX JET ORBIT SYMPHONY
Item number PPS01454
Referenz: OEM Herstellernummer
EUR 28.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "414a47d71b6a1339773ae2866375ae4a");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "414a47d71b6a1339773ae2866375ae4a");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fb556ac569', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fb556ac569', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

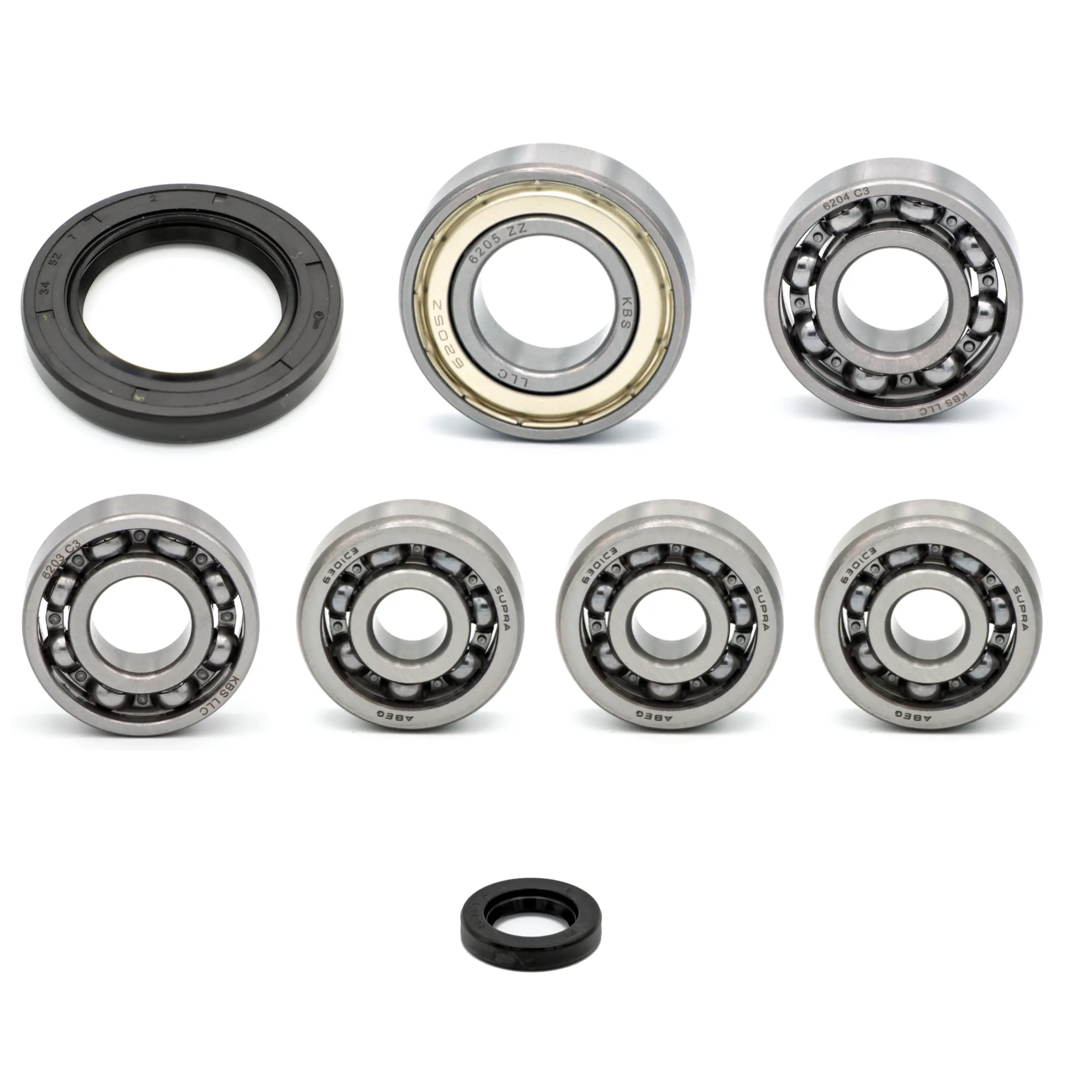

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 96100-62033-10)
2x deep groove ball bearing 12x37x12mm transmission (part numbers: 96100-63013-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x oil seal 20x32x7mm transmission (part numbers: 91202-KJ9-003, 91202-KJ9-003-M1)
1x oil seal 34x52x6mm transmission (part numbers: 91203-A6A-000)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 91104-KN7-670, 91104-KN7-670-M1, 91104-KN7-670-M2)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: 91003-M8Q-000)
Suitable for the following vehicles:
SYM
FIDDLE 125 2014-2020
FIDDLE 200 2016-2017
FNX 125 2019-2021
JET 125 2015-2020
JET 200 2021
ORBIT 125 2017-2021
SYMPHONY 125 2014-2021
SYMPHONY 200 2018
SYMPHONY 50 2020
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 96100-62033-10)
2x deep groove ball bearing 12x37x12mm transmission (part numbers: 96100-63013-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x oil seal 20x32x7mm transmission (part numbers: 91202-KJ9-003, 91202-KJ9-003-M1)
1x oil seal 34x52x6mm transmission (part numbers: 91203-A6A-000)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 91104-KN7-670, 91104-KN7-670-M1, 91104-KN7-670-M2)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: 91003-M8Q-000)
Suitable for the following vehicles:
SYM
FIDDLE 125 2014-2020
FIDDLE 200 2016-2017
FNX 125 2019-2021
JET 125 2015-2020
JET 200 2021
ORBIT 125 2017-2021
SYMPHONY 125 2014-2021
SYMPHONY 200 2018
SYMPHONY 50 2020
| Item ID | 9126 |
| Content | 1 piece |
| Weight | 518 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
