P&P Parts & Parts GmbH
Gearbox bearing for SYM QUAD
Item number PPS01889
Referenz: OEM Herstellernummer
EUR 49.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "8c8638c59fe3b42ddf69fb559c11b299");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "8c8638c59fe3b42ddf69fb559c11b299");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('67708999364b6', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('67708999364b6', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

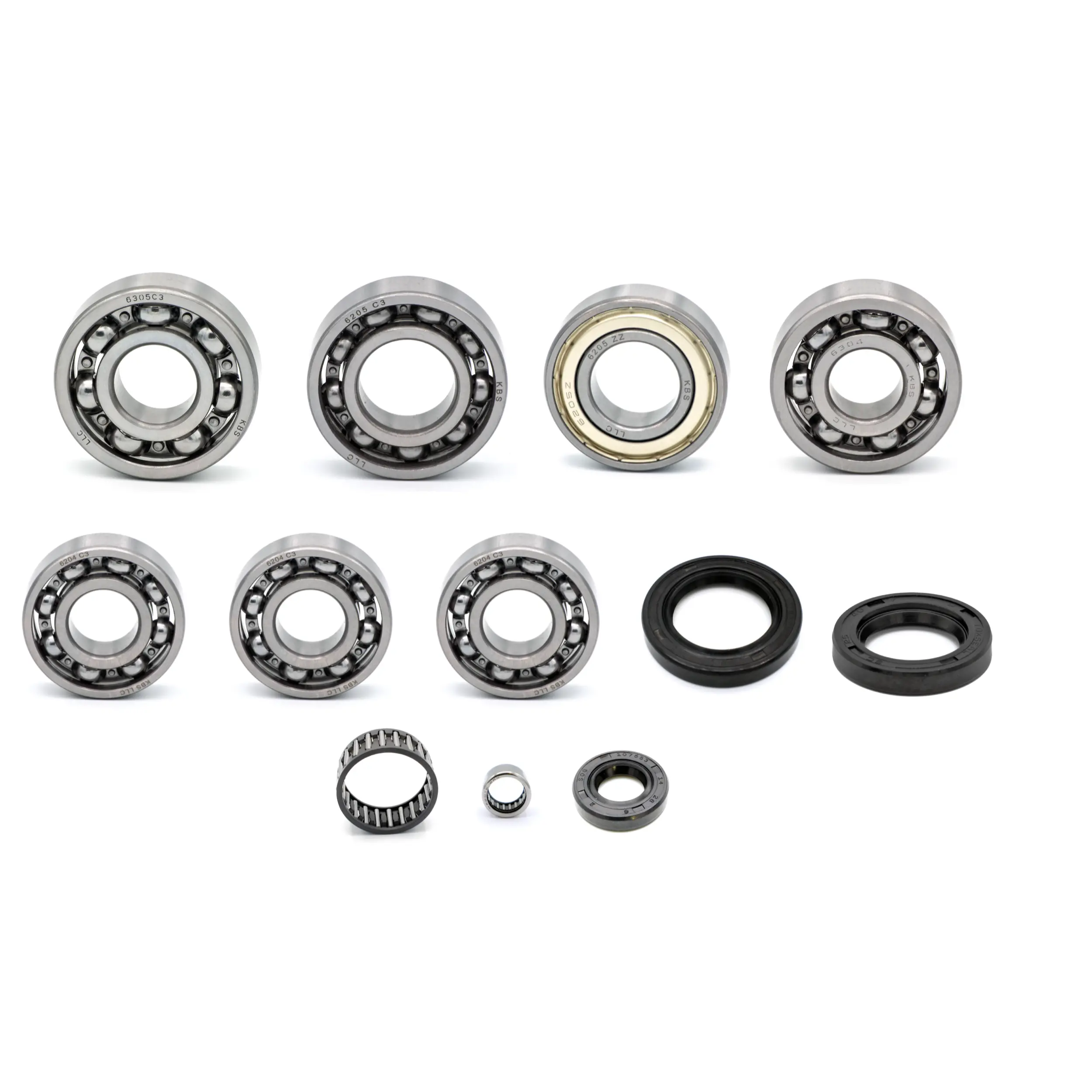

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
3x deep groove ball bearing 20x47x14mm transmission (part numbers: 96100-62040-10)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96100-62050-00)
1x deep groove ball bearing 20x52x15mm transmission (part numbers: 96100-63040-10)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 96100-63053-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x needle roller and cage assembly 25x29x10mm transmission (part numbers: 91103-X17-000)
1x oil seal 30x46x7mm transmission (part numbers: 91201-RB1-000)
1x oil seal 14x26x6mm transmission (part numbers: 91202-RB1-000)
1x oil seal 25x40x7mm transmission (part numbers: 91204-HMA-000)
1x drawn cup needle roller bearing 20x26x16mm transmission (part numbers: 91003-RB1-000)
Suitable for the following vehicles:
SYM
QUAD 250 2004
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
3x deep groove ball bearing 20x47x14mm transmission (part numbers: 96100-62040-10)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96100-62050-00)
1x deep groove ball bearing 20x52x15mm transmission (part numbers: 96100-63040-10)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 96100-63053-00)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 96150-62050-10)
1x needle roller and cage assembly 25x29x10mm transmission (part numbers: 91103-X17-000)
1x oil seal 30x46x7mm transmission (part numbers: 91201-RB1-000)
1x oil seal 14x26x6mm transmission (part numbers: 91202-RB1-000)
1x oil seal 25x40x7mm transmission (part numbers: 91204-HMA-000)
1x drawn cup needle roller bearing 20x26x16mm transmission (part numbers: 91003-RB1-000)
Suitable for the following vehicles:
SYM
QUAD 250 2004
| Item ID | 10931 |
| Content | 1 piece |
| Weight | 990 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
