P&P Parts & Parts GmbH
Gearbox bearing for Yamaha CS50 CS50-JOG-R CS50-MACH-G-AC CS50-MACH-G-AIR CS50M CS50Z
Item number PPS01169
Referenz: OEM Herstellernummer
EUR 17.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aa98093d63437c5d4891d35c458be49e");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aa98093d63437c5d4891d35c458be49e");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782e82c063c6', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782e82c063c6', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

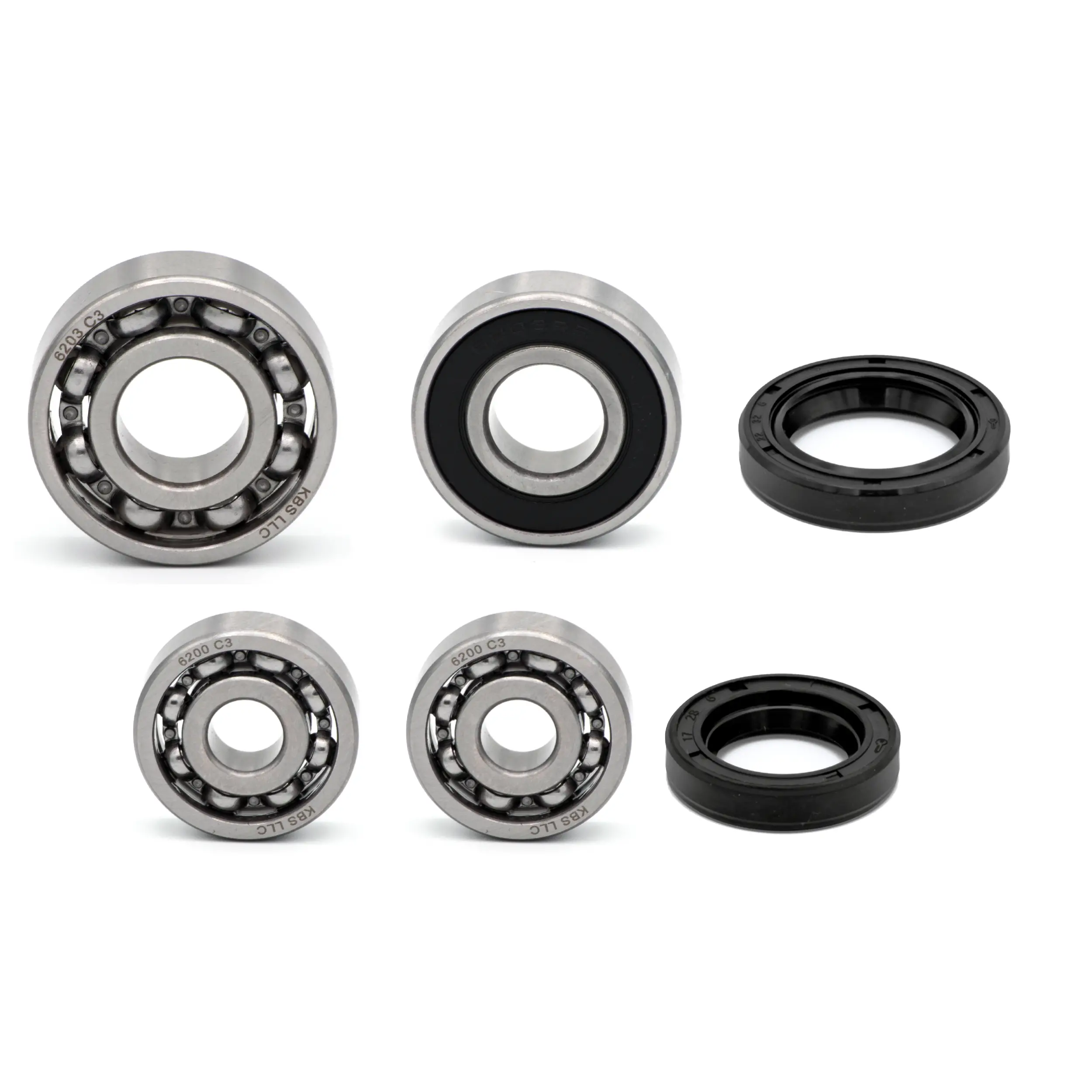

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm primary shaft (part numbers: 93306-203YC, 93306-203YC-00, 93306-20301)
2x deep groove ball bearing 10x30x9mm intermediate shaft (part numbers: 93306-20006, 93306-20006-00)
1x deep groove ball bearing 17x40x12mm rear wheel bearing (part numbers: 93306-203YF, 93306-203YF-00, 93306-20314)
1x oil seal 17x28x6mm primary shaft (part numbers: 93102-17342, 93102-17342-00)
1x oil seal 22x32x6mm rear bearing (part numbers: 93102-22897, 93102-22897-00, 93102-22314)
Suitable for the following vehicles:
YAMAHA
CS50 50 2002-2004
CS50-JOG-R 50 2002-2003
CS50-MACH-G-AC 50 2002
CS50-MACH-G-AIR 50 2003-2004
CS50M 50 2003-2004
CS50Z 50 2002-2003
CS50Z-JOG-RR 50 2002-2003
CS50Z-MACH-G-LIQUIDE 50 2002-2003
CW50 50 1993-2003
CW50-BWS 50 1992
CW50-BWS-ORIGINAL 50 1998-1999
CW50-SP 50 2001
CW50L 50 2003
CW50R 50 1995
CW50RS 50 1997-2003
CW50RS-BOOSTER 50 1996
CW50RS-NEXT-GEN 50 2003
CW50RSP 50 1996-1998
CW50RSP-POWER-ROCKET 50 2003
CW50RSX 50 1997
CY50-JOG 50 1994-1996
CY50H-JOGPOCHE 50 1993-1994
CY50HS-JOGPOCHE 50 1994
EW50 50 2003
EW50-STUNT 50 2003
EW50N 50 2003
EW50N-STUNT-NAKED 50 2003
YG50EX 50 1993
YG50Z 50 1991-1998
YG50ZS 50 1992
YH50 50 2001-2004
YH50-FLIPPER 50 2003-2004
YN50 50 2000-2004
YN50-NEOS 50 2000-2002
YN50-OVETTO 50 2002-2003
YN50-OVETTO-50 50 2000-2004
YN50-YN50R-OVETTO 50 1999
YN50ALPINESTARS 50 2002
YN50M 50 2003
YN50MOFFA 50 2002
YN50R 50 2000-2001
YN50R-NEOS 50 2001
YN50R-NEOS-50 50 2001
YQ50L 50 2003
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm primary shaft (part numbers: 93306-203YC, 93306-203YC-00, 93306-20301)
2x deep groove ball bearing 10x30x9mm intermediate shaft (part numbers: 93306-20006, 93306-20006-00)
1x deep groove ball bearing 17x40x12mm rear wheel bearing (part numbers: 93306-203YF, 93306-203YF-00, 93306-20314)
1x oil seal 17x28x6mm primary shaft (part numbers: 93102-17342, 93102-17342-00)
1x oil seal 22x32x6mm rear bearing (part numbers: 93102-22897, 93102-22897-00, 93102-22314)
Suitable for the following vehicles:
YAMAHA
CS50 50 2002-2004
CS50-JOG-R 50 2002-2003
CS50-MACH-G-AC 50 2002
CS50-MACH-G-AIR 50 2003-2004
CS50M 50 2003-2004
CS50Z 50 2002-2003
CS50Z-JOG-RR 50 2002-2003
CS50Z-MACH-G-LIQUIDE 50 2002-2003
CW50 50 1993-2003
CW50-BWS 50 1992
CW50-BWS-ORIGINAL 50 1998-1999
CW50-SP 50 2001
CW50L 50 2003
CW50R 50 1995
CW50RS 50 1997-2003
CW50RS-BOOSTER 50 1996
CW50RS-NEXT-GEN 50 2003
CW50RSP 50 1996-1998
CW50RSP-POWER-ROCKET 50 2003
CW50RSX 50 1997
CY50-JOG 50 1994-1996
CY50H-JOGPOCHE 50 1993-1994
CY50HS-JOGPOCHE 50 1994
EW50 50 2003
EW50-STUNT 50 2003
EW50N 50 2003
EW50N-STUNT-NAKED 50 2003
YG50EX 50 1993
YG50Z 50 1991-1998
YG50ZS 50 1992
YH50 50 2001-2004
YH50-FLIPPER 50 2003-2004
YN50 50 2000-2004
YN50-NEOS 50 2000-2002
YN50-OVETTO 50 2002-2003
YN50-OVETTO-50 50 2000-2004
YN50-YN50R-OVETTO 50 1999
YN50ALPINESTARS 50 2002
YN50M 50 2003
YN50MOFFA 50 2002
YN50R 50 2000-2001
YN50R-NEOS 50 2001
YN50R-NEOS-50 50 2001
YQ50L 50 2003
| Item ID | 8435 |
| Content | 1 piece |
| Weight | 205 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
Damit die Montage problemlos abläuft, haben wir für Dich auf dieser Unterseite einige Montagehinweise zusammengefasst.
Wir versprechen dir den bestmöglichen Service, damit du den für dich passenden Artikel findest!
Dazu stehen wir dir vor dem Kauf für etwaige Fragen zur Verfügung. Schreib uns einfach, wenn du dir unser bist, ob etwas bei deinem Fahrzeug- oder Motortyp passt.
Auch nach dem Erhalt der Ware helfen wir dir gerne weiter. Wenn etwas mal nicht passen sollte, nehme gerne Kontakt auf und wir finden gemeinsam eine unkomplizierte Lösung
