P&P Parts & Parts GmbH
Gearbox bearing for Yamaha CW50 CW50R CW50RS CW50RSP CW50RSX CY50R YA50R YA50S YE50
Item number PPS02925
Referenz: OEM Herstellernummer
EUR 11.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "37042778b95ab53aed5f6bf35e5991ba");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "37042778b95ab53aed5f6bf35e5991ba");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782e9aa4cb5c', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782e9aa4cb5c', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

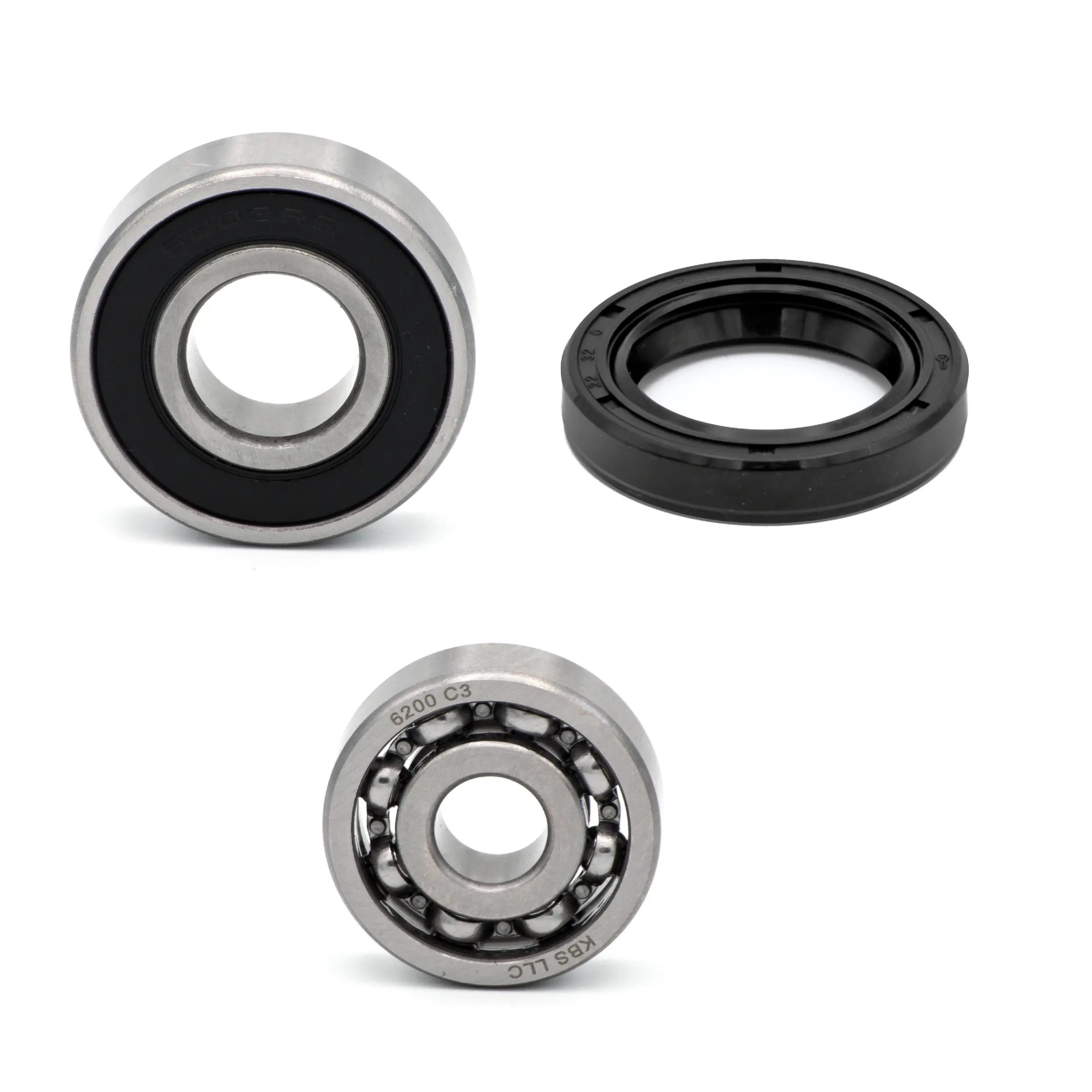

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 10x30x9mm transmission (part numbers: 93306-20006-00, 93306-20006)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-20346-00, 93306-20314-00, 93306-20346)
1x oil seal 22x32x6mm transmission (part numbers: 3VL-E7465-00-00, 93102-22314-00, 3VL-37465-00)
Suitable for the following vehicles:
YAMAHA
CW50 50 1992-1997
CW50R 50 1995
CW50RS 50 1995-1997
CW50RSP 50 1996-1997
CW50RSX 50 1996-1997
CY50R 50 1998
YA50R 50 1994
YA50S 50 1996
YE50 50 1993
YN50 50 1997-1998
YN50-OVETTO 50 1997
YN50R 50 1997-1998
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 10x30x9mm transmission (part numbers: 93306-20006-00, 93306-20006)
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-20346-00, 93306-20314-00, 93306-20346)
1x oil seal 22x32x6mm transmission (part numbers: 3VL-E7465-00-00, 93102-22314-00, 3VL-37465-00)
Suitable for the following vehicles:
YAMAHA
CW50 50 1992-1997
CW50R 50 1995
CW50RS 50 1995-1997
CW50RSP 50 1996-1997
CW50RSX 50 1996-1997
CY50R 50 1998
YA50R 50 1994
YA50S 50 1996
YE50 50 1993
YN50 50 1997-1998
YN50-OVETTO 50 1997
YN50R 50 1997-1998
| Item ID | 12828 |
| Content | 1 piece |
| Weight | 103 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
