P&P Parts & Parts GmbH
Gearbox bearing for Yamaha CW50 CW50RS CW50RSP CW50RSX CW50T CY50
Item number PPS01170
Referenz: OEM Herstellernummer
EUR 18.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6bdd8d1844233ece1e2a76138adc335e");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "6bdd8d1844233ece1e2a76138adc335e");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782f4f6abfe3', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782f4f6abfe3', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

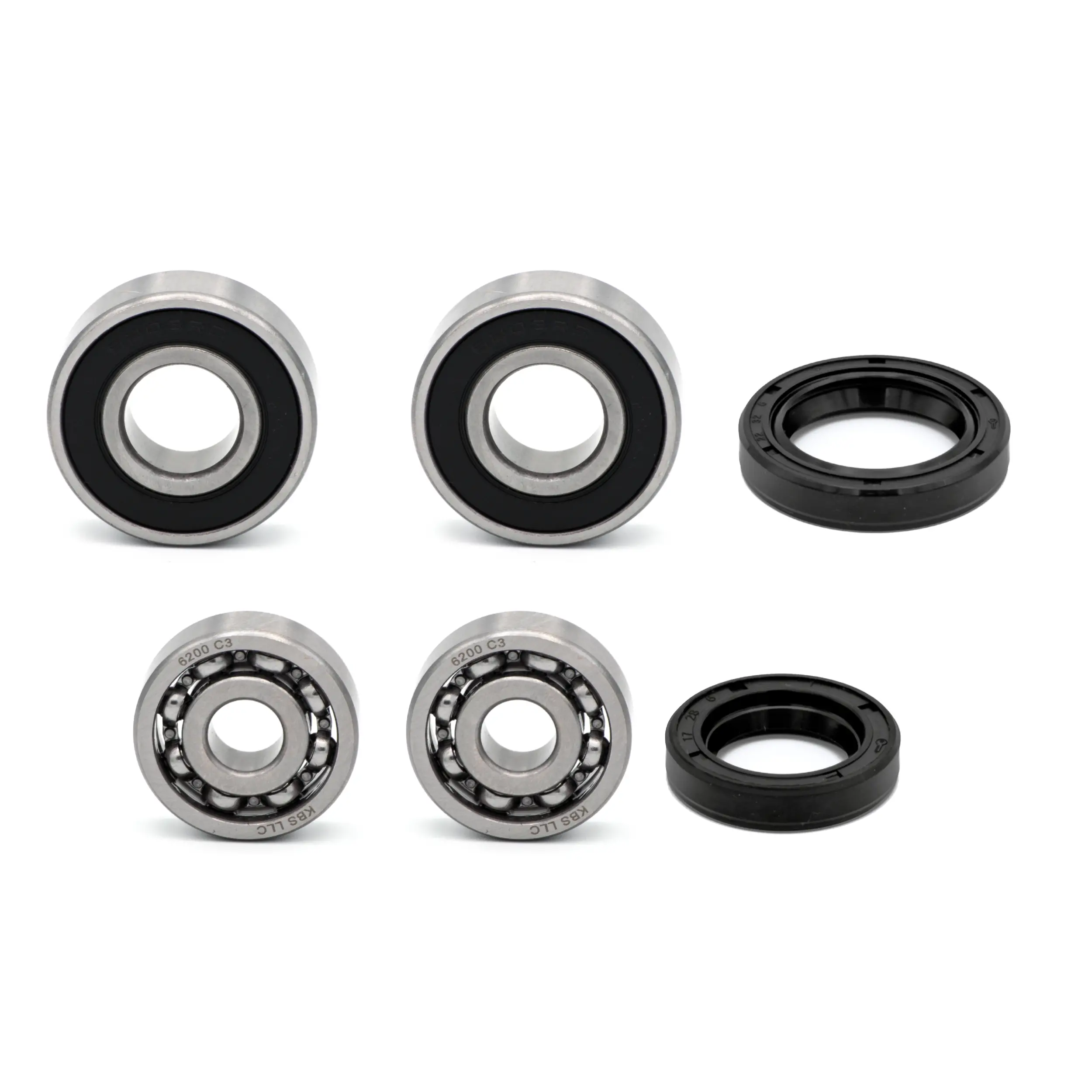

All bearings and oil seals in the gearbox are included in this bearing set:
2x deep groove ball bearing 10x30x9mm transmission (part numbers: 93306-20006-00)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-20310-00, 93306-20301-00)
1x oil seal 17x28x6mm transmission (part numbers: 93102-17342-00)
1x oil seal 22x32x6mm transmission (part numbers: 93102-22314-00)
Suitable for the following vehicles:
YAMAHA
CW50 50 1990-1998
CW50RS 50 1998
CW50RSP 50 1998
CW50RSX 50 1997-1998
CW50T 50 1990
CY50 50 1990
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
2x deep groove ball bearing 10x30x9mm transmission (part numbers: 93306-20006-00)
2x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-20310-00, 93306-20301-00)
1x oil seal 17x28x6mm transmission (part numbers: 93102-17342-00)
1x oil seal 22x32x6mm transmission (part numbers: 93102-22314-00)
Suitable for the following vehicles:
YAMAHA
CW50 50 1990-1998
CW50RS 50 1998
CW50RSP 50 1998
CW50RSX 50 1997-1998
CW50T 50 1990
CY50 50 1990
| Item ID | 8434 |
| Content | 1 piece |
| Weight | 205 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
