P&P Parts & Parts GmbH
Gearbox bearing for Yamaha CY90 YE80
Item number PPS01200
Referenz: OEM Herstellernummer
EUR 18.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "94ea74535b2251aec6befe9b85643a38");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "94ea74535b2251aec6befe9b85643a38");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6771581188415', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6771581188415', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

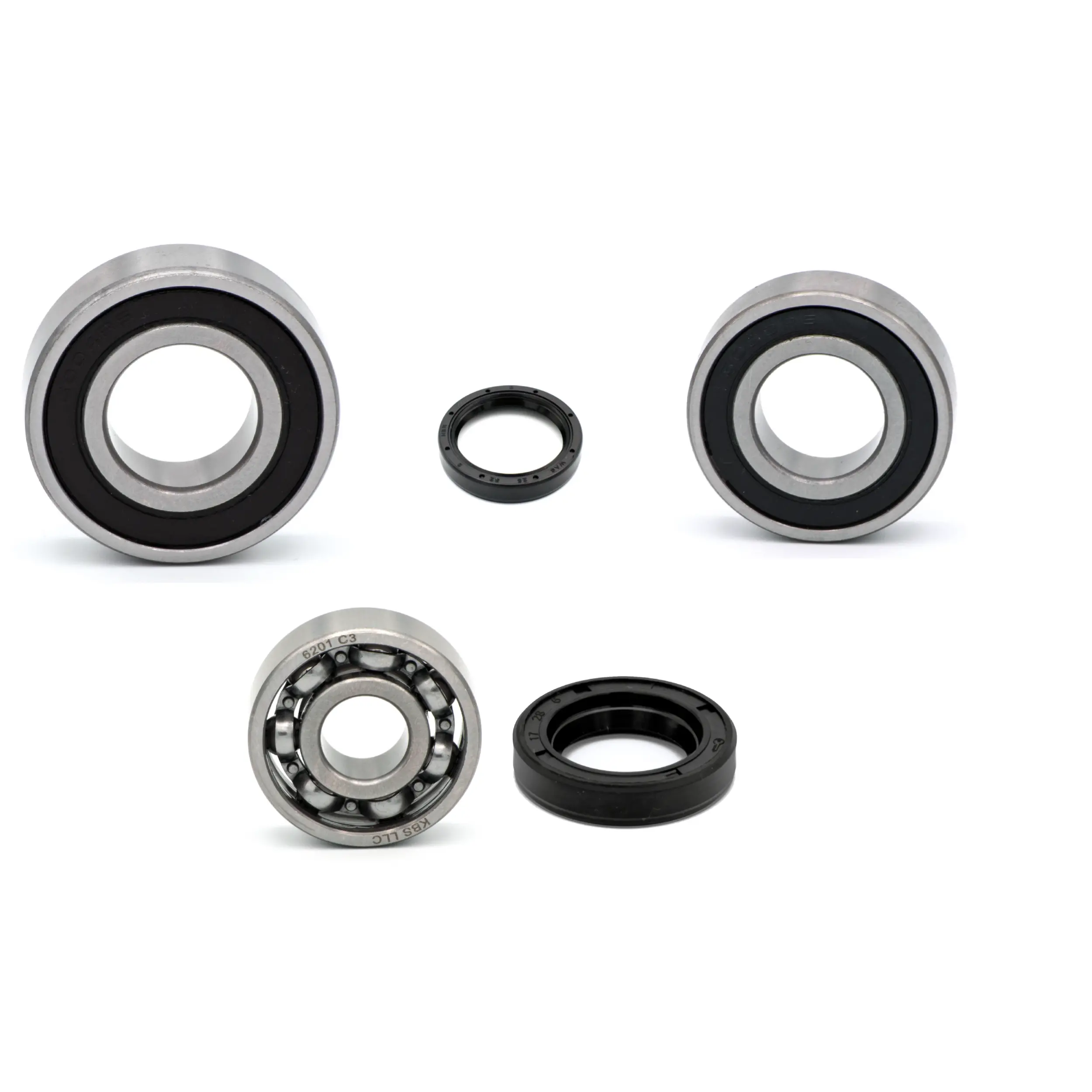

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 93306-20119-00)
1x deep groove ball bearing 17x35x10mm transmission (part numbers: 93306-00315-00, 93306-00302-00)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00425-00, 93306-00443-00)
1x oil seal 17x28x6mm transmission (part numbers: 93102-17342-00)
1x oil seal 25x35x7mm transmission (part numbers: 93102-25270-00)
Suitable for the following vehicles:
YAMAHA
CY90 90 1991
YE80 80 1995
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 12x32x10mm transmission (part numbers: 93306-20119-00)
1x deep groove ball bearing 17x35x10mm transmission (part numbers: 93306-00315-00, 93306-00302-00)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00425-00, 93306-00443-00)
1x oil seal 17x28x6mm transmission (part numbers: 93102-17342-00)
1x oil seal 25x35x7mm transmission (part numbers: 93102-25270-00)
Suitable for the following vehicles:
YAMAHA
CY90 90 1991
YE80 80 1995
| Item ID | 8466 |
| Content | 1 piece |
| Weight | 155 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
