P&P Parts & Parts GmbH
Gearbox bearing for Yamaha DT50-X-LIMIT DT50L-DT50 DT50L-DT50-X-LIMIT-SM DT50R DT50RSM
Item number PPS02186
Referenz: OEM Herstellernummer
EUR 14.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "52944e1a7e906aec8053a3f668ec5d30");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "52944e1a7e906aec8053a3f668ec5d30");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782f61b3781e', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782f61b3781e', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

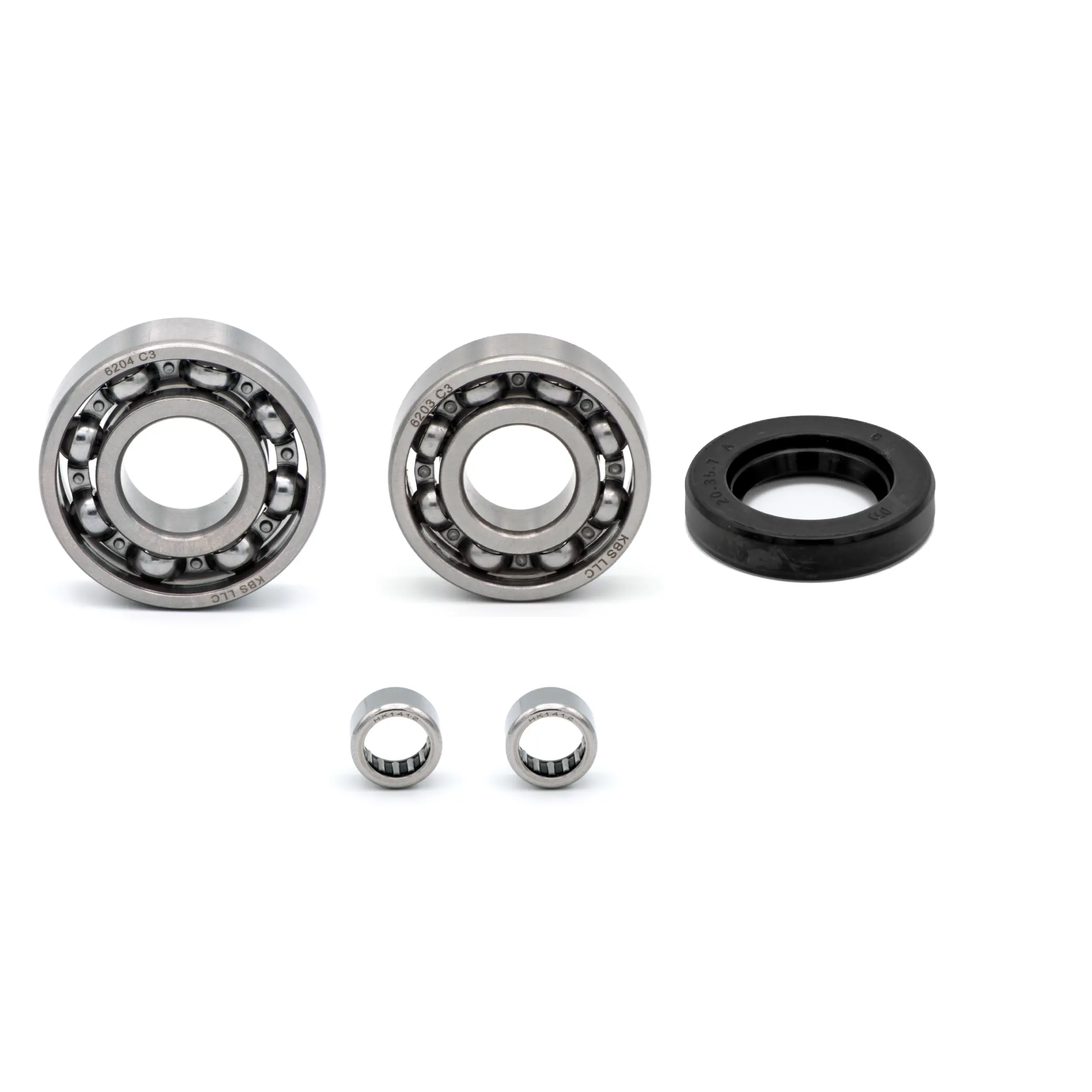

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-203YC-00, 93306-203XC-00, 93306-203Y0)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 93306-204YG-00, 93306-204X1)
1x oil seal 20x35x7mm transmission (part numbers: 93102-20873-00, 93102-20873)
2x drawn cup needle roller bearing 14x20x12mm transmission (part numbers: 93315-21429-00, 93315-214Y5-00, 93315-21429)
Suitable for the following vehicles:
YAMAHA
DT50-X-LIMIT 50 2002
DT50L-DT50 50 2002
DT50L-DT50-X-LIMIT-SM 50 2002
DT50R 50 2002-2011
DT50R-X-LIMIT-ENDURO 50 2003-2011
DT50RSM 50 2002-2009
DT50RSM-DT50X 50 2010-2011
DT50RSM-X-LIMIT-SM 50 2003-2011
TZR50 50 1996-2012
TZR50-TZR-50 50 2010-2011
TZR50-TZR-50-WGP50 50 2012
TZR50-TZR50R 50 2001
TZR50-TZR50R-X-POWER 50 2001-2002
TZR50-X-POWER 50 2003-2011
TZR50R 50 2000
TZR50TZR-50 50 2010
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 93306-203YC-00, 93306-203XC-00, 93306-203Y0)
1x deep groove ball bearing 20x47x14mm transmission (part numbers: 93306-204YG-00, 93306-204X1)
1x oil seal 20x35x7mm transmission (part numbers: 93102-20873-00, 93102-20873)
2x drawn cup needle roller bearing 14x20x12mm transmission (part numbers: 93315-21429-00, 93315-214Y5-00, 93315-21429)
Suitable for the following vehicles:
YAMAHA
DT50-X-LIMIT 50 2002
DT50L-DT50 50 2002
DT50L-DT50-X-LIMIT-SM 50 2002
DT50R 50 2002-2011
DT50R-X-LIMIT-ENDURO 50 2003-2011
DT50RSM 50 2002-2009
DT50RSM-DT50X 50 2010-2011
DT50RSM-X-LIMIT-SM 50 2003-2011
TZR50 50 1996-2012
TZR50-TZR-50 50 2010-2011
TZR50-TZR-50-WGP50 50 2012
TZR50-TZR50R 50 2001
TZR50-TZR50R-X-POWER 50 2001-2002
TZR50-X-POWER 50 2003-2011
TZR50R 50 2000
TZR50TZR-50 50 2010
| Item ID | 11481 |
| Content | 1 piece |
| Weight | 192 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
