P&P Parts & Parts GmbH
Gearbox bearing for Yamaha FZ6-N FZ6-N-FZ6 FZ6-NA FZ6-NAHG FZ6-NAHG-FZ6 FZ6-NHG FZ6-NS
Item number PPS02181
Referenz: OEM Herstellernummer
EUR 22.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a85afd62dbae6d6cadba976d5869333f");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "a85afd62dbae6d6cadba976d5869333f");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782ee94a9798', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782ee94a9798', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

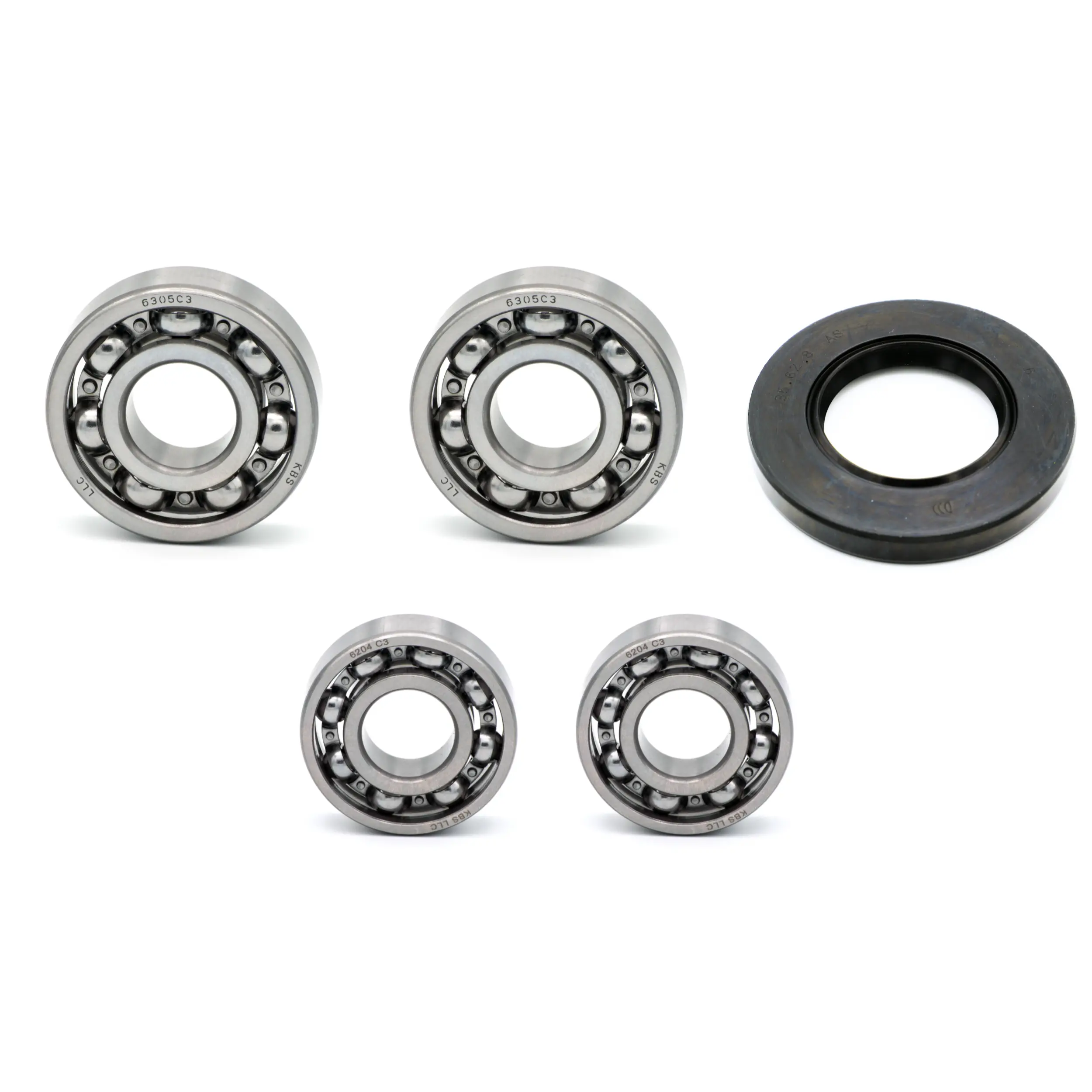

All bearings and oil seals in the gearbox are included in this bearing set:
2x deep groove ball bearing 20x47x14mm transmission (part numbers: 93306-20464-00, 93306-20464)
2x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-30525-00, 93306-30546-00, 93306-30525)
1x oil seal 35x62x8mm transmission (part numbers: 93102-35423-00, 93102-35423)
Suitable for the following vehicles:
YAMAHA
FZ6-N 600 2004-2006
FZ6-N-FZ6 600 2006-2007
FZ6-NA 600 2007
FZ6-NAHG 600 2007-2008
FZ6-NAHG-FZ6 600 2009
FZ6-NHG 600 2007-2009
FZ6-NHG-FZ6 600 2009
FZ6-NHGW 600 2007
FZ6-NHGX 600 2008
FZ6-NS 600 2004-2006
FZ6-NST 600 2005
FZ6-NSV 600 2006
FZ6-NT 600 2005
FZ6-NV 600 2006
FZ6-S 600 2004-2007
FZ6-S-FZ6-SS-FZ6 600 2004
FZ6-S2-FAZER-_ 600 2006
FZ6-SA 600 2006-2007
FZ6-SA-FAZER-_ 600 2006
FZ6-SAHG 600 2007-2008
FZ6-SAHG-FAZER-_ 600 2007-2009
FZ6-SHG 600 2007-2009
FZ6-SHG-FAZER-_ 600 2007-2009
FZ6-SHGX 600 2008
FZ6-SS 600 2004-2006
FZ6-SSV 600 2006
FZ6-ST 600 2005
FZ6-SV 600 2006
YZF-R6 600 1999-2005
YZF-R6-R6 600 2000
YZF-R6L 600 2000
YZF-R6M 600 2000
YZF-R6N 600 2001
YZF-R6P 600 2002
YZF-R6T 600 2005
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
2x deep groove ball bearing 20x47x14mm transmission (part numbers: 93306-20464-00, 93306-20464)
2x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-30525-00, 93306-30546-00, 93306-30525)
1x oil seal 35x62x8mm transmission (part numbers: 93102-35423-00, 93102-35423)
Suitable for the following vehicles:
YAMAHA
FZ6-N 600 2004-2006
FZ6-N-FZ6 600 2006-2007
FZ6-NA 600 2007
FZ6-NAHG 600 2007-2008
FZ6-NAHG-FZ6 600 2009
FZ6-NHG 600 2007-2009
FZ6-NHG-FZ6 600 2009
FZ6-NHGW 600 2007
FZ6-NHGX 600 2008
FZ6-NS 600 2004-2006
FZ6-NST 600 2005
FZ6-NSV 600 2006
FZ6-NT 600 2005
FZ6-NV 600 2006
FZ6-S 600 2004-2007
FZ6-S-FZ6-SS-FZ6 600 2004
FZ6-S2-FAZER-_ 600 2006
FZ6-SA 600 2006-2007
FZ6-SA-FAZER-_ 600 2006
FZ6-SAHG 600 2007-2008
FZ6-SAHG-FAZER-_ 600 2007-2009
FZ6-SHG 600 2007-2009
FZ6-SHG-FAZER-_ 600 2007-2009
FZ6-SHGX 600 2008
FZ6-SS 600 2004-2006
FZ6-SSV 600 2006
FZ6-ST 600 2005
FZ6-SV 600 2006
YZF-R6 600 1999-2005
YZF-R6-R6 600 2000
YZF-R6L 600 2000
YZF-R6M 600 2000
YZF-R6N 600 2001
YZF-R6P 600 2002
YZF-R6T 600 2005
| Item ID | 11476 |
| Content | 1 piece |
| Weight | 702 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
