P&P Parts & Parts GmbH
Gearbox bearing for Yamaha MT03 XT660R XT660X XT660Z XT660Z-TENERE XT660ZA
Item number PPS02202
Referenz: OEM Herstellernummer
EUR 26.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9a64f6956f14dcb35af4dbdd4f323e77");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9a64f6956f14dcb35af4dbdd4f323e77");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('678313c84cfd3', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('678313c84cfd3', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

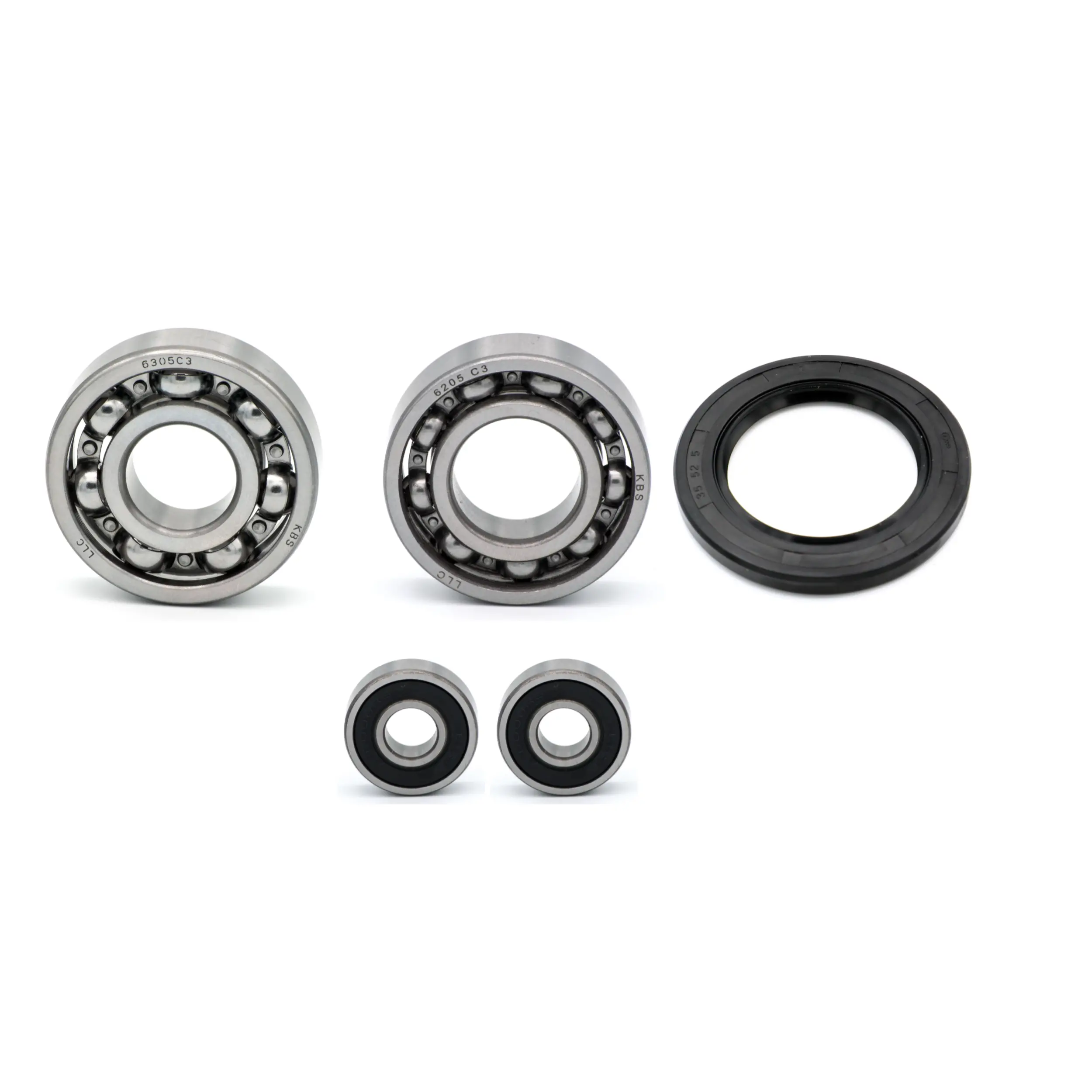

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-205XA)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-305X4)
2x deep groove ball bearing 10x26x8mm transmission (part numbers: 93306-004XL, 93306-004XM)
1x oil seal 35x52x5mm transmission (part numbers: 93102-35368)
Suitable for the following vehicles:
YAMAHA
MT03 660 2006-2012
XT660R 660 2004-2014
XT660X 660 2004-2014
XT660Z 660 2013-2015
XT660Z-TENERE 660 2008-2012
XT660ZA 660 2012-2015
XT660ZA-STENERE 660 2011
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-205XA)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-305X4)
2x deep groove ball bearing 10x26x8mm transmission (part numbers: 93306-004XL, 93306-004XM)
1x oil seal 35x52x5mm transmission (part numbers: 93102-35368)
Suitable for the following vehicles:
YAMAHA
MT03 660 2006-2012
XT660R 660 2004-2014
XT660X 660 2004-2014
XT660Z 660 2013-2015
XT660Z-TENERE 660 2008-2012
XT660ZA 660 2012-2015
XT660ZA-STENERE 660 2011
| Item ID | 11497 |
| Content | 1 piece |
| Weight | 403 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
