Gearbox bearing for Yamaha XP500 XP500-TMAX XP500A XP500A-TMAX XP530-A XP530D-A XP560D
Item number PPS01223
Referenz: OEM Herstellernummer
EUR 36.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "257156b0aef66612e6b8bb2c2df9b47e");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "257156b0aef66612e6b8bb2c2df9b47e");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6781647a0ec7b', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6781647a0ec7b', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

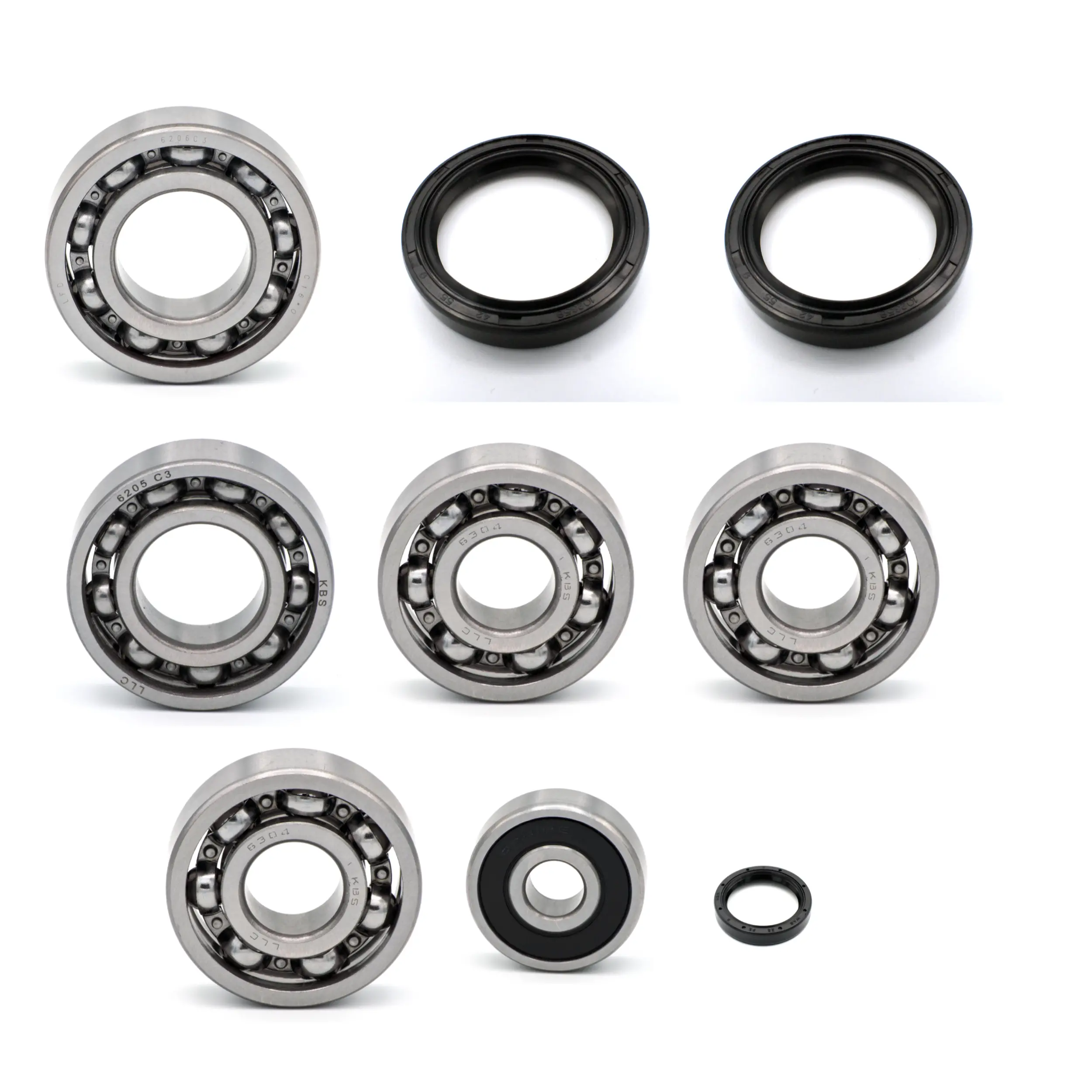

All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-205A8)
1x deep groove ball bearing 30x62x16mm transmission (part numbers: 93306-20651)
3x deep groove ball bearing 20x52x15mm transmission (part numbers: 93306-30427)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: 93306-30102)
1x oil seal 25x35x7mm transmission (part numbers: 93102-25064)
2x oil seal 42x55x9mm transmission (part numbers: 93102-42004)
Suitable for the following vehicles:
YAMAHA
XP500 500 2010-2015
XP500 530 2012-2016
XP500-TMAX 500 2009-2011
XP500A 500 2010-2015
XP500A 530 2012-2016
XP500A-TMAX 500 2009-2011
XP530-A 530 2017-2019
XP530D-A 530 2017-2019
XP530E-A 530 2017-2018
XP560D 560 2021
XP560D-A 560 2020-2021
XP560E-A 560 2020
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-205A8)
1x deep groove ball bearing 30x62x16mm transmission (part numbers: 93306-20651)
3x deep groove ball bearing 20x52x15mm transmission (part numbers: 93306-30427)
1x deep groove ball bearing 12x37x12mm transmission (part numbers: 93306-30102)
1x oil seal 25x35x7mm transmission (part numbers: 93102-25064)
2x oil seal 42x55x9mm transmission (part numbers: 93102-42004)
Suitable for the following vehicles:
YAMAHA
XP500 500 2010-2015
XP500 530 2012-2016
XP500-TMAX 500 2009-2011
XP500A 500 2010-2015
XP500A 530 2012-2016
XP500A-TMAX 500 2009-2011
XP530-A 530 2017-2019
XP530D-A 530 2017-2019
XP530E-A 530 2017-2018
XP560D 560 2021
XP560D-A 560 2020-2021
XP560E-A 560 2020
| Item ID | 8490 |
| Content | 1 piece |
| Weight | 825 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
