P&P Parts & Parts GmbH
Gearbox bearing for Yamaha XV400 XV500 XV500S XV535 XV535-20KW- XV535-34KW- XV535-FLAT-
Item number PPS02229
Referenz: OEM Herstellernummer
EUR 13.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "05dc8780ead9cb390c418025858636a3");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "05dc8780ead9cb390c418025858636a3");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('6782ea00bda59', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('6782ea00bda59', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

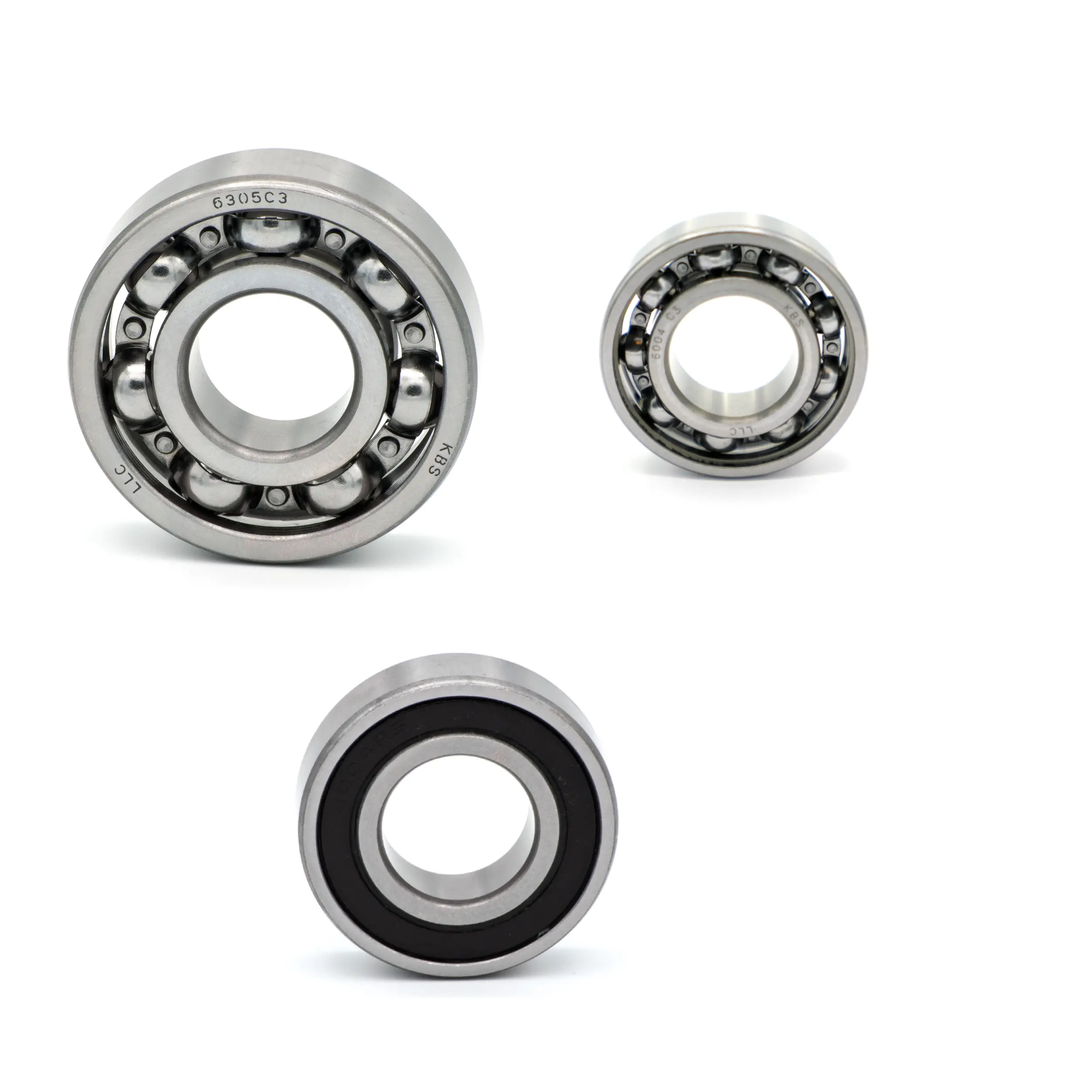

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00426-00, 93306-00401-00)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-30525-00)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00428-00)
Suitable for the following vehicles:
YAMAHA
XV400 400 1994
XV500 500 1987-1998
XV500S 500 1995-1996
XV535 535 1989-2001
XV535-20KW- 535 1991-1993
XV535-34KW- 535 1992-1993
XV535-FLAT- 535 1992-1996
XV535-UP- 535 1992-1996
XV535-VIRAGO 535 1989-1996
XV535H-340KW- 535 1989
XV535N-200KW- 535 1989
XV535S 535 1994-1997
XV535S-FLAT- 535 1994-1996
XV535S-UP- 535 1995-1996
XV535S-XV535SF-VIRAGO-535 535 1994
XV535SA 535 1997
XV535SE 535 1988
XV535SE-199KW 535 1988
XV535SE-34KW- 535 1988
XVS650 650 1997-2002
XVS650-DRAGSTAR 650 1997-2001
XVS650A 650 1998-2006
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00426-00, 93306-00401-00)
1x deep groove ball bearing 25x62x17mm transmission (part numbers: 93306-30525-00)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00428-00)
Suitable for the following vehicles:
YAMAHA
XV400 400 1994
XV500 500 1987-1998
XV500S 500 1995-1996
XV535 535 1989-2001
XV535-20KW- 535 1991-1993
XV535-34KW- 535 1992-1993
XV535-FLAT- 535 1992-1996
XV535-UP- 535 1992-1996
XV535-VIRAGO 535 1989-1996
XV535H-340KW- 535 1989
XV535N-200KW- 535 1989
XV535S 535 1994-1997
XV535S-FLAT- 535 1994-1996
XV535S-UP- 535 1995-1996
XV535S-XV535SF-VIRAGO-535 535 1994
XV535SA 535 1997
XV535SE 535 1988
XV535SE-199KW 535 1988
XV535SE-34KW- 535 1988
XVS650 650 1997-2002
XVS650-DRAGSTAR 650 1997-2001
XVS650A 650 1998-2006
| Item ID | 11524 |
| Content | 1 piece |
| Weight | 374 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
