P&P Parts & Parts GmbH
Gearbox bearing for Yamaha YFM700R YFM700R-SE YFM700RYFM700RE YFM700RYFM700RF YFM70RSBK
Item number PPS02590
Referenz: OEM Herstellernummer
EUR 22.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "d192134f97d940c3869fdd50ac7f805a");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "d192134f97d940c3869fdd50ac7f805a");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('678310901ce6e', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('678310901ce6e', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

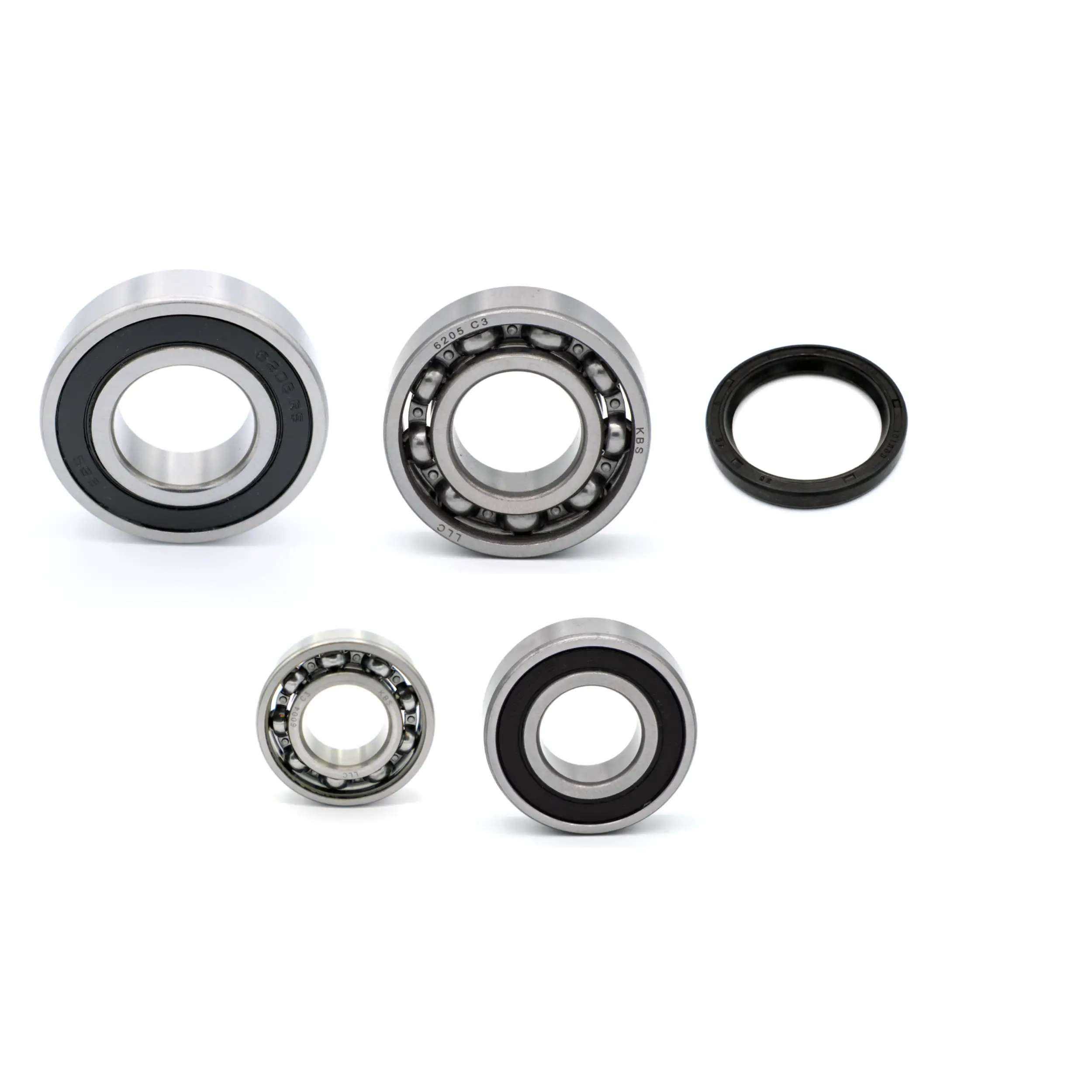

High quality gearbox bearing set with oil seals for your gearbox
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00415)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-20501)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00431)
1x deep groove ball bearing 30x62x16mm transmission (part numbers: 93306-27803)
1x oil seal 35x45x6mm transmission (part numbers: 93102-35393)
Suitable for the following vehicles:
YAMAHA
YFM700R 700 2007-2021
YFM700R-SE 700 2010
YFM700RYFM700RE 700 2014
YFM700RYFM700RF 700 2015
YFM700RYFM700RSE 700 2014
YFM700RYFM700RSF 700 2015
YFM700RYFM700RV 700 2006
YFM700RYFM70RSBG 700 2016
YFM700RYFM70RSPX 700 2008
YFM700RYFM70RSSG 700 2016
YFM700RYFM70RW 700 2007
YFM700RYFM70RY 700 2009
YFM700RYFM7RD 700 2013
YFM700RYFM7RSED 700 2013
YFM70RSBK 700 2019
YFM70RSSK 700 2019
YFM70RSXK 700 2019
This repair kit in OEM quality includes all ball bearings and oil seals that are installed in the transmission. The ball bearings come with increased C3 clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
All bearings and oil seals in the gearbox are included in this bearing set:
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00415)
1x deep groove ball bearing 25x52x15mm transmission (part numbers: 93306-20501)
1x deep groove ball bearing 20x42x12mm transmission (part numbers: 93306-00431)
1x deep groove ball bearing 30x62x16mm transmission (part numbers: 93306-27803)
1x oil seal 35x45x6mm transmission (part numbers: 93102-35393)
Suitable for the following vehicles:
YAMAHA
YFM700R 700 2007-2021
YFM700R-SE 700 2010
YFM700RYFM700RE 700 2014
YFM700RYFM700RF 700 2015
YFM700RYFM700RSE 700 2014
YFM700RYFM700RSF 700 2015
YFM700RYFM700RV 700 2006
YFM700RYFM70RSBG 700 2016
YFM700RYFM70RSPX 700 2008
YFM700RYFM70RSSG 700 2016
YFM700RYFM70RW 700 2007
YFM700RYFM70RY 700 2009
YFM700RYFM7RD 700 2013
YFM700RYFM7RSED 700 2013
YFM70RSBK 700 2019
YFM70RSSK 700 2019
YFM70RSXK 700 2019
| Item ID | 12079 |
| Content | 1 piece |
| Weight | 453 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
