Main shaft gearbox bearing for KTM EXC MXC SX SXS
Item number PPS00876
Referenz: OEM Herstellernummer
EUR 52.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1b0be80079c61a4defaa78a56b7684e6");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "1b0be80079c61a4defaa78a56b7684e6");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('67709759c86a1', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('67709759c86a1', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for the main shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

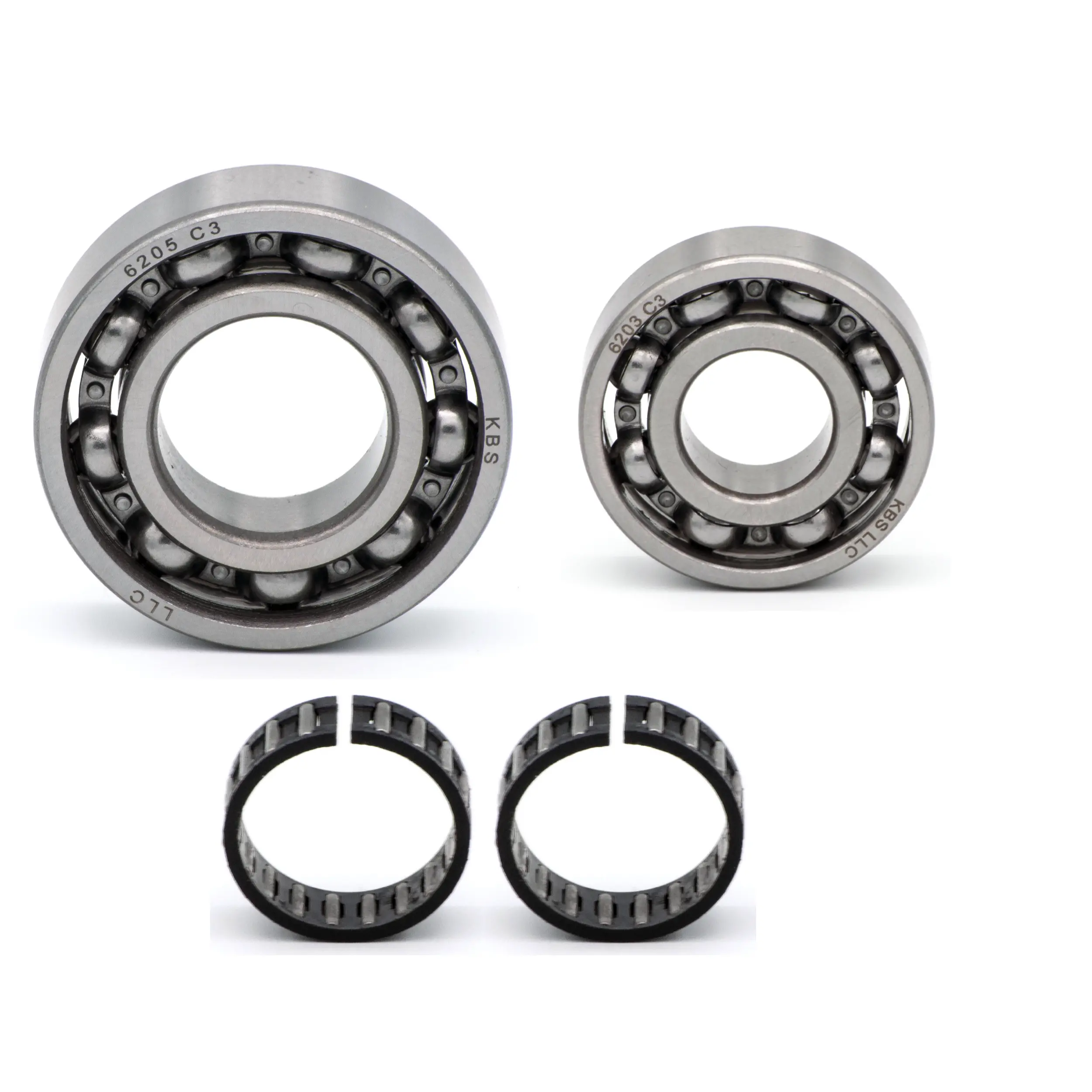

In this bearing set are included all bearings and oil seals in the gearbox of the main shaft:
2x needle roller and cage assembly needle bearing 22x26x13mm main shaft (part numbers: 56533099000)
1x deep groove ball bearing 17x40x12mm main shaft (part numbers: 0625062034)
1x deep groove ball bearing 25x52x15mm main shaft (part numbers: 0625062054)
Suitable for the following vehicles:
KTM
EXC 250 2001
EXC 400 2000-2003
EXC 450 2003
EXC 520 2001-2002
EXC 525 2003
MXC 400 2001-2002
MXC 450 2003
MXC 520 2001-2002
MXC 525 2003
SX 400 2001-2002
SXS 540 2001-2002
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the main shaft:
2x needle roller and cage assembly needle bearing 22x26x13mm main shaft (part numbers: 56533099000)
1x deep groove ball bearing 17x40x12mm main shaft (part numbers: 0625062034)
1x deep groove ball bearing 25x52x15mm main shaft (part numbers: 0625062054)
Suitable for the following vehicles:
KTM
EXC 250 2001
EXC 400 2000-2003
EXC 450 2003
EXC 520 2001-2002
EXC 525 2003
MXC 400 2001-2002
MXC 450 2003
MXC 520 2001-2002
MXC 525 2003
SX 400 2001-2002
SXS 540 2001-2002
| Item ID | 7373 |
| Content | 1 piece |
| Weight | 190 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
