P&P Parts & Parts GmbH
Secondary shaft gearbox bearing for KTM EXC EXC-F FREERIDE RC SX-F XC XC-F XCF-W
Item number PPS00349
Referenz: OEM Herstellernummer
EUR 74.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9a57077a45b1451a3ed495e72175b1e6");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9a57077a45b1451a3ed495e72175b1e6");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('677095d617043', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('677095d617043', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

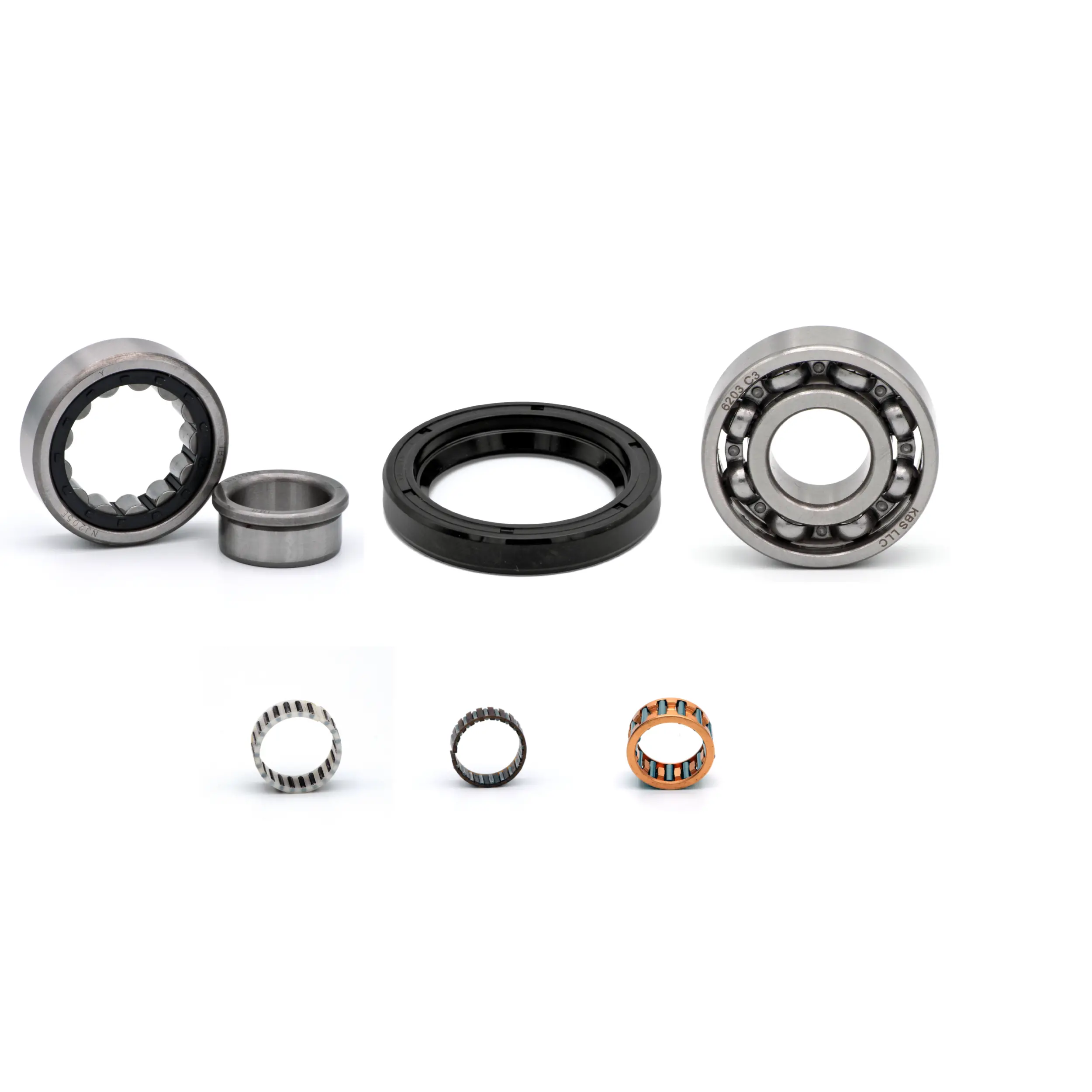

High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 20x26x12mm secondary shaft (part numbers: 0405202612)
1x needle roller and cage assembly needle bearing 24x28x11,9mm secondary shaft (part numbers: 0405242812)
1x needle roller and cage assembly bearing 22x26x10mm secondary shaft (part numbers: 0405222611)
1x cylindrical roller bearing 25x52x15mm secondary shaft (part numbers: 49030023000)
1x deep groove ball bearing 17x40x12mm secondary shaft (part numbers: 0625062035)
1x oil seal 32x45x7mm secondary shaft (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 250 2017-2021
EXC 300 2017-2021
EXC-F 250 2014-2021
EXC-F 350 2012-2021
FREERIDE 250 2018-2020
FREERIDE 350 2012-2017
RC 250 2013-2014
SX-F 250 2013-2015
XC 250 2017-2021
XC 300 2017-2021
XC-F 250 2013-2021
XC-F 350 2011-2021
XCF-W 250 2014-2016
XCF-W 350 2012-2016
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 20x26x12mm secondary shaft (part numbers: 0405202612)
1x needle roller and cage assembly needle bearing 24x28x11,9mm secondary shaft (part numbers: 0405242812)
1x needle roller and cage assembly bearing 22x26x10mm secondary shaft (part numbers: 0405222611)
1x cylindrical roller bearing 25x52x15mm secondary shaft (part numbers: 49030023000)
1x deep groove ball bearing 17x40x12mm secondary shaft (part numbers: 0625062035)
1x oil seal 32x45x7mm secondary shaft (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 250 2017-2021
EXC 300 2017-2021
EXC-F 250 2014-2021
EXC-F 350 2012-2021
FREERIDE 250 2018-2020
FREERIDE 350 2012-2017
RC 250 2013-2014
SX-F 250 2013-2015
XC 250 2017-2021
XC 300 2017-2021
XC-F 250 2013-2021
XC-F 350 2011-2021
XCF-W 250 2014-2016
XCF-W 350 2012-2016
| Item ID | 5162 |
| Content | 1 piece |
| Weight | 244 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
