P&P Parts & Parts GmbH
Secondary shaft gearbox bearing for KTM EXC EXC-F MXC RALLY SMR SMS SX SX-F SXS XC XC-F
Item number PPS03230
Referenz: OEM Herstellernummer
EUR 107.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9c70518cfb56b5362eb9f6fd73540f42");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "9c70518cfb56b5362eb9f6fd73540f42");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('677b97e9c16f2', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('677b97e9c16f2', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

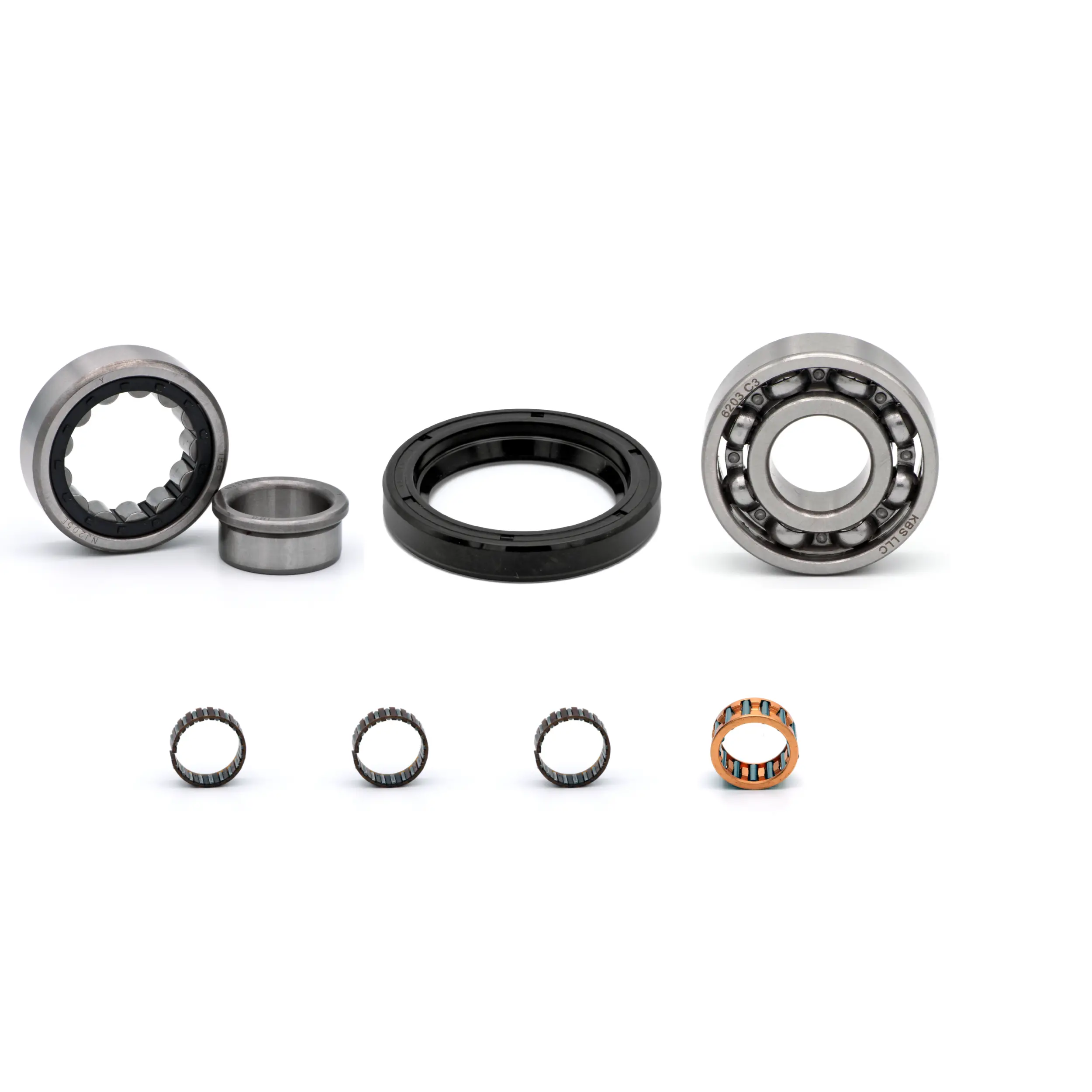

High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 0625062034)
3x needle roller and cage assembly needle bearing 22x26x10mm transmission (part numbers: 0405222611)
1x needle roller and cage assembly 20x26x12mm transmission (part numbers: 0405202612)
1x cylindrical roller bearing 25x52x15mm transmission (part numbers: 49030023000)
1x oil seal 32x45x7mm transmission (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 250 2001-2006
EXC 400 2000-2011
EXC 450 2003-2016
EXC 500 2012-2016
EXC 520 2001-2002
EXC 525 2003-2007
EXC 530 2008-2011
EXC-F 250 2002-2003
EXC-F 450 2017-2021
EXC-F 500 2017-2021
MXC 400 2001-2002
MXC 450 2003-2004
MXC 520 2001-2002
MXC 525 2003-2004
RALLY 450 2015-2020
SMR 450 2004-2021
SMR 525 2004-2005
SMR 560 2006-2007
SMS 450 2004
SX 400 2000-2002
SX 520 2001
SX 525 2003-2004
SX-F 450 2003-2021
SXS 450 2003-2006
SXS 540 2001-2006
XC 450 2004-2007
XC 525 2006-2007
XC-F 450 2013-2021
XC-F 500 2020-2021
XC-W 400 2007-2010
XC-W 450 2007-2016
XC-W 500 2012-2016
XC-W 525 2007
XC-W 530 2009-2011
XCR-W 450 2008
XCR-W 530 2008
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x deep groove ball bearing 17x40x12mm transmission (part numbers: 0625062034)
3x needle roller and cage assembly needle bearing 22x26x10mm transmission (part numbers: 0405222611)
1x needle roller and cage assembly 20x26x12mm transmission (part numbers: 0405202612)
1x cylindrical roller bearing 25x52x15mm transmission (part numbers: 49030023000)
1x oil seal 32x45x7mm transmission (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 250 2001-2006
EXC 400 2000-2011
EXC 450 2003-2016
EXC 500 2012-2016
EXC 520 2001-2002
EXC 525 2003-2007
EXC 530 2008-2011
EXC-F 250 2002-2003
EXC-F 450 2017-2021
EXC-F 500 2017-2021
MXC 400 2001-2002
MXC 450 2003-2004
MXC 520 2001-2002
MXC 525 2003-2004
RALLY 450 2015-2020
SMR 450 2004-2021
SMR 525 2004-2005
SMR 560 2006-2007
SMS 450 2004
SX 400 2000-2002
SX 520 2001
SX 525 2003-2004
SX-F 450 2003-2021
SXS 450 2003-2006
SXS 540 2001-2006
XC 450 2004-2007
XC 525 2006-2007
XC-F 450 2013-2021
XC-F 500 2020-2021
XC-W 400 2007-2010
XC-W 450 2007-2016
XC-W 500 2012-2016
XC-W 525 2007
XC-W 530 2009-2011
XCR-W 450 2008
XCR-W 530 2008
| Item ID | 13772 |
| Content | 1 piece |
| Weight | 246 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
