P&P Parts & Parts GmbH
Secondary shaft gearbox bearing for KTM EXC SX XC
Item number PPS01803
Referenz: OEM Herstellernummer
EUR 104.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "ccb700434e78b3119016e9167a14679b");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "ccb700434e78b3119016e9167a14679b");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('67708b56a8bc2', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('67708b56a8bc2', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

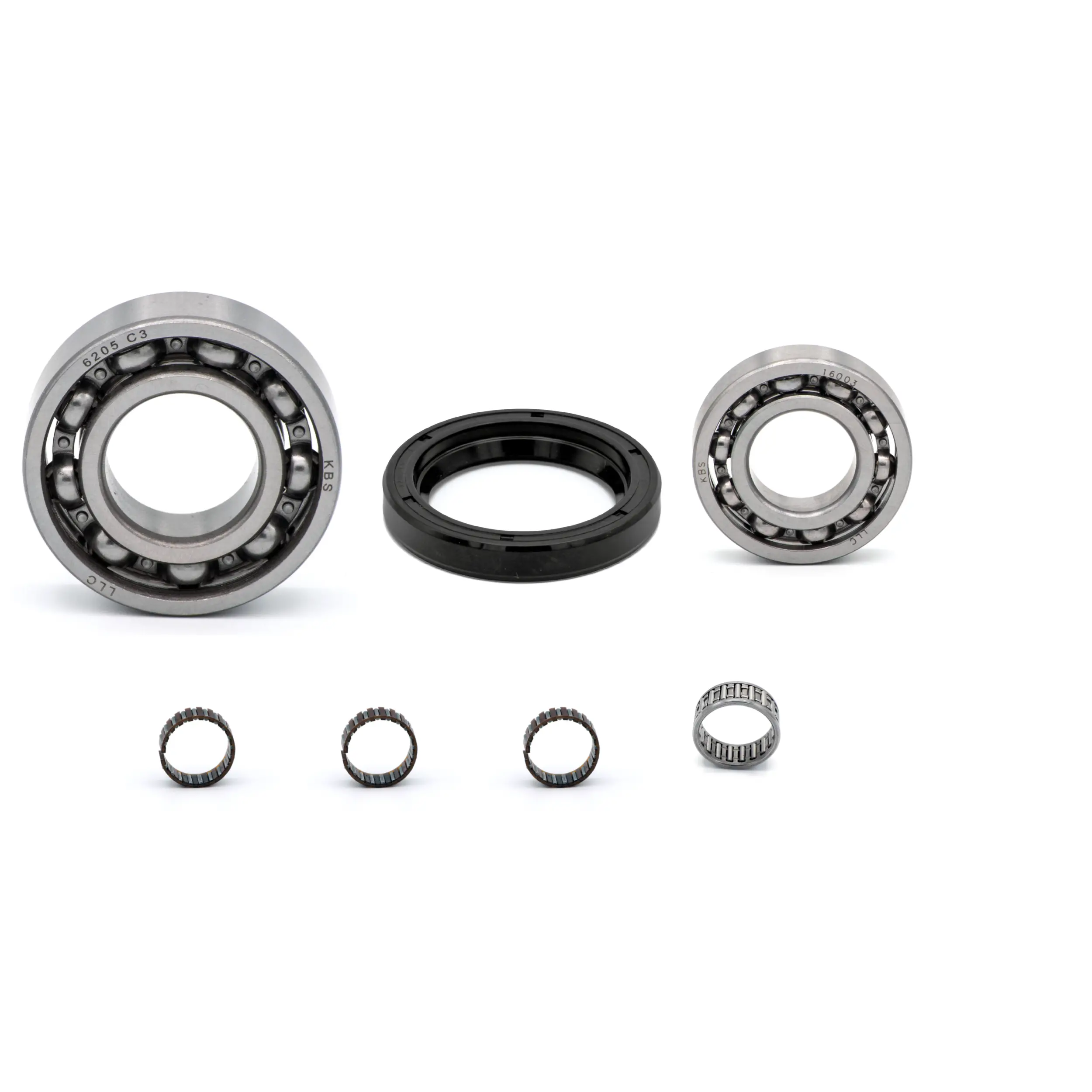

High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
3x needle roller and cage assembly needle bearing 22x26x10mm countershaft (part numbers: 0405222611)
1x needle roller and cage assembly 20x24x10mm (part numbers: 0405202410)
1x deep groove ball bearing 17x35x8mm countershaft (part numbers: 0625160031)
1x deep groove ball bearing 25x52x15mm countershaft (part numbers: 0625062054)
1x oil seal 32x45x7mm countershaft (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 150 2020-2021
SX 125 2016-2021
SX 150 2016-2021
XC 125 2017-2021
XC 150 2017-2021
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
3x needle roller and cage assembly needle bearing 22x26x10mm countershaft (part numbers: 0405222611)
1x needle roller and cage assembly 20x24x10mm (part numbers: 0405202410)
1x deep groove ball bearing 17x35x8mm countershaft (part numbers: 0625160031)
1x deep groove ball bearing 25x52x15mm countershaft (part numbers: 0625062054)
1x oil seal 32x45x7mm countershaft (part numbers: 0760324571)
Suitable for the following vehicles:
KTM
EXC 150 2020-2021
SX 125 2016-2021
SX 150 2016-2021
XC 125 2017-2021
XC 150 2017-2021
| Item ID | 10694 |
| Content | 1 piece |
| Weight | 171 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
Damit die Montage problemlos abläuft, haben wir für Dich auf dieser Unterseite einige Montagehinweise zusammengefasst.
Wir versprechen dir den bestmöglichen Service, damit du den für dich passenden Artikel findest!
Dazu stehen wir dir vor dem Kauf für etwaige Fragen zur Verfügung. Schreib uns einfach, wenn du dir unser bist, ob etwas bei deinem Fahrzeug- oder Motortyp passt.
Auch nach dem Erhalt der Ware helfen wir dir gerne weiter. Wenn etwas mal nicht passen sollte, nehme gerne Kontakt auf und wir finden gemeinsam eine unkomplizierte Lösung
