P&P Parts & Parts GmbH
Secondary shaft gearbox bearing
Item number PPS07260
Referenz: OEM Herstellernummer
EUR 84.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "673438fda979089969e674032b1f979a");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "673438fda979089969e674032b1f979a");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fcc74a3d36', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fcc74a3d36', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

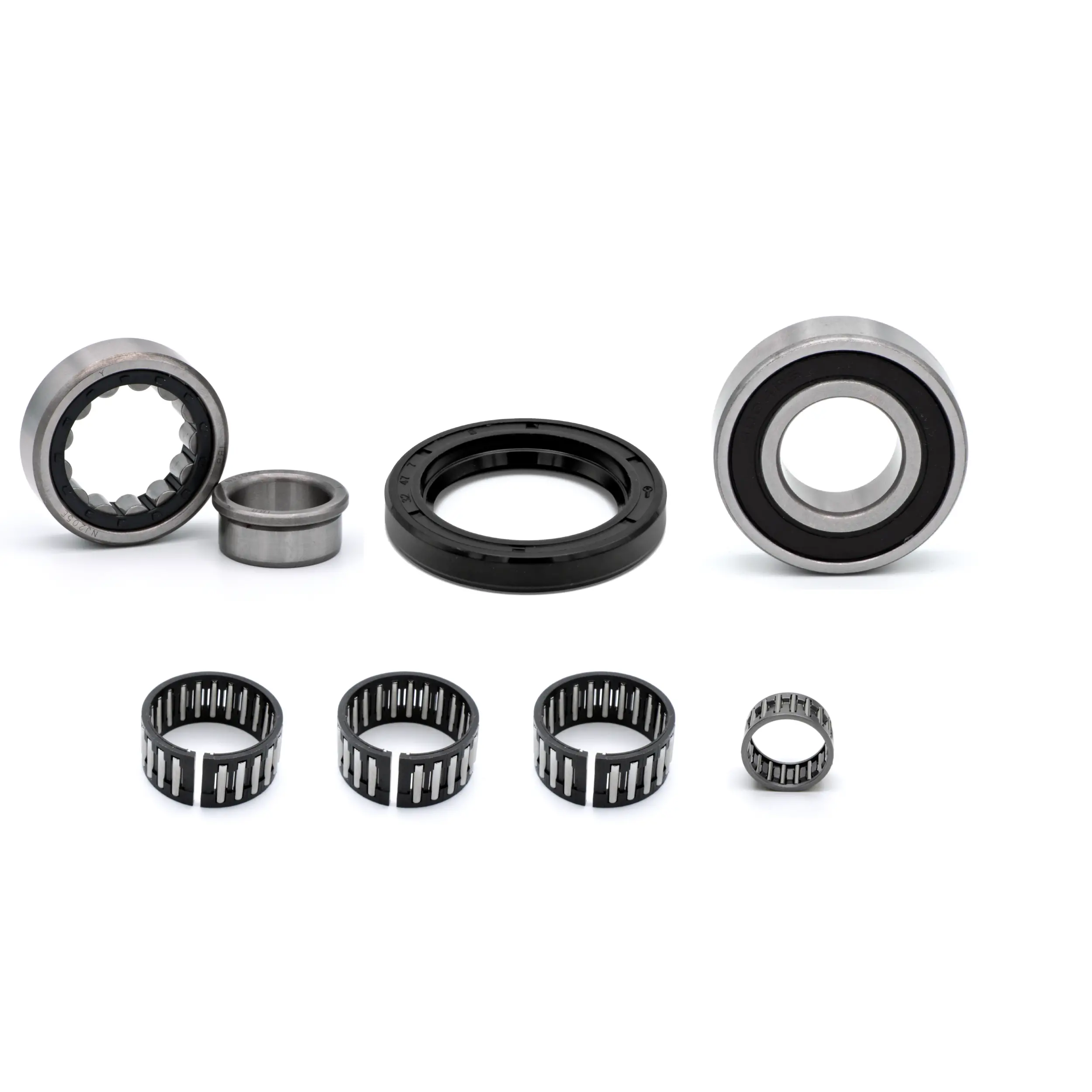

High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 22x26x13mm countershaft (part numbers: 56533098000)
1x deep groove ball bearing 20x42x12mm countershaft (part numbers: 0625060044)
1x oil seal 32x47x7mm countershaft (part numbers: 0760324773)
1x cylindrical roller bearing 25x52x15mm countershaft (part numbers: 49030023100)
3x needle roller and cage assembly bearing 24x28x13mm countershaft (part numbers: 0405242813G)
Suitable for the following vehicles:
KTM
DUKE 690 2016-2019
ENDURO 690 2019-2021
SMC 690 2019-2021
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 22x26x13mm countershaft (part numbers: 56533098000)
1x deep groove ball bearing 20x42x12mm countershaft (part numbers: 0625060044)
1x oil seal 32x47x7mm countershaft (part numbers: 0760324773)
1x cylindrical roller bearing 25x52x15mm countershaft (part numbers: 49030023100)
3x needle roller and cage assembly bearing 24x28x13mm countershaft (part numbers: 0405242813G)
Suitable for the following vehicles:
KTM
DUKE 690 2016-2019
ENDURO 690 2019-2021
SMC 690 2019-2021
| Item ID | 6581 |
| Content | 1 piece |
| Weight | 263 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
