P&P Parts & Parts GmbH
Secondary shaft gearbox bearing
Item number PPS00730
Referenz: OEM Herstellernummer
EUR 120.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "f96ec902079b2a2271944e7c31f071c7");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "f96ec902079b2a2271944e7c31f071c7");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fd0445c1a2', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fd0445c1a2', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h
High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).

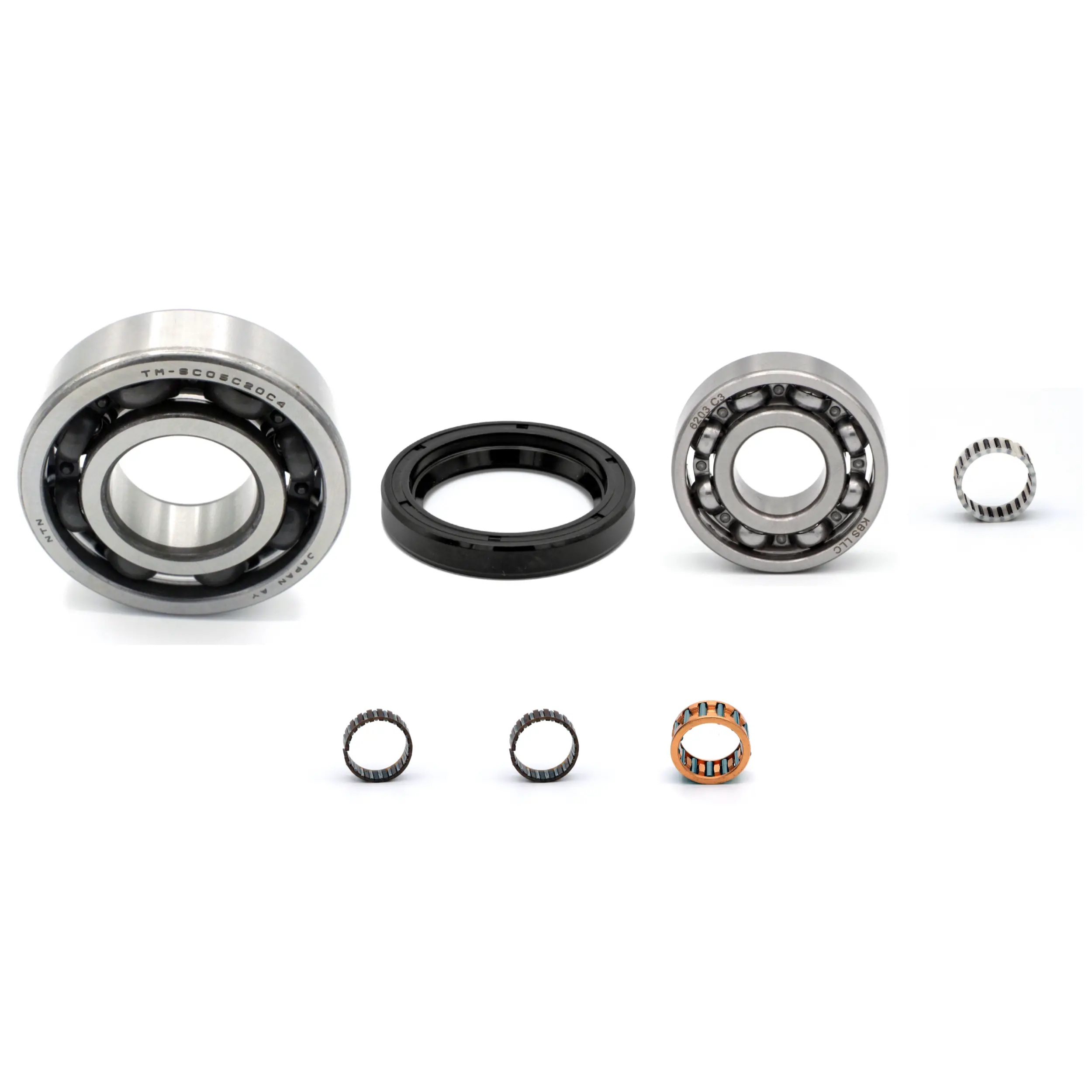

In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 24x28x11,9mm countershaft (part numbers: 0405242812)
2x needle roller and cage assembly needle bearing 22x26x10mm (part numbers: 0405222611)
1x needle roller and cage assembly 20x26x12mm (part numbers: 0405202612)
1x deep groove ball bearing 25x57x16mm countershaft (part numbers: 54833025000)
1x oil seal 32x45x7mm countershaft (part numbers: 0760324571)
1x deep groove ball bearing 17x40x12mm countershaft (part numbers: 0625062035)
Suitable for the following vehicles:
KTM
EXC 250 2012-2016
EXC 300 2012-2016
FREERIDE 250 2014-2017
XC 250 2012-2016
XC 300 2012-2016
XC-W 250 2012-2016
XC-W 300 2012-2016
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x needle roller and cage assembly needle bearing 24x28x11,9mm countershaft (part numbers: 0405242812)
2x needle roller and cage assembly needle bearing 22x26x10mm (part numbers: 0405222611)
1x needle roller and cage assembly 20x26x12mm (part numbers: 0405202612)
1x deep groove ball bearing 25x57x16mm countershaft (part numbers: 54833025000)
1x oil seal 32x45x7mm countershaft (part numbers: 0760324571)
1x deep groove ball bearing 17x40x12mm countershaft (part numbers: 0625062035)
Suitable for the following vehicles:
KTM
EXC 250 2012-2016
EXC 300 2012-2016
FREERIDE 250 2014-2017
XC 250 2012-2016
XC 300 2012-2016
XC-W 250 2012-2016
XC-W 300 2012-2016
| Item ID | 6938 |
| Content | 1 piece |
| Weight | 281 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
