P&P Parts & Parts GmbH
Secondary shaft gearbox bearing
Item number PPS01148
Referenz: OEM Herstellernummer
EUR 129.99
*
Content
1 piece
if(!document.getElementById('paypal-smart-payment-script'))
{
var script = document.createElement("script");
script.type = "module";
script.id = "paypal-smart-payment-script";
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aeb26dcc8894bef4a1f1e77ff617d1a8");
document.body.appendChild(script);
} else {
var script = document.getElementById('paypal-smart-payment-script');
script.src = "https://cdn02.plentymarkets.com/hlf3l5xy0rc8/plugin/1/paypal/js/smartPaymentScript.min.js";
script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw");
script.setAttribute("data-user-id-token", "");
script.setAttribute("data-merchant-id", "DYYQ57SEESWQ2");
script.setAttribute("data-currency", "EUR");
script.setAttribute("data-append-trailing-slash", "true");
script.setAttribute("data-locale", "en_GB");
script.setAttribute("sandbox", "");
script.setAttribute("googlePayComponent", 0);
script.setAttribute("applePayComponent", 0);
script.setAttribute("logToken", "aeb26dcc8894bef4a1f1e77ff617d1a8");
}
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') {
document.addEventListener('payPalScriptInitialized', () => {
renderPayPalButtons('676fccf13dc4d', 'paypal', 'buynow', 'rect', 'blue');
});
} else {
renderPayPalButtons('676fccf13dc4d', 'paypal', 'buynow', 'rect', 'blue');
}
* Incl. VAT excl. Shipping
Ready for shipping, delivery in 48h

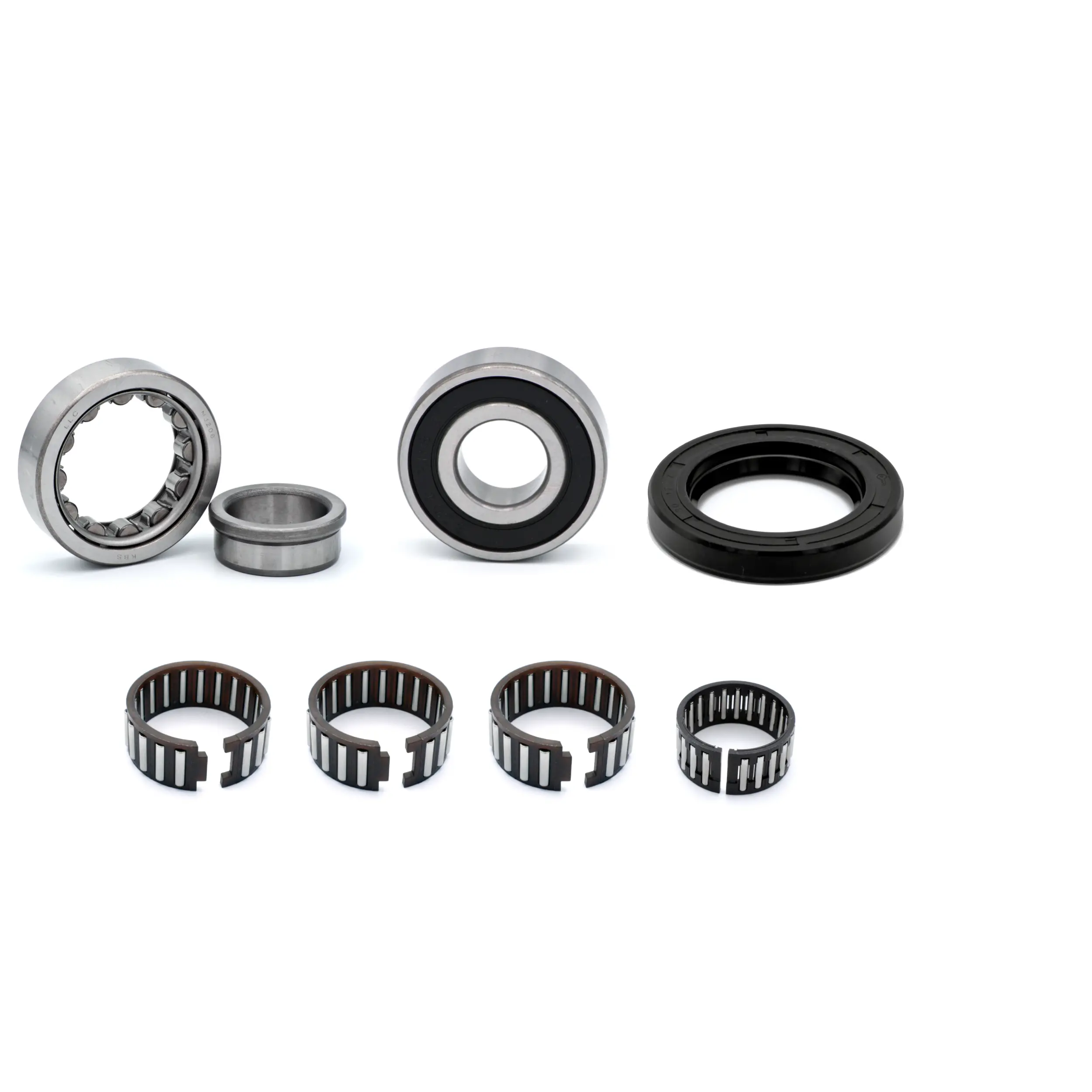

High quality gearbox bearing set with oil seals for secondary shaft
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x deep groove ball bearing 20x47x14mm countershaft (part numbers: 0625062040)
1x needle roller and cage assembly bearing 24x28x13mm (part numbers: 0405242813)
3x needle roller and cage assembly 26x31x13mm (part numbers: 0405263113)
1x cylindrical roller bearing 30x62x16mm layshaft (part numbers: 50330082000)
1x oil seal 30x47x7mm (part numbers: 0760304772)
Suitable for the following vehicles:
KTM
ADVENTURE 950 2003-2006
ADVENTURE 990 2006-2013
SUPERDUKE 990 2005-2013
SUPERMOTO 950 2005-2008
SUPERMOTO 990 2008-2013
SUPER_ENDURO 950 2006-2009
This OEM quality repair kit includes all ball bearings and oil seals installed in the transmission. The ball bearings come with increased C3 bearing clearance, which allows them to withstand high loads.
Included is the ball bearing for the gearbox input, which sits in the gearbox cover and the ball bearings that support the individual gearbox shafts. Also included is the wheel bearing, which is protected against contamination by the rubber seal on both sides. The set also includes the oil seals for the gearbox input (gearbox cover) and gearbox output (wheel shaft).
In this bearing set are included all bearings and oil seals in the gearbox of the secondary shaft:
1x deep groove ball bearing 20x47x14mm countershaft (part numbers: 0625062040)
1x needle roller and cage assembly bearing 24x28x13mm (part numbers: 0405242813)
3x needle roller and cage assembly 26x31x13mm (part numbers: 0405263113)
1x cylindrical roller bearing 30x62x16mm layshaft (part numbers: 50330082000)
1x oil seal 30x47x7mm (part numbers: 0760304772)
Suitable for the following vehicles:
KTM
ADVENTURE 950 2003-2006
ADVENTURE 990 2006-2013
SUPERDUKE 990 2005-2013
SUPERMOTO 950 2005-2008
SUPERMOTO 990 2008-2013
SUPER_ENDURO 950 2006-2009
| Item ID | 8412 |
| Content | 1 piece |
| Weight | 363 g |
| Dimensions | 100×75×25mm |
| Manufacturing country | Germany |
| Condition | New |
| Manufacturer | P&P Parts & Parts GmbH |
